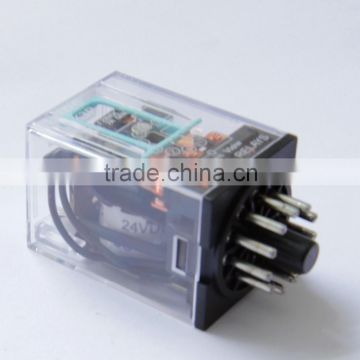

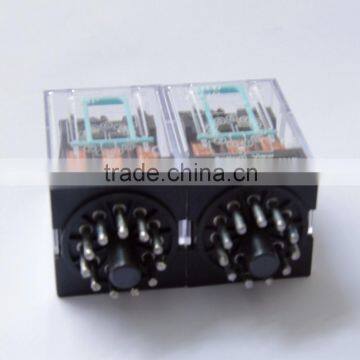

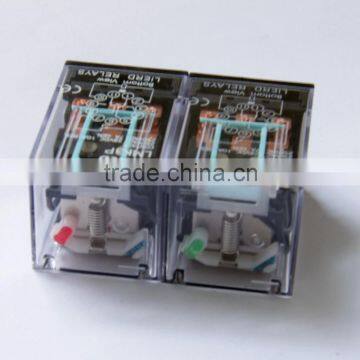

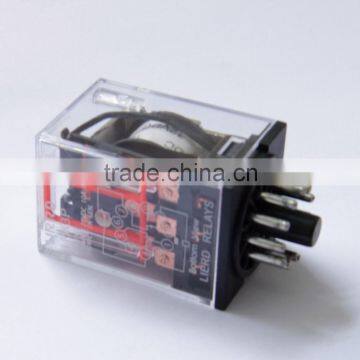

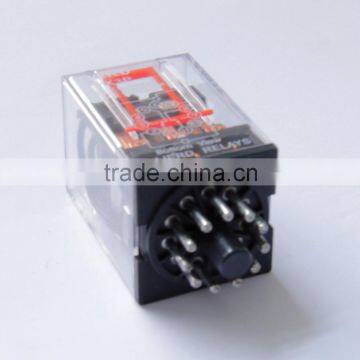

universal general purpose 10A 11pins electromagnetic 12v relay LMK-3P
Model |
LMK-3P |
|

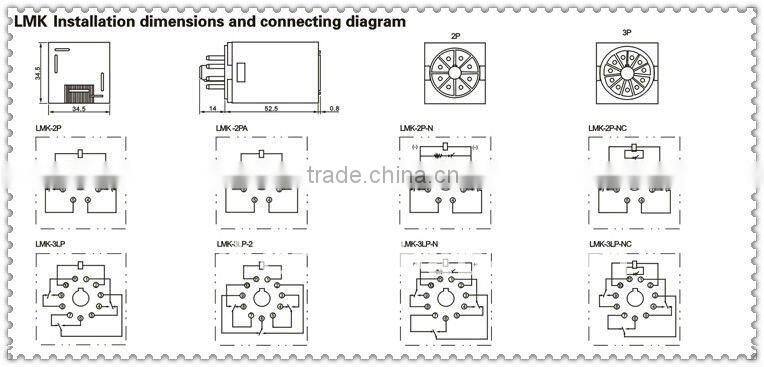

Dimension |
34.5 x 34.5 x 52.5mm |
|
|
Contact |
Form |
3Z OR 3C |
Material |
Silver alloy |
|
Resistance Performance |
10A/28VDC 10A/240VAC |
|
Resistance at 6VDC 1A |
≤100mΩ |
|
Coil power at 23℃ |
DC(W) |
≤1.5W |
AC(VA) |
≤2.5VA |
|
Coil voltage |
DC(V) |
6~220V |
AC(V) |
6~380V |
|
Pick-up voltage at 23℃ |
DC≤75% AC≤80% |
|
Release voltage at 23℃ |
DC≥10‰ AC≥30% |
|
Max voltage at 23℃ |
110% |
|
|
Dielectric Strength |
Between Open Contacts |
≥1200VAC 50Hz/1min Leakage current 1mA |
Between Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Between coil & Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Insulation Resistance at 500VDC |
≥100MΩ |
|
Life |
Electrical |
105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical |
10 6Times (Frequency: 300times/1min) |
|
Ambient Temperature |
-25℃ ~ +55℃ |
|
Terminal type |
Insert type or welding type (Please mark you need) |
|
Suitable sockets |
LPF113A LPF113A-E LPL11 |
|
Unit weight |
≈80G |
|
Model reference |
JTX |
|

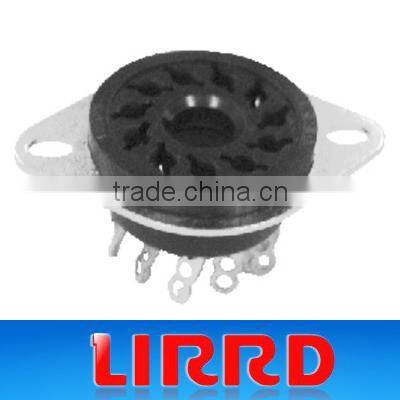

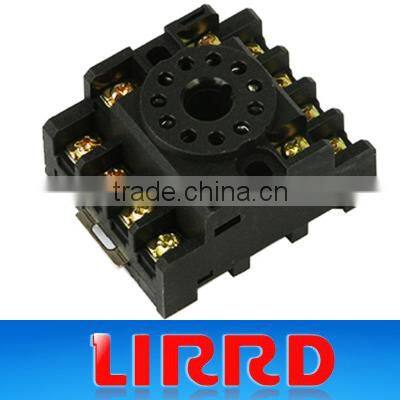

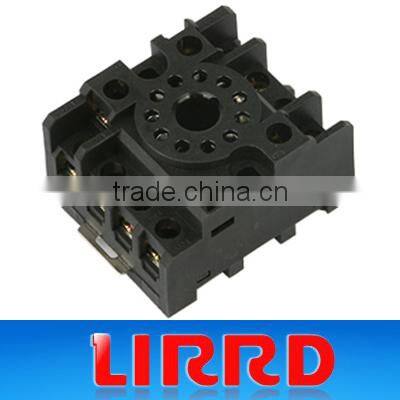

Socket for this relay:
10A power relay
200pcs/ctn, 18kg/ctn, 0.033cbm
1. Free samples are available. You only need pay for the freight.

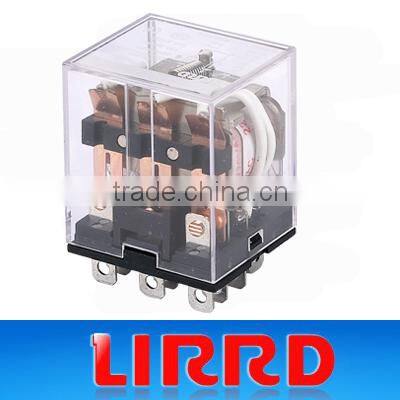

2. We also have many other types relays, please check following:
Anything you concern, please be free to contact us. We will be more than happy to offer any help we can.
