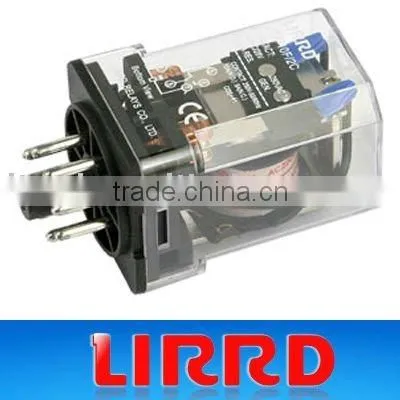

5A 8pins Dc12v Dc24v Ac220v General Purpose Relay/universal Realy/ Power Relay/relay JQX-10F-2Z(JTX)

5A 8pins Dc12v Dc24v Ac220v General Purpose Relay/universal Realy/ Power Relay/relay JQX-10F-2Z(JTX) thumbnail-1
5A 8pins Dc12v Dc24v Ac220v General Purpose Relay/universal Realy/ Power Relay/relay JQX-10F-2Z(JTX) photo-1
US$ 0.1 - 3 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
JQX-10F
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LIRRD
Model Number JQX-10F
Theory Electromagnetic Relay
Usage General Purpose
Size Other, 34.5*34.5*53
Protect Feature Sealed
Contact Load Other, 5A

 5A 8pins dc12v dc24v ac220v general purpose relay/universal realy/ power relay/relay JQX-10F-2Z(JTX)



Product Description



Model

LJQX-10F

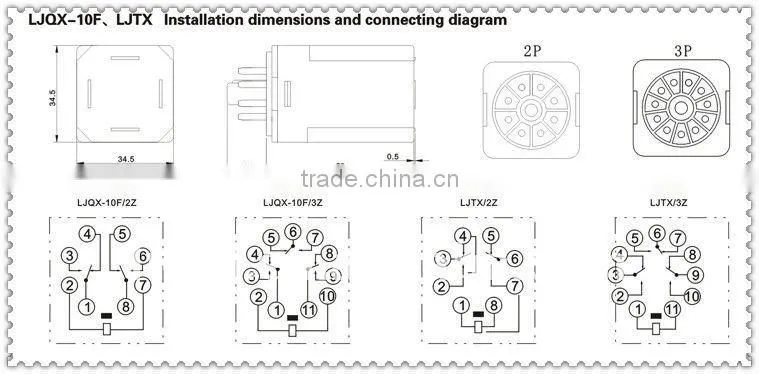

Dimension

34.5 x 34.5 x 53mm



Contact

Form

2Z 2H 2D

Material

Silver alloy

Resistance Performance

5A/28VDC   5A/250VAC

Resistance at 6VDC 1A

≤100mΩ

Coil power at 23℃

DC(W)

≤2W

AC(VA)

≤3.5VA

Coil voltage

DC(V)

6~220V

AC(V)

6~380V

Pick-up voltage at 23℃

DC≤75% AC≤80%

Release voltage at 23℃

DC≥10‰ AC≥30%

Max voltage at 23℃

110%



Dielectric Strength

Between Open Contacts

≥1200VAC 50Hz/1min Leakage current 1mA

Between Contacts

≥1500VAC 50Hz/1min Leakage current 1mA

Between coil & Contacts

≥1500VAC 50Hz/1min Leakage current 1mA

Insulation Resistance at 500VDC

≥100MΩ

Life

Electrical

105 Times (Frequency: ON 1time/1s OFF 1time/1s)

Mechanical

10 6Times (Frequency: 300times/1min)

Ambient Temperature

-25℃ ~ +55℃

Terminal type

Insert type

Suitable sockets

LPF083A LPF083A-E LPL08

Unit weight

≈76G

Model reference

JTX



5A 8pins dc12v dc24v ac220v general purpose relay/universal realy/ power relay/relay JQX-10F-2Z(JTX)



Socket for this relay:



Packaging & Shipping

 200pcs/ctn, 18kg/ctn, 0.033cbm
