1. Descriptions
AT520L battery meter can be used to test contact resistance,battery internal resistance and voltage of battery simultaneously. AT520L applies to the product sorting and factory inspection of the battery produce line, Compatible with HIOKI 3560 and Agilent 43388. All kinds of contact resistance, Li-battery, alkaline cell and lead accumulator determination of degradation and estimate of lifetime, UPS test on line and lead accumulator factory inspection can be tested by AT520 series.

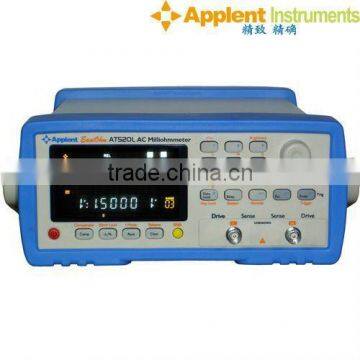

AT520L Battery Tester (AC Resistance Tester) | |
SPECIFICATIONS | |
Parameters |
AC resistance, DC voltage, Θ |
Accuracy |
Resistance:0.5% Voltage: 0.1% |
Measurement Range |
Resistance: 10μΩ- 32Ω Voltage: 1mV - 60V DC |
Signal Source |
AC 1kHz, open-circuit voltage < 20mV, measurement current: < 10mA |
Range |
Automatic and manual with 4 ranges |
Speed |
10 times/second, 3 times/second, 1 time/second |
Result Display |
Show, ΔABS, Δ%, q, sorting result |
Max Reading |
Resistance: 3,200(32/3), Voltage: 6,000 |
Adjustment |
Short-circuit reset for all range, REL function |
Comparator |
1 group record, NG-LO, GD-IN, NG-HI display and output. beep is adjustable |
Trigger |
Internal, manual, external (optional) |
Interface |
RS232C interface |
Others |

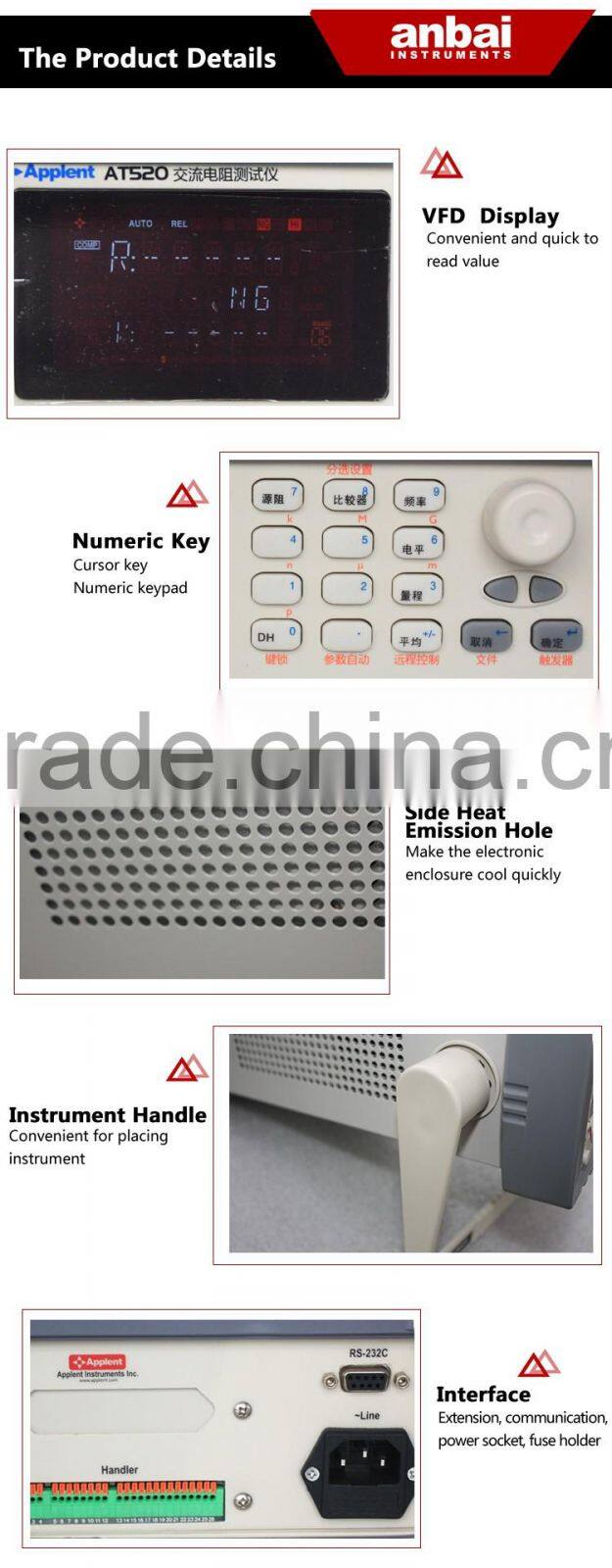

Detection of damage test wire, four-color vacuum fluorescent screen VFD display, keypad lock and data hold function |
GENERAL FEATURES | |
Power Supply |
Voltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA |
Dimension & Weight |
264mm (Width)x107mm (Height)x350mm (Depth) 4kg |
ORDERING INFORMATION | |

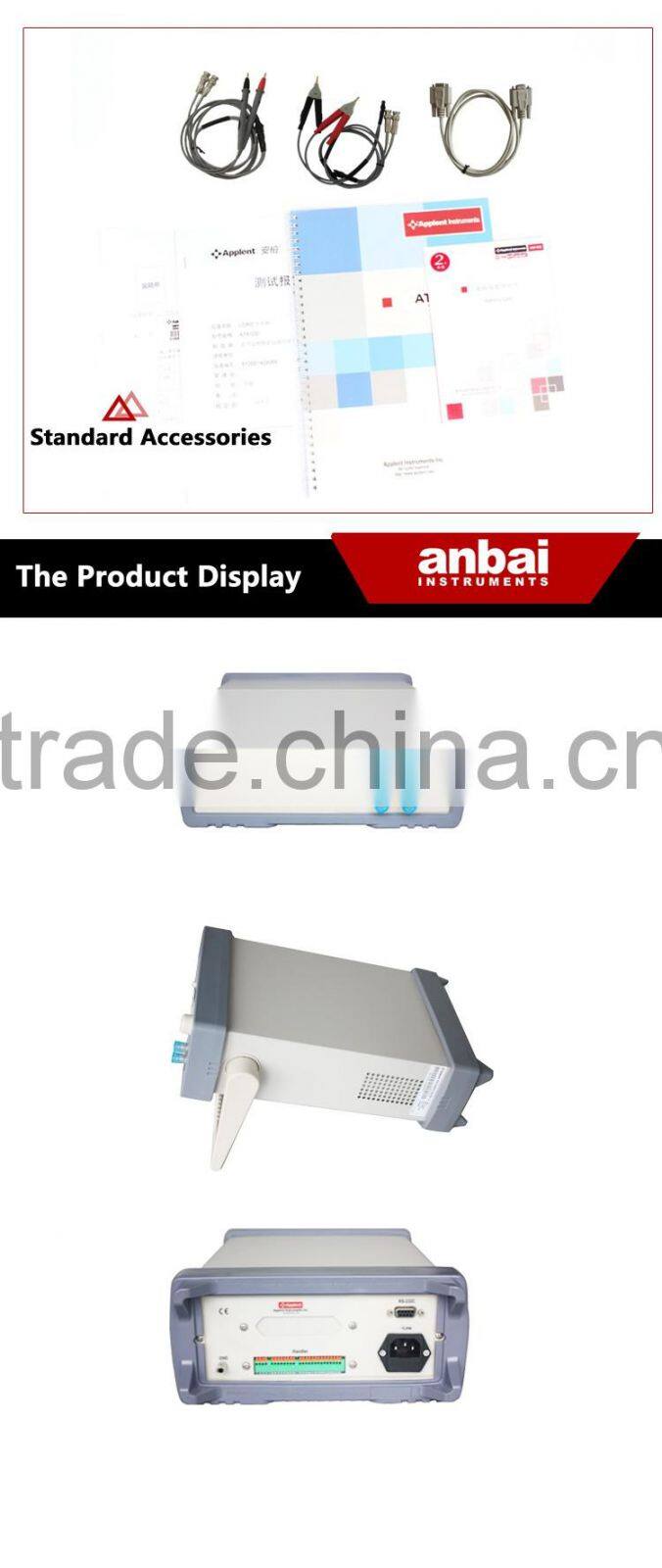

Accessories |
ATL505 kelvin test wire ATL108 RS232 interface cable |
Optional Accessories |
ATL506A: test probe ATL506: test leads |
