220UF/16V 6*7 green metallized polyester film capacitor

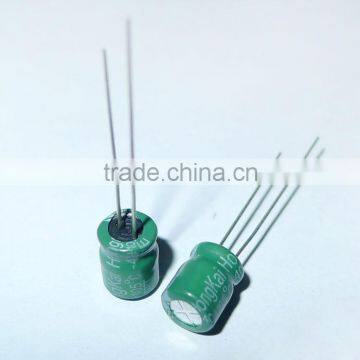

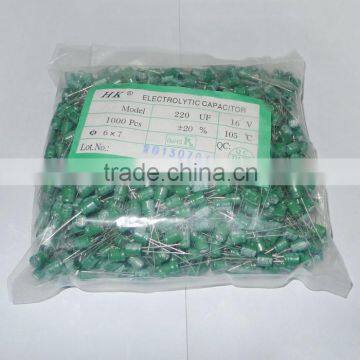

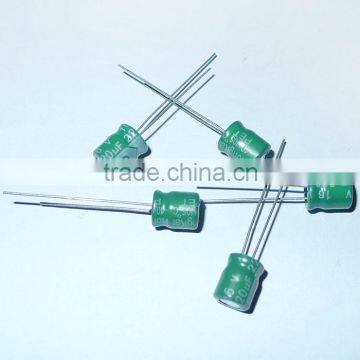

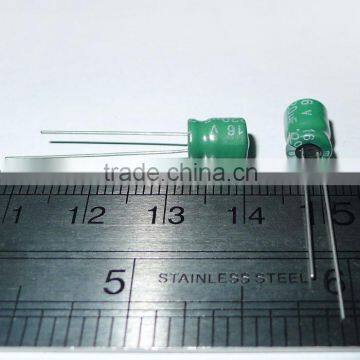

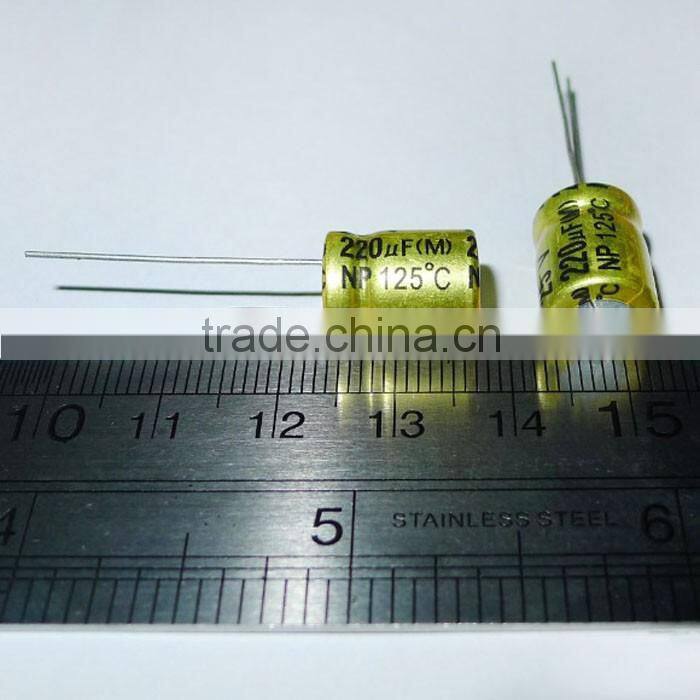

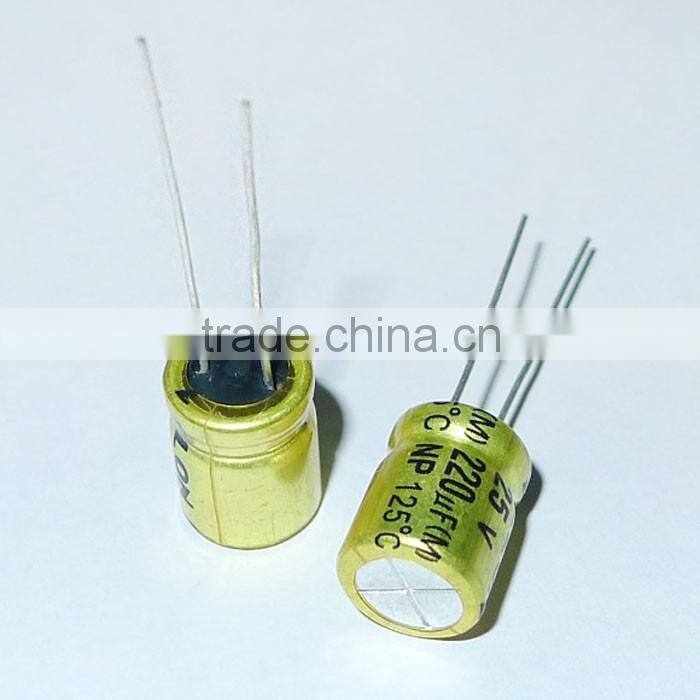

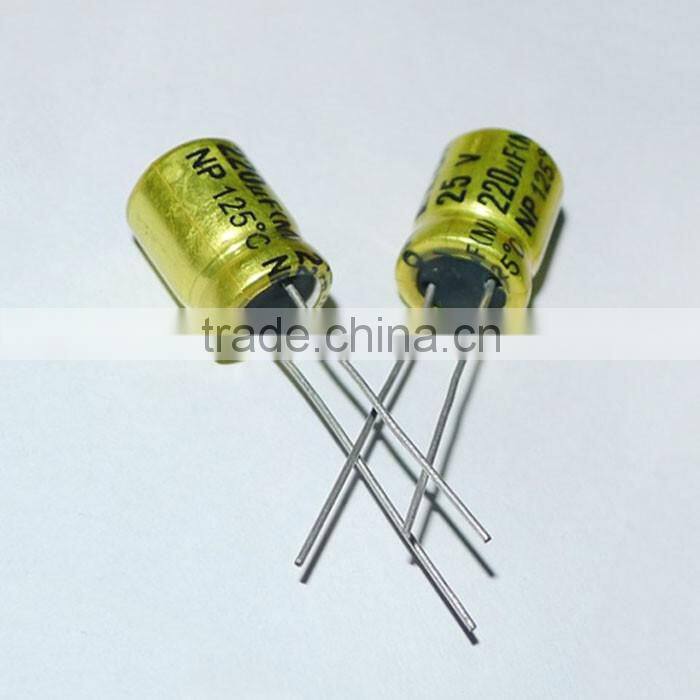

1,PICTURE
2.Description
| Item | Characteristic | |||||||||||||
| Operation Temperature Range | -40~105℃ | -25~+105℃ | ||||||||||||
| Rated Working Voltage Range | 6.3V~100VDC | 160v~400vdc | ||||||||||||
| Capacitance Tolerance | ±2.0%(M) at 120Hz,+20℃ | |||||||||||||
| Leakage Current(MAX) | WV≤100VDC | WV≥100VDC | ||||||||||||
| 1=0.01CV or 3(uA) | 1=0.03CV+40(uA) | |||||||||||||
|
I:Leakage current(uA) C:Rated Capacitance(uF) V:Working voltage(V) | ||||||||||||||
| Surge Voltage (25℃) | W.V | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 2OO | 250 | 350 | 400 |
| TanÕ | 0.24 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.10 | 0.08 | 0.20 | 0.20 | 0.20 | 0.25 | 0.25 | |
|
Low Temperature Stability Tempedance Ratio(MAX) |
W.V | 6.3 | 10 | 16 | 25 | 35~100 | 160~200 | 250 | 400 | 450 | ||||
| Z(-25℃)/Z(+25℃) | 5 | 4 | 3 | 2 | 2 | 3 | 4 | 6 | 8 |
|||||
| Z(-40℃)/Z(+25℃) | 10 | 8 | 6 | 5 | 3 | - | - | - | - | |||||
| Load Life | After 2000 hours application of W.Vat +105℃ | |||||||||||||
| Capacitance Change | ≤±20% initial value | |||||||||||||
| Disspation Factor | ≤200% of intial specified value | |||||||||||||
| Leakage Current | ≤ initial specified value | |||||||||||||
| Shelf life |
After 300 hours,no voltage of w.Vat+105℃ The capacitor shall meet the following limits |
|||||||||||||
| Capacitance change | ≤±20% of intial value | |||||||||||||
| Disspation Factor | ≤±200% of the initial specified value | |||||||||||||
| Leakage Current(6.3 to 100VDC) | ≤the initial specifid value | |||||||||||||
| Leakage Current(160 to 450VDC) | ≤ 500% initial specified value | |||||||||||||
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such
as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,
Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.
We are manufacturer and have ten years experience in Electrical industry.
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
YUEQING KAMPA ELECTRIC CO.,LTD
ad#666,FeiLong Electric,LiuShi Town,YueQing City,ZheJiang,China
Tel:0086-577-62729846
Fax:0086-577-62780320
Website:
Alibaba Home: elexpert.en.china.cn
