22UF/450V 16*22 aluminum electrolytic capacitor

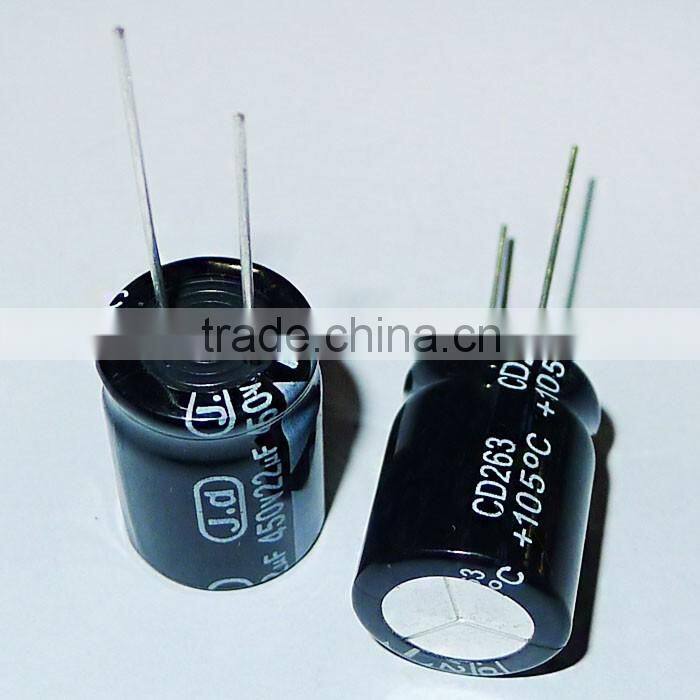

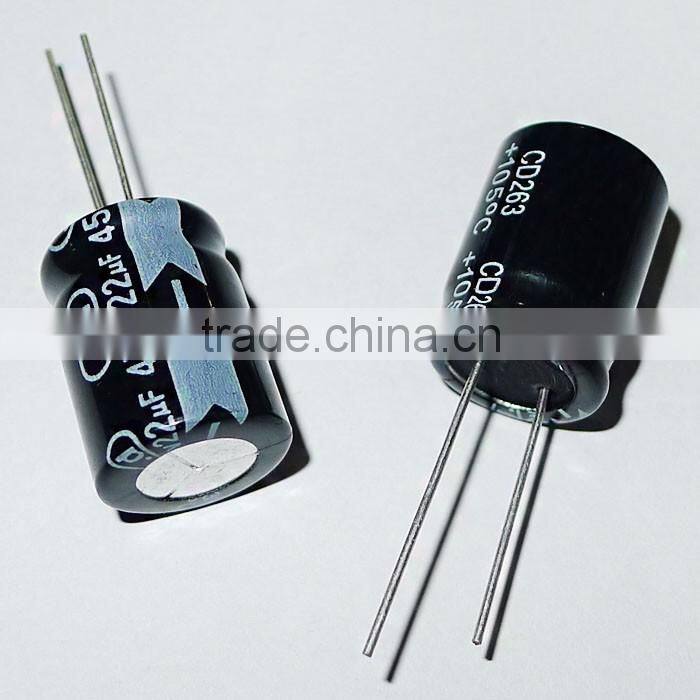

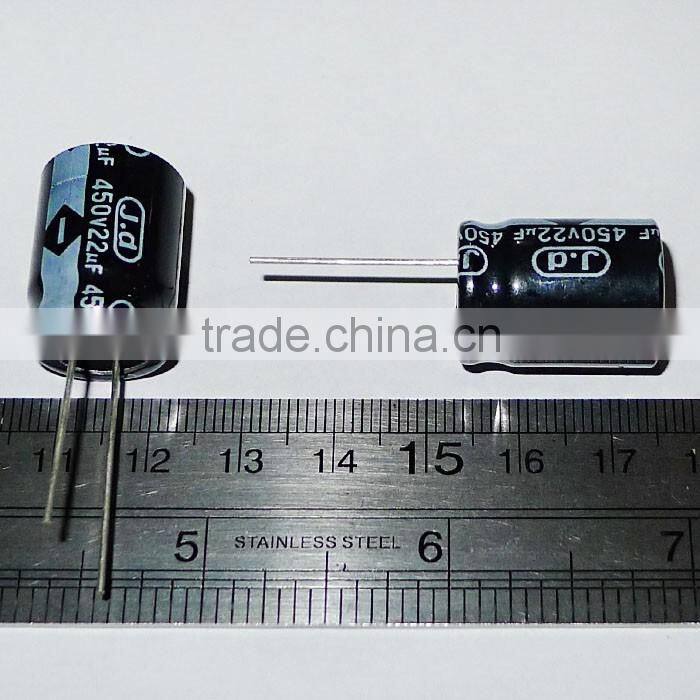

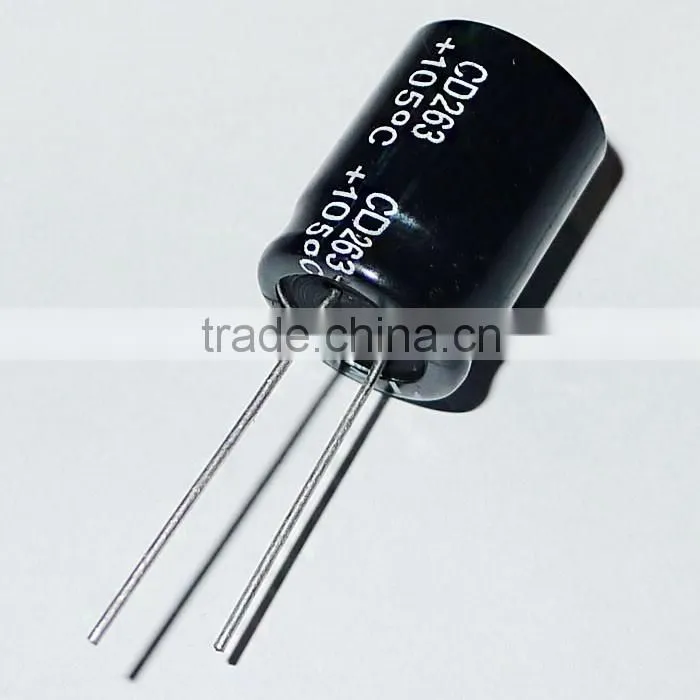

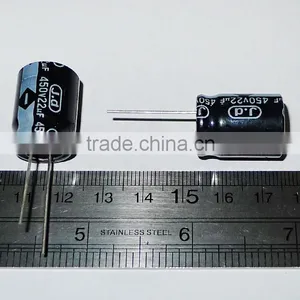

1,PICTURE
2.Description
| Item | Charater | ||||||||||||||
| Operating Temperature | -40℃~105℃ | -25℃~+105℃ | |||||||||||||
| Rated Working Volatge Range | 6.3~100VDC | 160~450VDC | |||||||||||||
| Capacitance tolerance | ±20%(M)at 120Hz,+20℃ | ||||||||||||||
| Leakage current(Max) | WV≤100VDC | WV≥100VDC | |||||||||||||
1=0.0CV or 4uAhichever is after 1 minutes |
1~0.03CV+10(μA) | ||||||||||||||
| I:Leakage current(μA)C:Rated capacitance(μF)V:Rated voltage(V)(25℃) | |||||||||||||||
|
Dissipation Factor(TanÕ) at 120Hz.25℃)(Max) |
When nominal capacitance is over 1000μ,F,TanÕ shall ba added 0.02 to the listed value with in crease of every 1000μF. | ||||||||||||||
| wv | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 450 | |
| Tanô | 0.24 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.10 | 0.08 | 0.20 | 0.20 | 0.2 | 0.2 | 0.25 | 0.25 | |
|
Low Temperature Stability Impedence Ratio(MAX) |
WV | 6.3 | 10 | 16 | 25 | 35-100 | 160-240 | 250 | 400 | 450 | |||||
| Z(-35℃)/Z(=25℃) | 5 | 4 | 3 | 2 | 2 |
3 | 4 | 6 | 8 | ||||||
| Z(-35℃)/Z(=35℃) | 10 | 8 | 6 | 5 | 3 | - | - | - | - | ||||||
| Surge voltage | rated voltage(WV) | 6.3 | 10 | 16 | 25 | 35 | 50 | 100 | 160 | 200 | 350 | 400 | 450 | ||
| Surge voltage(WV) | 8 | 13 | 20 | 32 | 44 | 63 | 125 | 200 | 250 | 400 | 450 | 500 | |||
| Load Life | After 2000 hours application of W.V at 105 ℃,The capacitor shall meet the following limits | ||||||||||||||
| Capacitance Change | ≤±20% of the initial measured value | Case Dia | Life Time(hrs) | ||||||||||||
| Dissipation Facor | ≤±200% of the initial measured value | Ø≤10 | 2000 | ||||||||||||
| Leakage current | ≤the intial specified value | Ø≥13 | 3000-3000 | ||||||||||||
| Sheif Life | At105℃ no voltage applied after 500 hours,the capacitor shall meet the following value | ||||||||||||||
| Capacitance Change | ≤±20% of the intial measure value | ||||||||||||||
| Disspation Factor | ≤±200% of the intial specified value | ||||||||||||||
| Leakage current(6.3 to 100VDC) | ≤the intial specification value | ||||||||||||||
| Leakage current(160to450VDC) | ≤500 of the initial specified value | ||||||||||||||
| Reference Standard | JIS C-5141 | ||||||||||||||
