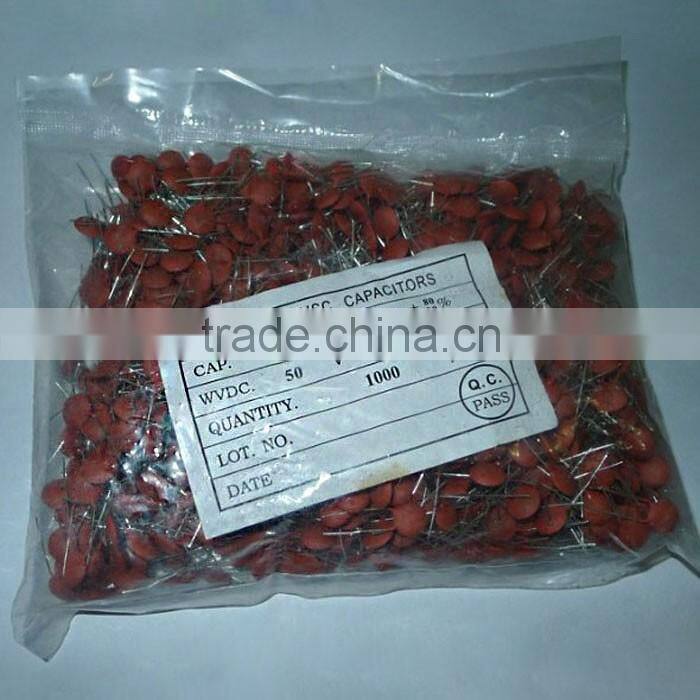

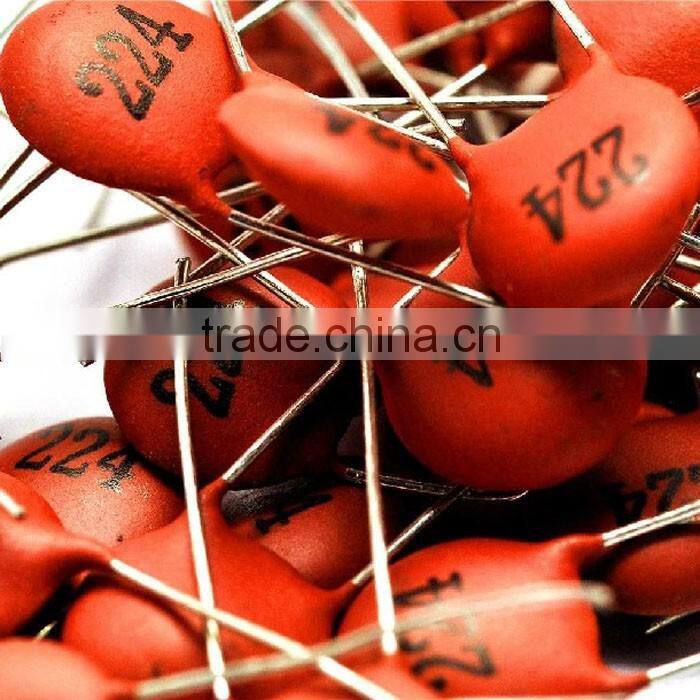

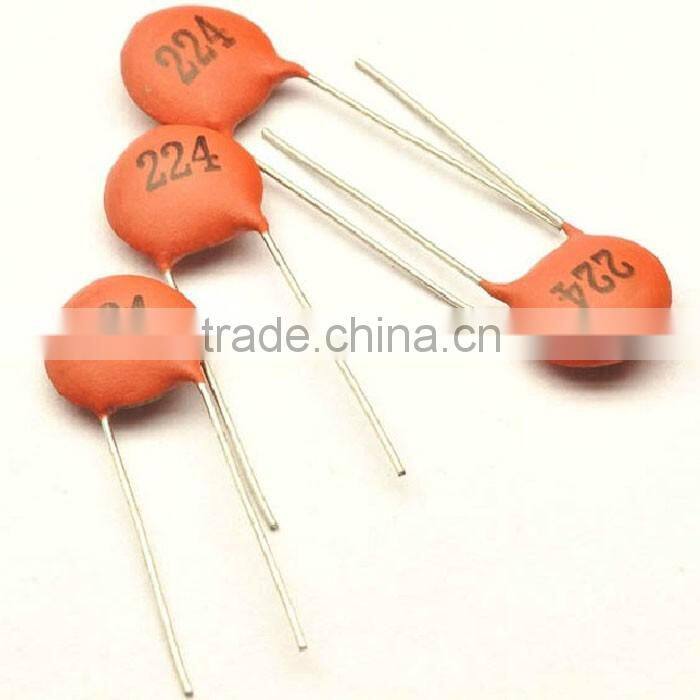

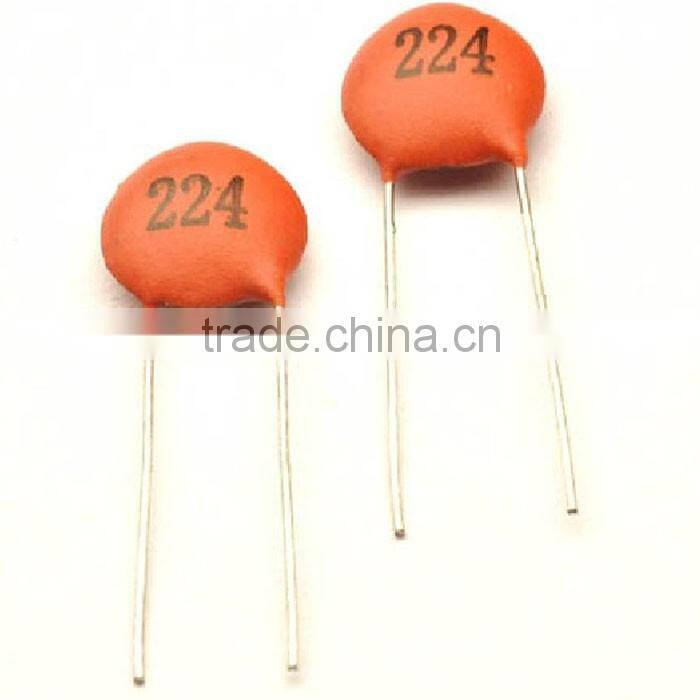

224PF/50V 0.22UF/50V high voltage electrolytic ceramic capacitor

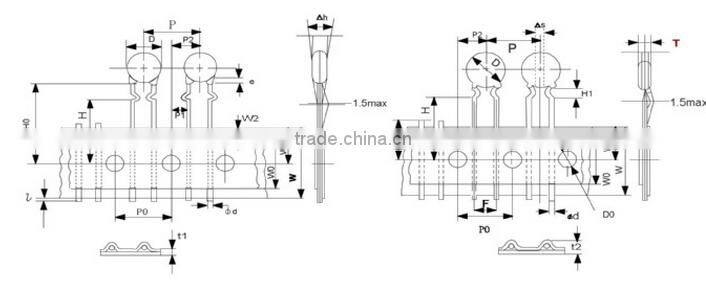

1,PICTURE
2.Description
1.Applicable area :This specified is applied to ceramic fixed capacitors to be used for television receiver and ect.
2.Operating temperature range:-25℃~+85℃
3.Test conditions
1)Standard state without special requirement we test in standard test in standard test conditions(temperature 5℃~35℃,relative humidity 45℃~85%RH,atmospheric pressure 860~1060mbar)
2)Criterion state:temperature 23±2℃,relative humidity 60~70% RH,atmospheric pressure 860~1060mbar,
| ITEM | PERFORMANCES | TEST METHOD | |
| 1Appearance and dimension | No damage in appearance an dimension accord with fixed | Venire Caliper | |
| 2.Voltage Proof | Between Termination | No bad result |
CC1 test voltage:rated voltage X250% CT1 Test voltage:rated voltageX250% CS1 Test voltage:rated voltageX150% Application time:1-5s Charging discharging current:50mA or less |
| Between terminations and enclosure | No bad result |
small merallic ball method used CC1 test voltage:rated voltageX250%
|
|
| 3.Insulation resistance (I.R)Between terminations
|
CC1:IR≥1000MΩ CT1:IR≥1000MΩ CST:IR≥1000MΩ |
CC1,CT1 test voltage:50V CS1 Test voltage:10V Application time>:60±5S |
|
| 4.Capacitance | Within specified tolerance |
:1MH CC1:1.0Vrms <CC1 Measuring voltage>:1.0V CT1,CS1 Measuring freqency>:1KH <CT1,CS1 Meeasuring voltage>:0.3rms (Y5E,Y5P,1.0rms) Measuring temperature:23±2S℃ |
|
| 5.Tangent of loss angel tgõ |
CC1:C≥50PF tgδ≤0.15% C<50PF tg Õ≤1.5*(150C+7)*10³ CT1:tgõ<3.5% CS1:tgÕ<5% |
||
| Capacitance | 18pF~33000pF |
| Capacitance tolerance | K(±10%),M(±20%),Z(+80%-20%) |
| Operating Temperature | -25℃~+85℃) |
| Temperature characteristic | Y5P,Y5P,Y5V,SL,BN,Y5R |
| Rated Voltage | 1KVDC,2KVDC,3KVDC |
| Dissipation Factot(Tgδ) | 5P,Y5U,Y5V: tgδ≤2.0% BN: tgδ≤0.5% Y5R: tgδ≤0.2% SL:Cr<30pF,Q≥400+20Cr;Cr≥30pF,Q≥1000 Ⅰ:1MHz,1±0.2Vrms,25℃ Ⅱ:1KHz,1±0.2Vrms,25℃ |
| Insulation Resistance(IR) | IR≥10000MΩ 25℃,500VDC |
| Testing voltage | 2 times the rated voltage or 1.5 times the rated voltage +500V(whichever is smaller |
| Encapsulation |
1KV:Phenolic Resin ≥2KV:Epoxy Resin |
