Rotary Table Water Well Drilling Machinery 300 Meters
- Any port in China
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | BINZUAN brand | Model Number | BZC350ZY | |
| Usage | Water Well | Voltage | 380 V | |
| Power(W) | 147 KW | Dimension(L*W*H) | 12160*2490*3440 MM | |
| Weight | 19 tons | Certification | ISO9001:2008 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

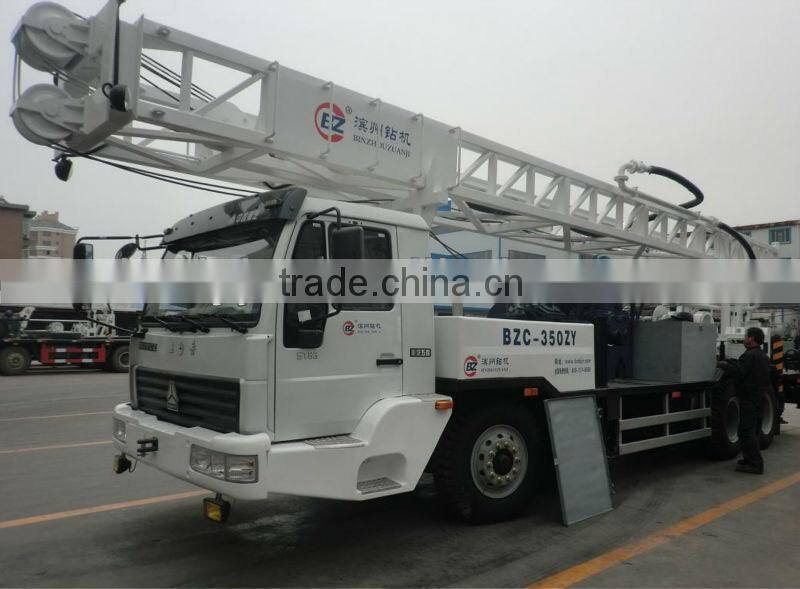

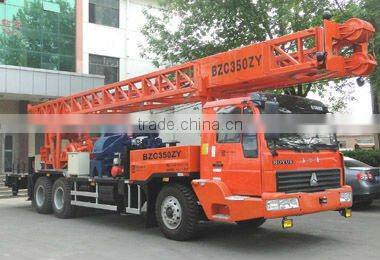

BZC350ZY truck mounted water well drilling machinery
1.BZC350ZY truck mounted water well drilling machinery is equipped with SINOTRUK special 6x4 truck chassis.
And BZC350ZY drilling rig's main drilling technology is mud positive cycle, but according to the geological conditons, it is also can be equipped with air compressor to achieve pneumatic DTH hammer drilling and other
Mud positive cycle drilling technology.
2.Technical parameters as follow:
Technical parameter of BZC350ZY drilling machinery | ||||
Drilling depth(M) | 80 | 300 | ||
Drilling diameter(mm) | 1500 | 500 | ||
Speed of turntable(r/min) | 21.23663.2100.615520.2reverse | |||
Torque of turntable(KN.m) | 1810.663.82.518.9reverse | |||
Single rope lifting capacity of windlass (KN) | 30 | |||
the max torque of whole machine (KN.m) | 40.55 | |||
The lifting capacity of hook (KN) | 180 | |||
Bearing capacity of mast (KN) | 180 | |||
The height of mast (mm) | 11500 | |||
Bearing capacity (t) | 25 | |||
Pipe | Kelly mm | 108×108×7500 | ||
Assistant pipe (mm) | 89×10×5500 | |||
Hydraulic pump | Model | CB-HP50/32Z | ||
Pump delivery (ml/r) | 50/32 | |||
Rated speed (r/min) | 3500-3700 | |||
Rated pressure(MPa) | 20 | |||
BW850/2A plunger pump
| Diameter of cylinder (mm) | 150 | ||
Stroke of piston (mm) | 180 | |||
Theory of flow (L / min) | 600 850 | |||
Rated pressure (Mpa) | 3 2 | |||
Pounding times (min-1) | 58 82 | |||
Diameter of suction tube (mm) | 127 | |||
Diameter of drain pipe (mm) | 64 | |||
Input speed (r / min) | 470 | |||
Input power (kw) | 40 | |||
Overall dimensions (mm) | 2000*1030*1400 | |||
Weight (t) | 1.5 | |||
Truck chassis | Model | TAZ5191TXJ | ||
Drive form | 6×4 | |||
Engine | Model | TBD226B-6 | ||
Rated power (KW) | 147 | |||
Speed r/min | 2300 | |||
Size L*W*H(mm) | 11110×2490×2500 | |||
Electric generator | Model | MF | ||
Rated power (kw) | 15 | |||
Rated voltage(v) | 400 | |||
Rated current(A) | 27 | |||
Speed (r/min) | 1500 | |||
Frequency(Hz) | 50 | |||
Protection level | IP21 | |||
Insulation Class | H | |||
The best working gear (or speed) | 5th gear1000-1400r/min | |||
The highest speed (Km/h) | 75 | |||
Weight kg | 19340 | |||
Transport size L*W*H(mm) | 12160*2490*3440 | |||
Working size L*W*H(mm) | 11110*2490*13110 | |||
1. Questions and answers
1.Are you trading company or manufacturer?We are professional manufacturer since 1953, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality? All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
2. Advantages
1. Fast construction speed, can save your precious time and finish the engineering in
advance.
2. Load feedback system with less energy consumption, more energy saving.
3. Large torque, anti-sticking.
4. Deep depth, big diameter.
5. We have independent R&D department, with independent intellectual property rights, and ensure the sustainable upgrading of product performance.
6. We have strong construction technology and professional construction team, we can guide customers according to their construction problems from inquiry to after-sales.
Dear friend, if you are interested in BINZUNA brand water well drilling rig, please don't be hesitate to contact us, we will supply our best service and choose the best suitable water well drilling rig according to your demands, so we are looking forwards to your reply.
Thanks & Best regards.
Yours
sandy
