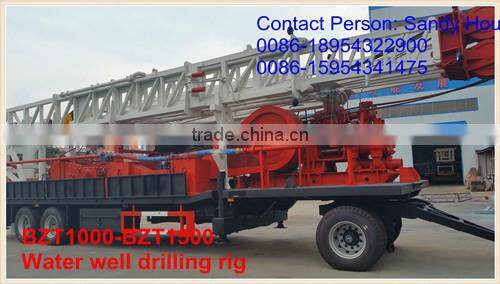

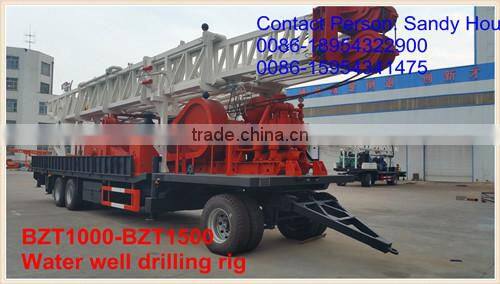

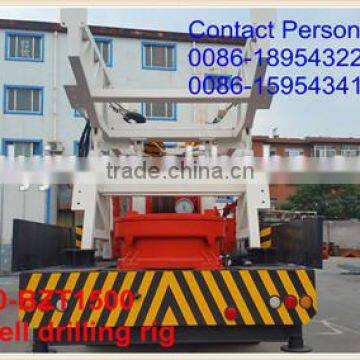

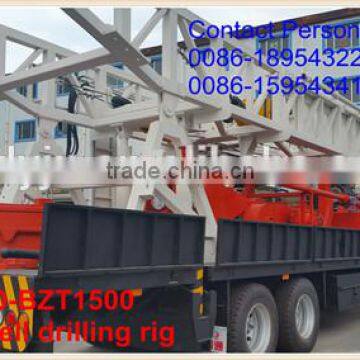

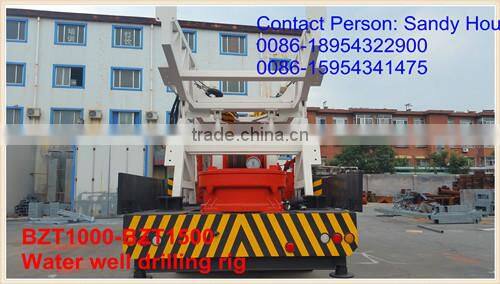

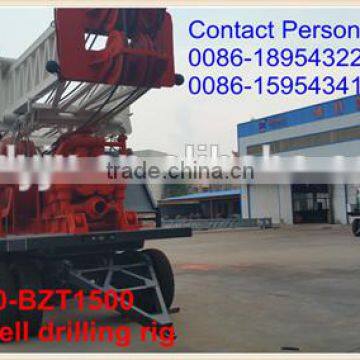

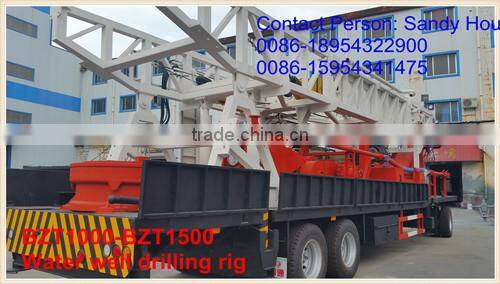

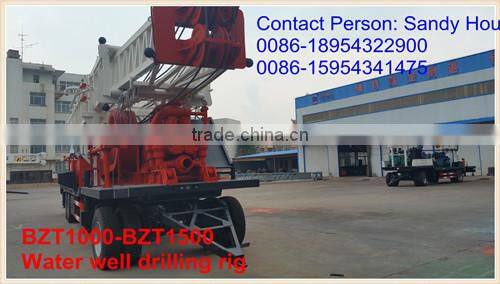

Trailer Type Water Well Drilling Machinery 1000m
- Any port in China
- T/T
You May Like
-
Truck Mounted Water Well Drilling Rig BZC350ZYII
-
Mobile Drilling Rig for Water Well Drilling 600m
-
Water Well Drilling Machinery for 400M Depth
-
200m Cheap Stock Truck Mounted Water Well Drilling Rig
-
BZCY400ZY Drilling Machinery for 400 Meteres Water Well
-
600 MetersTruck Mounted Drilling Machine Factory
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | BINZUAN brand | Model Number | BZT1000 | |
| Usage | Water Well | Voltage | 380V | |
| Power(W) | 264KW | Dimension(L*W*H) | 18880x2600x3800 mm | |
| Weight | 45T | Certification | ISO9001:2008 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

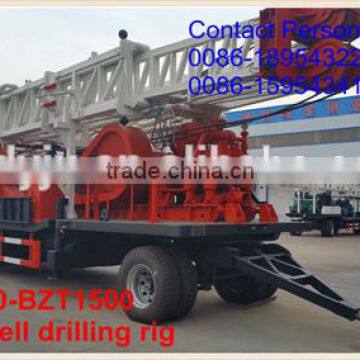

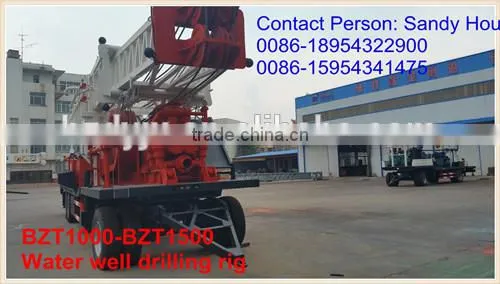

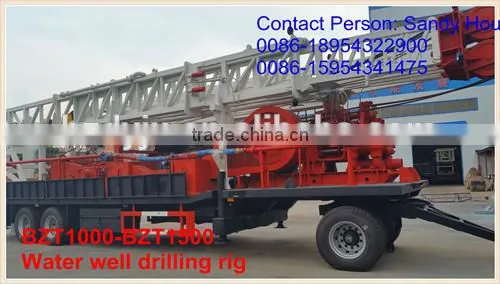

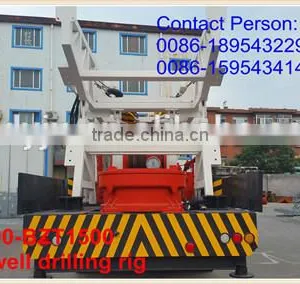

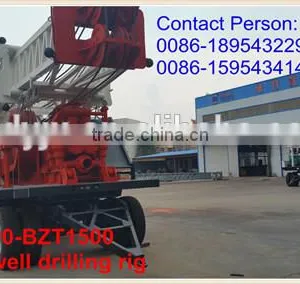

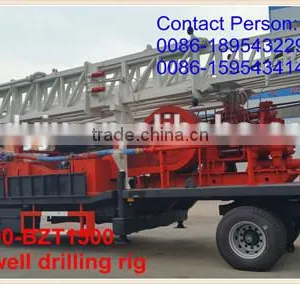

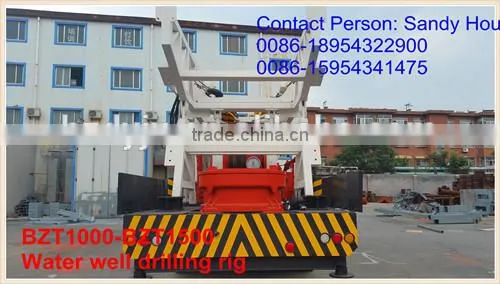

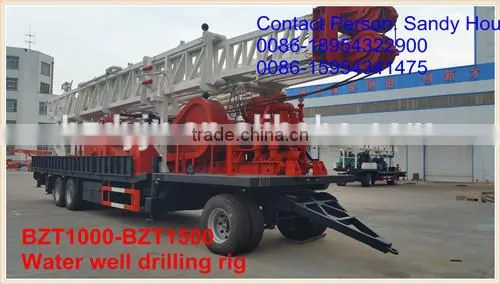

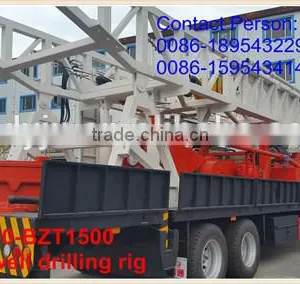

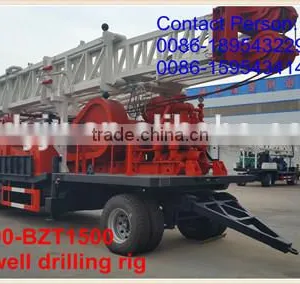

1. BZT1000-1500 trailer mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.
2. This rig is a rotary drilling rig with directional circulation, which is equipped with BW1200/7 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
3. The power of drilling rig comes from the Diesel engine, the power is 269kw, the brand is Cummins; the rig sets up distribute implement and hydraulic system. The rig has three motors, and the force were sent to the transmission system, mud pump and hydraulic system.

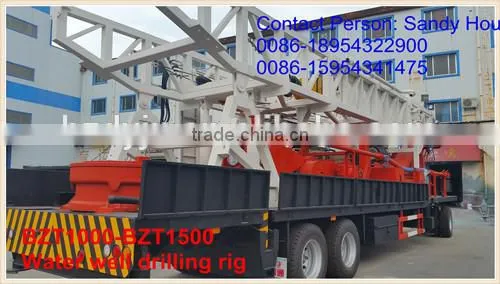

4. BZT1500 trailer mounted drilling rig used K-type two paragraph telescopic drilling tower, the tower is lifted up by hydraulic cylinder. It is installed the lights on top, middle and bottom of the tower, in order to works at night. The tower exxective height is 16.5m, the bearing capacity not less than 60t.
5. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.
6. It is installed a generator (50kw) , so that it is convenient to illuminate or work at night.
Technical parameters | |||||
Rotary table | Inner diameter: 660mm | ||||
Drilling depth(m) | 1500m | 1200m | 1000m | ||
Pipe model(mm) | φ89 | φ114 | φ127 | ||
The speed of turntable(rpm) | 153,89,55,39 | ||||
The max. torque of turntable(kn·m) | 22 | ||||
Hoist | Main hoist | Single rope lifting capacity of main hoist:90kN | |||
Single rope speed of main hoist: 0.84, 1.90, 3.3m/s | |||||
Wire rope diameter: D-6×19 φ28mm | |||||
Assistant hoist | Single rope lifting capacity of main hoist: : 50kN | ||||
Wire rope diameter: D-6×19 φ20mm | |||||
Diesel engine | Model | NTA855-C360 | |||
Rated speed(r/min) | 2100 | ||||
Power(kw) | 269 | ||||
Drilling tower | Effective height(m) | 16.5 | |||
Bearing capacity(t) | 60 | ||||
Kelly pipe(mm) | 108×108×12500 | ||||
Hook | Bearing capacity(t) | 60 | |||
Mud pump | Model | BW1200/7 | |||
Pressure(Mpa) | 7.0 | ||||
Theory of flow (L/min) | 1200 | ||||
Piston stroke(mm) | 270 | ||||
Piston diameter(mm) | 160 | ||||
Transport size(mm) | 15230×2790×4345 | ||||
Working size(mm) | 15222×3800×20265 | ||||
Speed | 20 Km/h | ||||
