Detailed Product Description of BZC350DF water well drilling rig

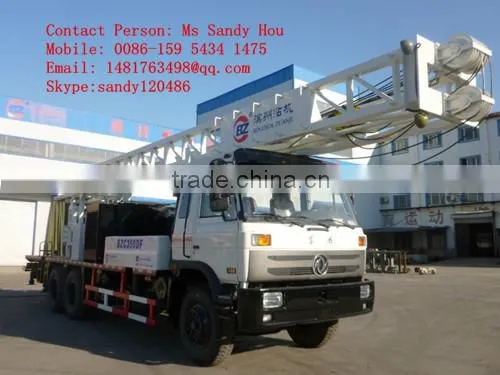

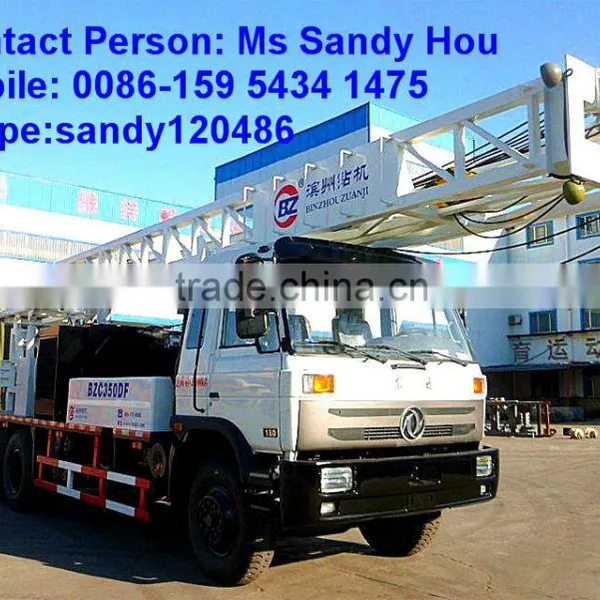

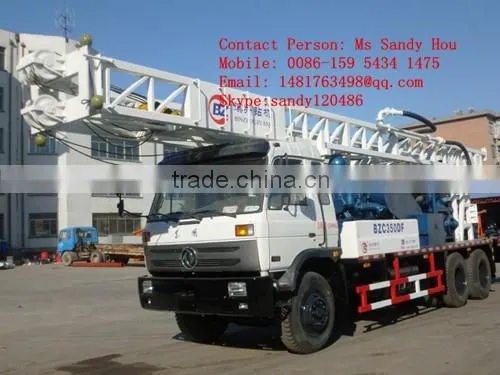

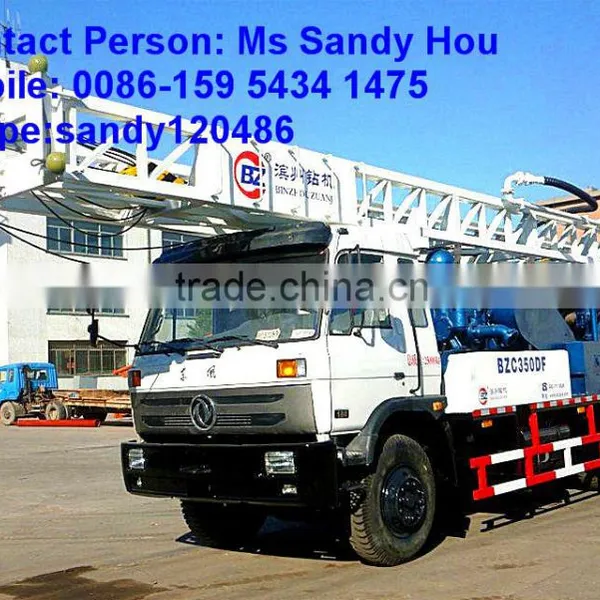

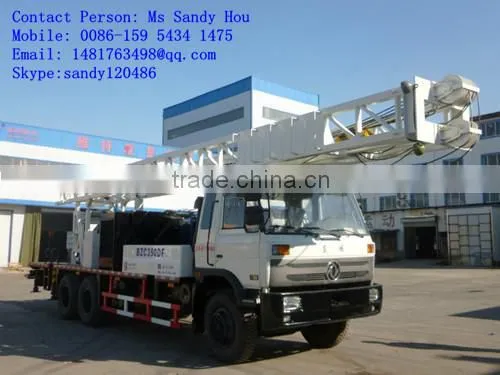

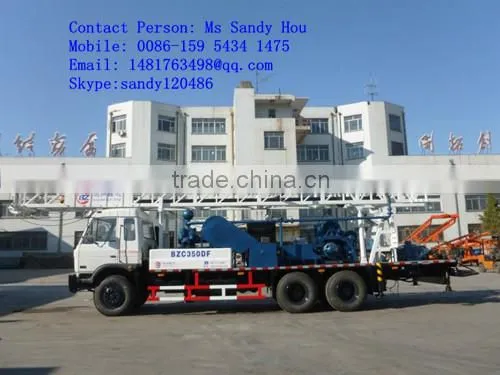

BZC350DF is a kind of rotary drilling rig, the drilling rig is equipped with 6x4 Dongfeng truck crane chassis, and the transfer case, main drive, gearbox, dual-winch, slurry pump, rotary table, drill tower and steel wire feeding system are all mounted on the chassis.
Three-phase AC generating set(MF) provides the vehicle mounted drilling machine with convenience for welding operation and equipment maintenance at night. of course, equipped with 55kw electric motor, when mains supply is available, the drill rig can operate using the power supply directly.

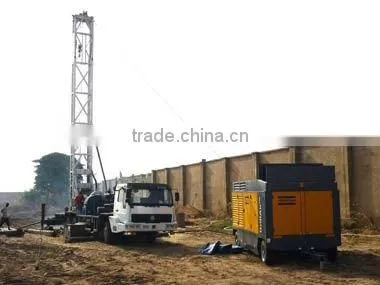

According to the geological conditions, BZC350DF truck mounted drilling rig can be equipped with air compressor to achieve pneumatic down-the -hole hammer drilling. If equipped with air water separator, dual-wall drill pipe and other related devices, the drilling equipment is also able to realize reverse circulation drilling. If equipped with drill tools like hydraulic DTH drilling.
BZC350DF water well drill machine is applicable for drilling into clay, sand, bed rock, basalt strata, and more.
Technical parameter of BZC350DF water well drilling rig
Technical parameter | |||
Drilling depth(M) |
400 |
||
Drilling diameter(mm) |
500 |
||
Speed of turntable(r/min) |
21.2;36;63.2;100.6;155;20.2(reverse) |
||
Torque of turntable(KN.m) |
18;10.6;6;3.8;2.5;18.9(reverse) |
||
Single rope lifting capacity of main windlass(KN) |
45 |
||
The capacity of main windlass(KN) |
270 |
||
Singlerope lifting capacity of hydraulic windlass(KN) |
40 |
||
The capacity of hydraulic windlass(KN) |
160 |
||
The lifting capacity of hook(KN) |
270 |
||
Bearing capacity of mast (KN) |
270 |
||
The height of mast (mm) |
11500 |
||
Bearing capacity (t) |
30 |
||
Pipe |
Kelly bar(mm) |
108×108×7500 |
|
Assistant pipe (mm) |
89×10×5500 |
||
Hydraulic pump |
Model |
CB-HP80/40 |
|
Pump delivery (ml/r) |
80/40 |
||
Rated speed (r/min) |
2000 |
||
Rated pressure(MPa) |
20 |
||
|
BW850/2A plunger pump
|
Diameter of cylinder (mm) |
150 |
|
Stroke of piston (mm) |
180 |
||
Theory of flow (L / min) |
600 850 |
||
Rated pressure (Mpa) |
3 2 |
||
Pounding times (min-1) |
58 82 |
||
Diameter of suction tube (mm) |
127 |
||
Diameter of drain pipe (mm) |
64 |
||
Input speed (r / min) |
470 |
||
Input power (kw) |
40 |
||
Overall dimensions (mm) |
2000*1030*1400 |
||
Weight (t) |
1.5 |
||
|
Truck chassis |
Model |
TAZ5191TXJ |
|
Drive form |
6×4 |
||
|
Engine |
Model |
Europe III emission standard) |
|
Rated power(KW) |
147 |
||
Speed (r/min) |
2300 |
||
Size (L*W*H)(mm) |
11110×2490×2500 |
||
Electric generator |
Model |
MF |
|
Rated power (kw) |
15 |
||
Rated voltage(v) |
400 |
||
Rated current(A) |
27 |
||
Speed (r/min) |
1500 |
||
Frequency(Hz) |
50 |
||
Protection level |
IP21 |
||
Insulation Class |
H |
||
The best working gear (or speed) |
5th gear(1000-1400r/min) |
||
The highest speed(Km/h) |
75 |
||
Weight (kg) |
19340 |
||
Transport size(L*W*H)(mm) |
12160*2490*3440 |
||
Working size(L*W*H)(mm) |
11110*2490*13110 |
||
Dear friend, if you are interested in BINZUAN brand water well drilling equipment, please don't be hesitate to contact us, we will supply our best sevice and choose the best suitable water well drilling equipment according to your demands, so we are looking forwards to your inquiry.
