Halogen Free XLPE Insulated Wire UL 3398 32awg-10awg
US$ 0.15 - 3.78
MOQ: 6100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
UL 3398 XLPE Insulsted Irradiated Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL 3289 XLPE Insulated Wire 30awg-750kcmilUS$ 0.05 - 5.7MOQ: 6100 Meters -
Teflon Cable / VDE Certified 8093US$ 0.98 - 1.12MOQ: 5000 Meters
-
20AWG Silicone Rubber Insulation Wire UL3536US$ 0.02 - 0.6MOQ: 6100 Meters
-
Solar Power Cable / VDE/UL Certified CableUS$ 4.86 - 4.89MOQ: 3000 Meters
-
VDE H05S-K High Temperature Silicone WireUS$ 0.1 - 5MOQ: 6100 Meters
Place of Origin
Guangdong, China
Brand Name
Haerkn
Model Number
UL 3398 XLPE Insulsted Irradiated Wire
Type
Insulated
Application
Overhead
Conductor Material
Other, Tinned or bare or silver-plated copper
Conductor Type
Other, Solid or stranded round
Insulation Material
Other, XLPE
Specifications
Halogen Free UL 33981. UL & ROHS & LOSH compliant
2. XLPE insulated wire
3. 300V & 150degC
4. bare/tinned copper 32-10awg

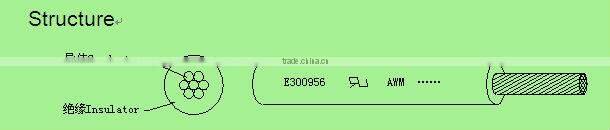

UL Style 3398 XLPE Insulated Wire
| Rating | 150 deg C, 300 Vac, Horizontal flame. |
| Conductor | 32 AWG - 10 AWG solid or stranded, tinned, bare or silver plated copper, or solid or stranded coated high strength copper - minimum 90% conductivity. |
| Insulation | XLPE, 15 mils min average, 13 mils minimum at any point. |
| Covering | Optional - XLPE, 10 mils minimum average, 8 mils minimum at any point. Compound Designation same as Insulation. |
| Standard | Appliance Wiring Material UL 758. |
| Marking | General. |
| Use | Internal wiring of appliances where not subjected to movement or mechanical damage. Tags may indicate the following: 600 V peak - for electronic use only. |
Conductor |
Insulator |
Electrical Characteristic |
Packing |
|||
AWG |
Comps.n.x/ φmm |
Diameter/ φmm |
Insulation Thickness /mm |
Over diameter/ φmm |
Realst, max Cuc, c 20°C/ Ohm/km |
Mt/coils |
30 |
7/0.10 |
0.31 |
0.38 |
1.07 |
381.00 |
610 |
28 |
7/0.12 |
0.37 |
0.38 |
1.13 |
239.00 |
610 |
26 |
7/0.16 |
0.49 |
0.38 |
1.25 |
150.00 |
610 |
24 |
7/0.20 |
0.61 |
0.38 |
1.37 |
94.20 |
610 |
22 |
17/0.16 |
0.76 |
0.38 |
1.52 |
59.40 |
610 |
20 |
20/0.18 |
0.93 |
0.38 |
1.69 |
36.70 |
610 |
18 |
16/0.254 |
1.17 |
0.38 |
1.93 |
23.20 |
305 |
16 |
26/0.254 |
1.50 |
0.40 |
2.30 |
14.60 |
305 |
14 |
41/0.254 |
1.88 |
0.46 |
2.80 |
8.96 |
305 |
12 |
65/0.254 |
2.37 |
0.51 |
3.39 |
5.64 |
100 |
10 |
105/0.254 |
3.00 |
0.51 |
4.02 |
3.546 |
100 |
