TUV Solar PV Cable PV1-F DC/AC Use

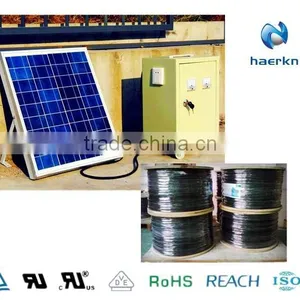

TUV Solar PV Cable PV1-F DC/AC Use photo-1
TUV Solar PV Cable PV1-F DC/AC Use photo-2
TUV Solar PV Cable PV1-F DC/AC Use photo-3
TUV Solar PV Cable PV1-F DC/AC Use photo-4
US$ 0.28 - 4.89 MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
TUV Solar PV Cable PV1-F DC/AC use
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Haerkn
Model Number TUV Solar PV Cable PV1-F DC/AC use
Type Other, double insulated
Application Other, Connection wiring for solar PV power system and PV inverter, and so on
Conductor Material Other, Tinned copper, multi-stranded tinned copper
Conductor Type Stranded
Insulation Material Other, XLPE white, XLPE black

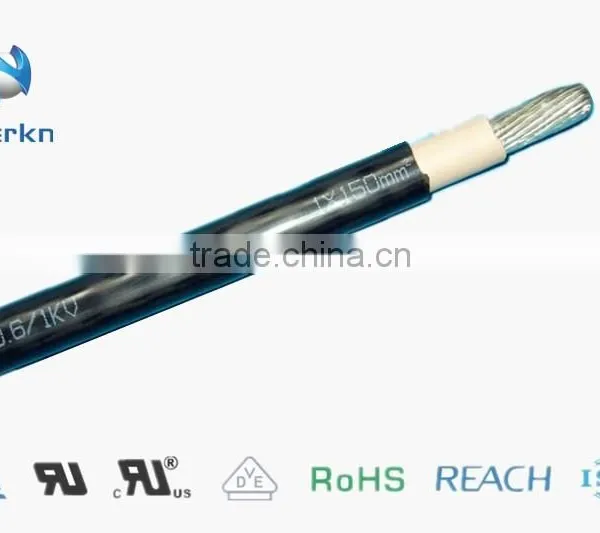

TUV Solar PV Cable PV1-F DC/AC use

  • Rated temperatur: 90°C
  • Max. temperature: 120°C
  • Rated Voltage: 0.6 ~ 1.0 kv
  • Color: Inner white outer black
  • Conductor: Tinned copper stranded
  • Inner Insulation: XLPE white, thickness: 0.66~0.93mm
  • Outer Insulation: XLPE black, thickness: 0.50~0.70mm

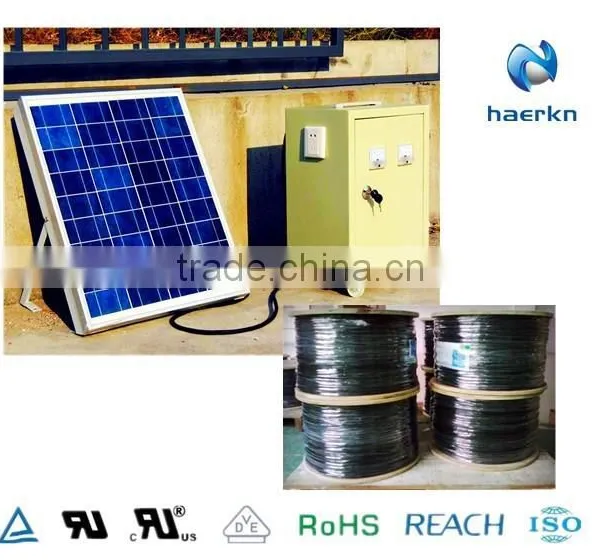

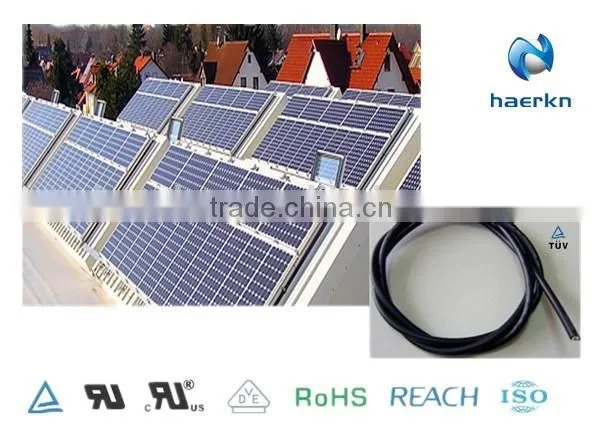

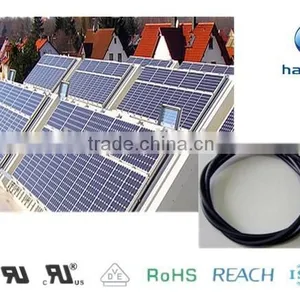

  • Application: Connection wiring for solar PV power system and PV inverter, and also can be used as underground feeder cable.
  • Reference Standard: TUV 2 Pfg 1169/08.2007

Electrical Characteristics:

  • Max DC Conductor Resistance at 20°C (Ω/km):  0.565
  • Min. Insulation DC Resistance(Mohm.km):  10.0
  • Dielectric Strength(KV/min):  AC6.5/DC15



Mechanical Characteristics:



Test Object: Insulation

  • Test Material: XLPE
  • Before Tensile Strength (N/mm2) ≥6.5
  • Aging Elongation (%) ≥125
  • Aging Condition (°C) 150±2°C×168H
  • After Tensile Strength (N/mm2) ≥70% of original
  • Aging Elongation (%) ≥70% of original



Test Object: Jacket

  • Test Material: XLPE
  • Before Tensile Strength (N/mm2) ≥8.0
  • Aging Elongation (%) ≥125
  • Aging Condition (°C) 150±2°C×168H
  • After Tensile Strength (N/mm2) ≥70% of original
  • Aging Elongation (%) ≥70% of original

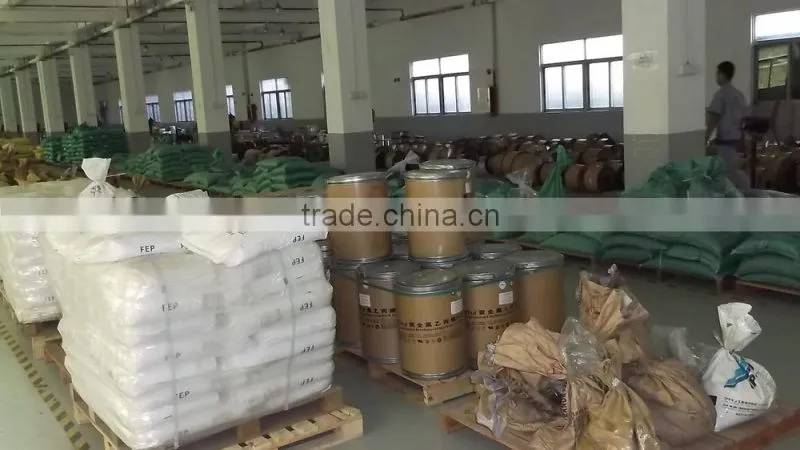

 Resin and copper MaterialsTUV Solar PV Cable PV1-F DC/AC use

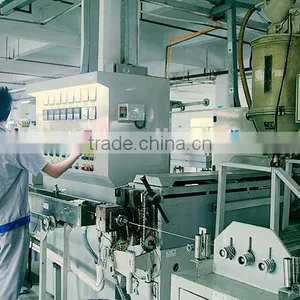

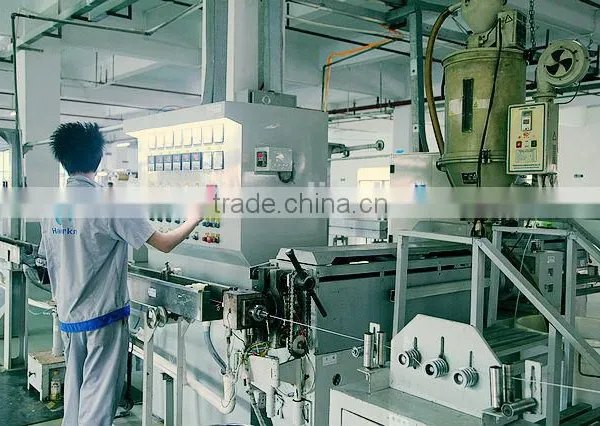

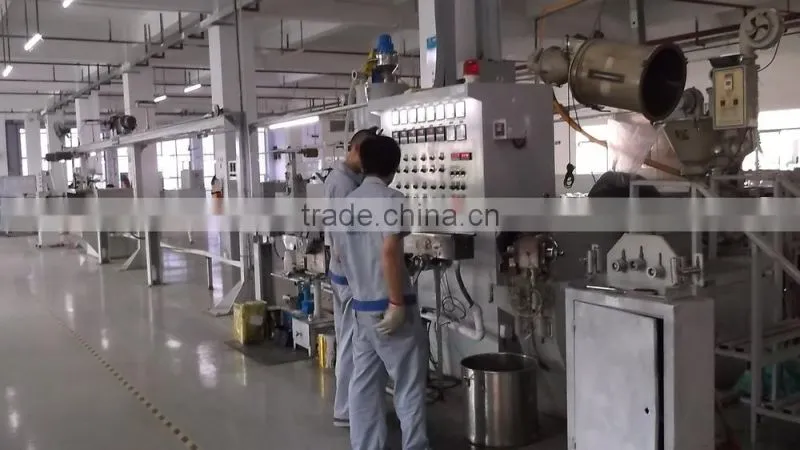

Production line (we totally have 10 production lines)

TUV Solar PV Cable PV1-F DC/AC use

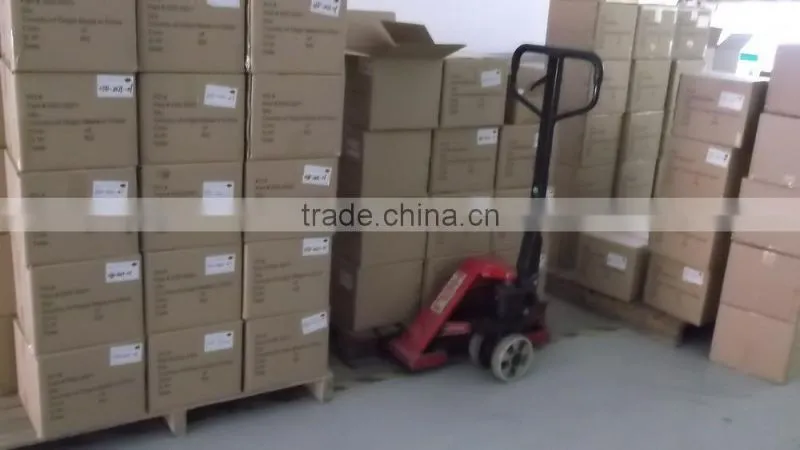

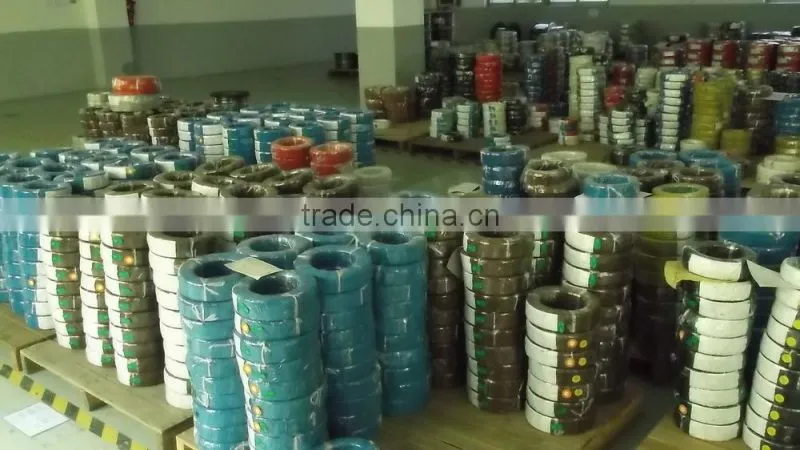

Finished products
TUV Solar PV Cable PV1-F DC/AC useTUV Solar PV Cable PV1-F DC/AC use
