TUV Certified DC Solar Cable PV Wire

TUV Certified DC Solar Cable PV Wire photo-1

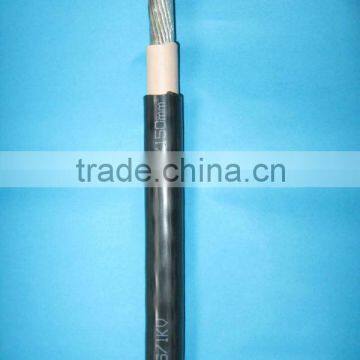

TUV Certified DC Solar Cable PV Wire photo-2

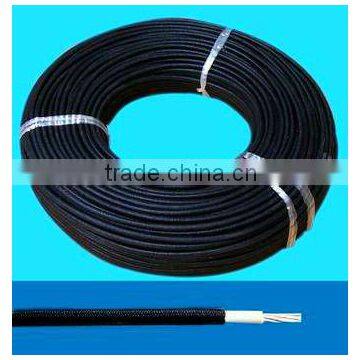

TUV Certified DC Solar Cable PV Wire photo-3

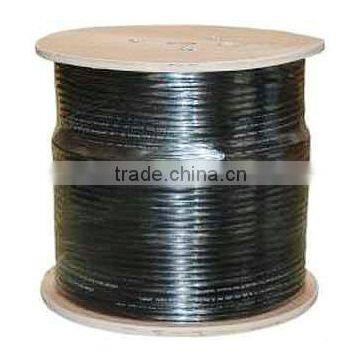

TUV Certified DC Solar Cable PV Wire photo-4

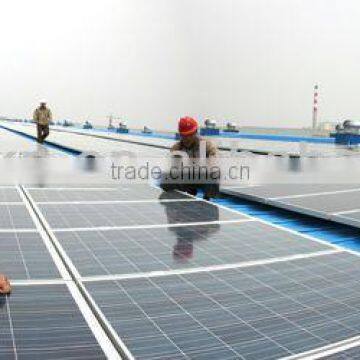

TUV Certified DC Solar Cable PV Wire photo-5
US$ 4.86 - 4.89 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
PV1-F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Haerkn
Model Number PV1-F
Type Other, double insulated
Application Other, Connection wiring for solar PV power system and PV inverter, and so on
Conductor Material Other, Tinned copper
Conductor Type Stranded
Insulation Material Other, XLPE white, XLPE black

Specifications

DC Solar Cable
1. TUV certified solar pv cable
2. XLPE double insulated
3. 0.6/1KV & -40~+90 deg C
4. Tinned copper strand



PV1-F 35mm2  Specification

  • Rated temperatur: 90°C
  • Max. temperature: 120°C
  • Rated Voltage: 0.6 ~ 1.0 kv
  • Color: Inner white outer black
  • Conductor: Tinned copper 266/0.40 stranded 8.54±0.25mm
  • Inner Insulation: XLPE white, thickness: 0.66~0.93mm
  • Inner Dia.: 10.4±0.3mm
  • Outer Insulation: XLPE black, thickness: 0.50~0.70mm
  • Outer Dia.: 11.8±0.4mm
  • Application: Connection wiring for solar PV power system and PV inverter, and also can be used as underground feeder cable.
  • Reference Standard: TUV 2 Pfg 1169/08.2007

Electrical Characteristics:

  • Max DC Conductor Resistance at 20°C (Ω/km):  0.565
  • Min. Insulation DC Resistance(Mohm.km):  10.0
  • Dielectric Strength(KV/min):  AC6.5/DC15



Mechanical Characteristics:



Test Object: Insulation

  • Test Material: XLPE
  • Before Tensile Strength (N/mm2) ≥6.5
  • Aging Elongation (%) ≥125
  • Aging Condition (°C) 150±2°C×168H
  • After Tensile Strength (N/mm2) ≥70% of original
  • Aging Elongation (%) ≥70% of original



Test Object: Jacket

  • Test Material: XLPE
  • Before Tensile Strength (N/mm2) ≥8.0
  • Aging Elongation (%) ≥125
  • Aging Condition (°C) 150±2°C×168H
  • After Tensile Strength (N/mm2) ≥70% of original
  • Aging Elongation (%) ≥70% of original



TUV certified DC solar cable PV WireTUV certified DC solar cable PV WireTUV certified DC solar cable PV WireTUV certified DC solar cable PV WireTUV certified DC solar cable PV Wire
