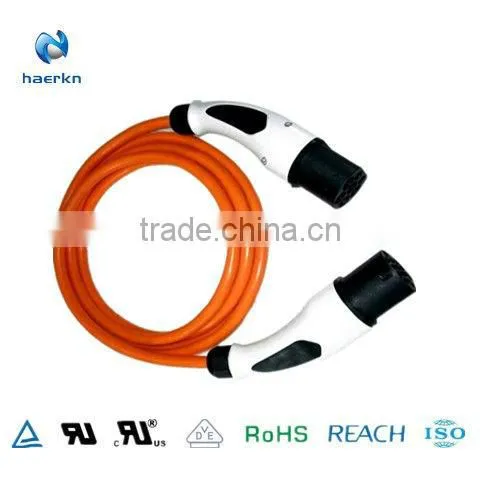

Help CenterFactory Direct Supply EV Charging Cable
Related Products
-
UL Certified DC Solar Cable 10AWG Solar pv Cable 6mm2US$ 0.98 - 1.12MOQ: 5000 Meters -
TUV Certified DC Solar Cable PV WireUS$ 4.86 - 4.89MOQ: 3000 Meters
-
UL 1080 PVC Insulated Nickel Chrom Fiberglass Heating WireUS$ 0.25 - 5.95MOQ: 6100 Meters
-
Heating Wire PVC Insulated Nichrome Alloy Fiberglass UL 1076US$ 0.65 - 3.95MOQ: 6100 Meters
-
UL 758 PVC Insulated Copper Wire, UL 1013, 30awg-2000kcmilUS$ 0.075 - 3.25MOQ: 6100 Meters
Specifications
1. UL 62 & RoHS compliant2. 600V, 90&105 deg C
3. Multicores & TPE/PVC insulated

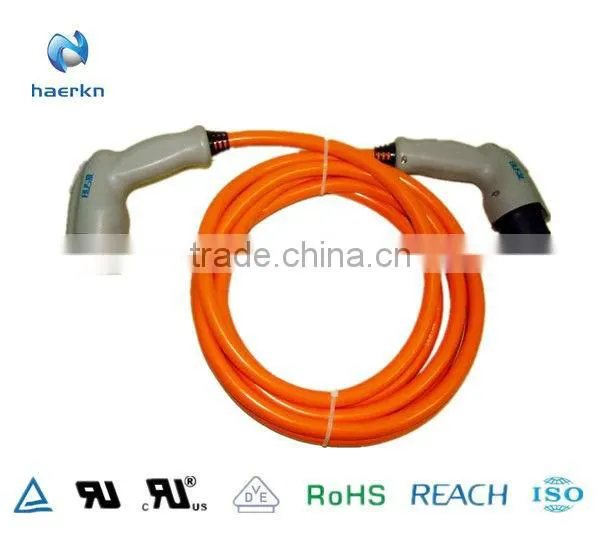

4. Application to EV charging station

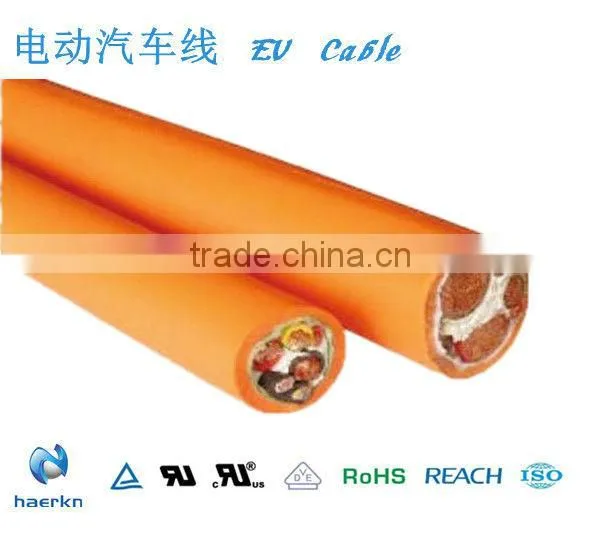

UL Style EVE/EVT/EVJT/EVJ Electric Vehicle Cable
Specification Data
Rated voltage:600V
Rated temperature:90&105°C
Specification range
Conductor size:18awg~500Kcmil
Color:According to the UL 62 standard
Core:≥2 cores(according to the clients’requirments)
Application
Widely used to all kinds of charging station, charging pile, electric vehicle power supply system connection.
Reference Standard UL 62
.
Conductor |
Insulator |
Jacket |
Electrical Characteristic |
Packing |
||||
AWG |
(Comps.n.x) φmm |
(Diameter) φmm |
(Insulation Thickness) mm |
(Insulator diameter) φmm |
(Jacket Thickness) /mm |
(Over Diameter) φmm |
(Realest, max Cuc, c 20°C) Ohm/km |
Mt/coils |
18×2C |
41/0.16 |
1.18 |
0.76 |
2.70 |
2.03 |
9.45 |
23.6 |
100 |
18×3C |
41/0.16 |
1.18 |
0.76 |
2.70 |
2.03 |
9.85 |
23.6 |
100 |
18×4C |
41/0.16 |
1.18 |
0.76 |
2.70 |
2.03 |
10.60 |
23.6 |
100 |
16×2C |
26/0.254 |
1.50 |
0.76 |
3.02 |
2.03 |
10.10 |
14.9 |
100 |
16×3C |
26/0.254 |
1.50 |
0.76 |
3.02 |
2.03 |
10.55 |
14.9 |
100 |
16×4C |
26/0.254 |
1.50 |
0.76 |
3.02 |
2.03 |
11.55 |
14.9 |
100 |
14×2C |
41/0.254 |
1.88 |
1.14 |
4.16 |
2.03 |
12.80 |
9.34 |
100 |
14×3C |
41/0.254 |
1.88 |
1.14 |
4.16 |
2.03 |
13.40 |
9.34 |
100 |
14×4C |
41/0.254 |
1.88 |
1.14 |
4.16 |
2.03 |
14.50 |
9.34 |
100 |
12×2C |
65/0.254 |
2.37 |
1.14 |
4.65 |
2.03 |
14.65 |
5.88 |
100 |
12×3C |
65/0.254 |
2.37 |
1.14 |
4.65 |
2.03 |
15.30 |
5.88 |
100 |
12×4C |
65/0.254 |
2.37 |
1.14 |
4.65 |
2.03 |
16.50 |
5.88 |
100 |

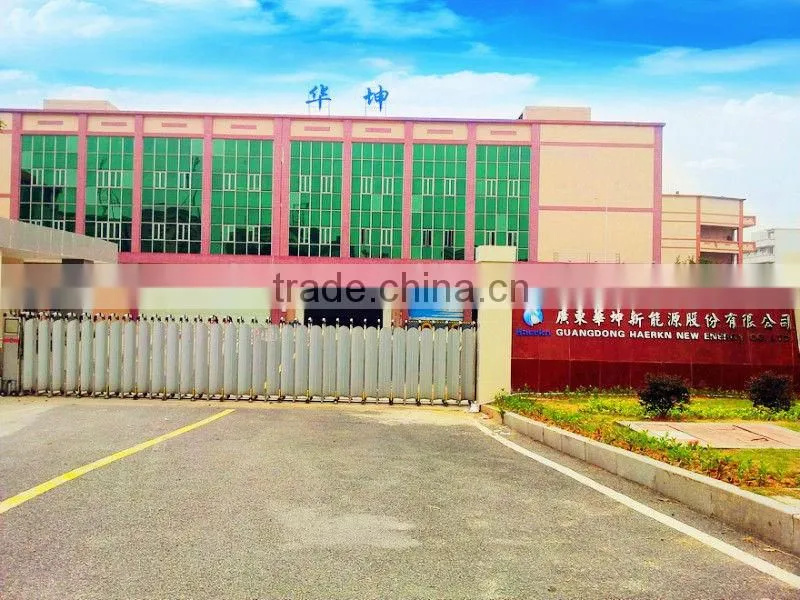

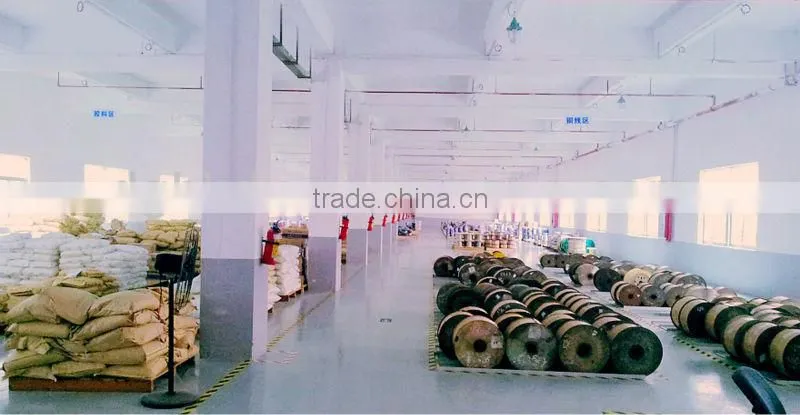

Factory Overview

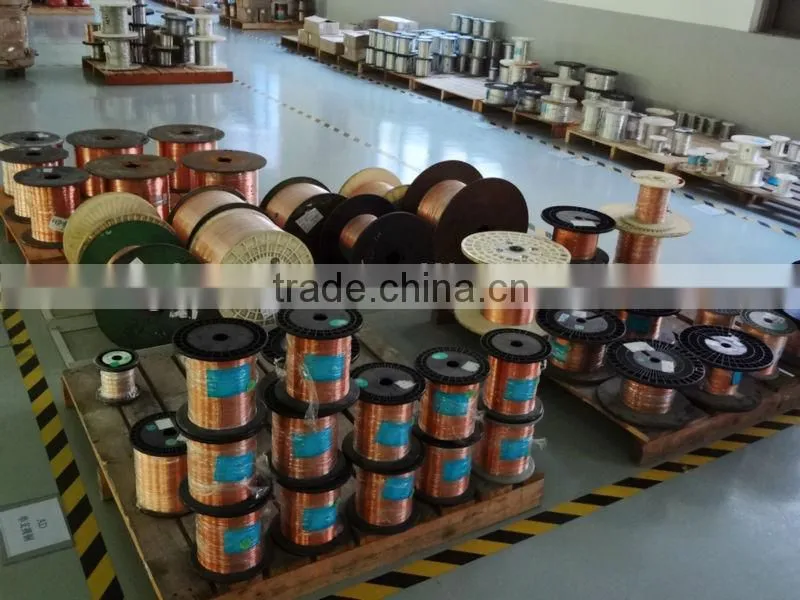

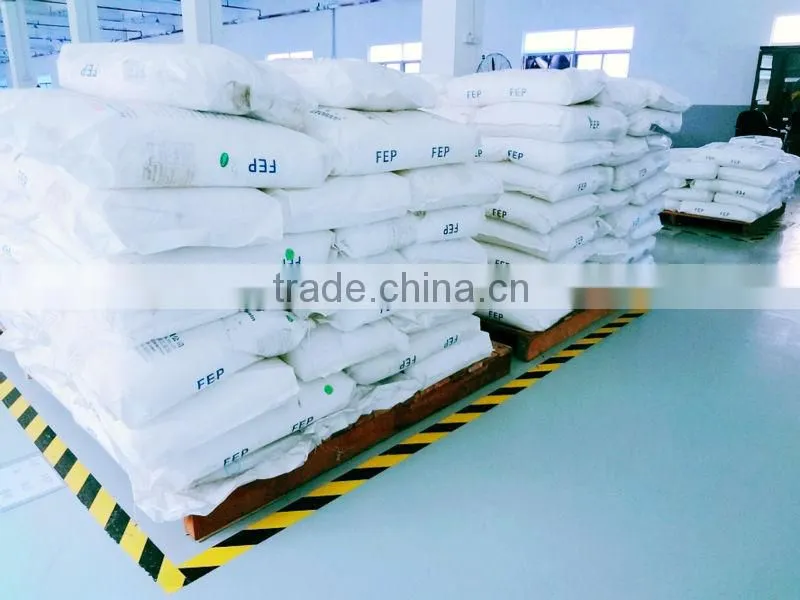

Original Material

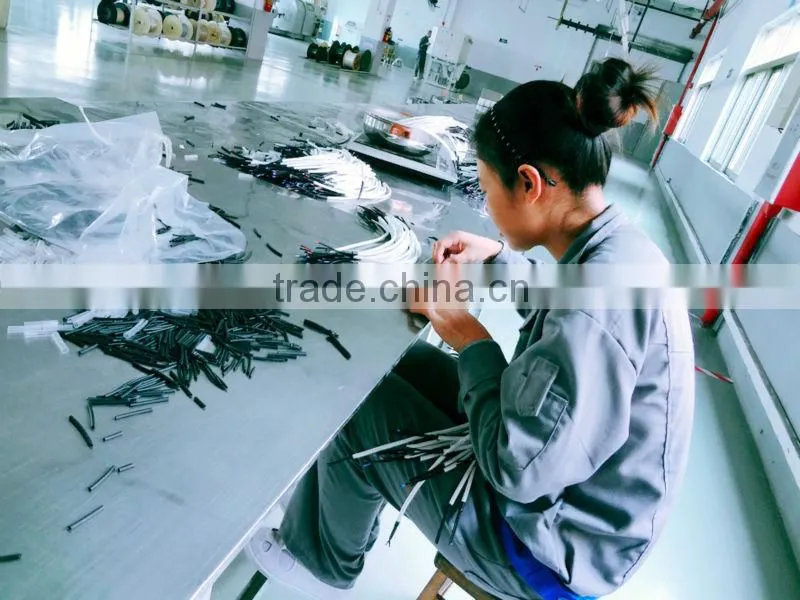

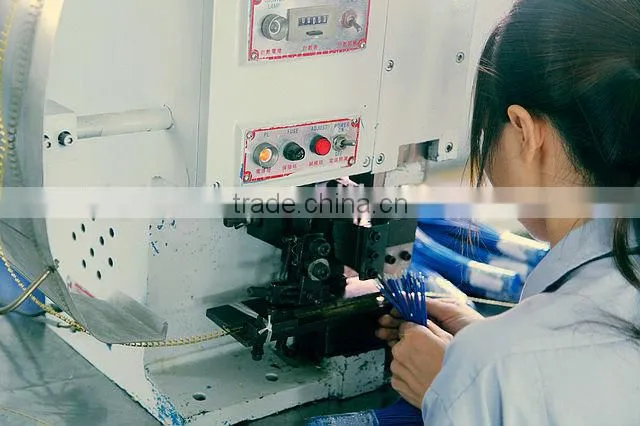

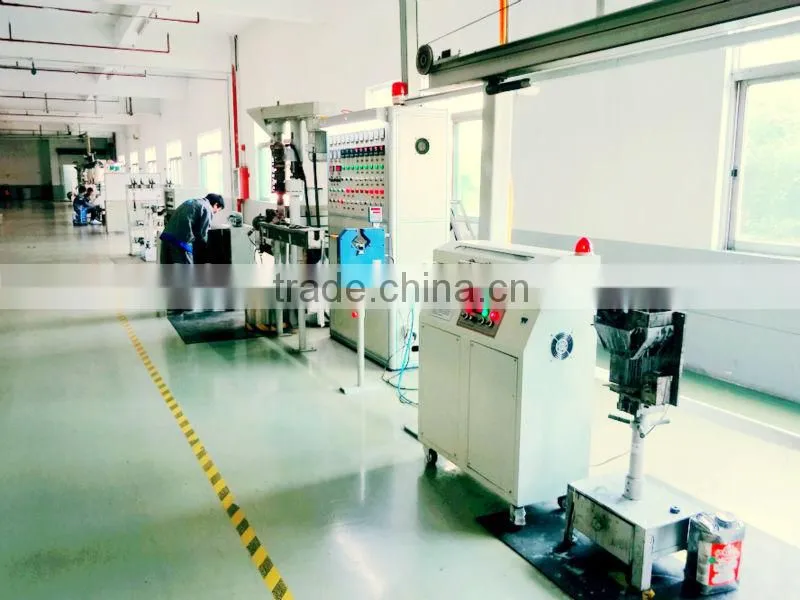

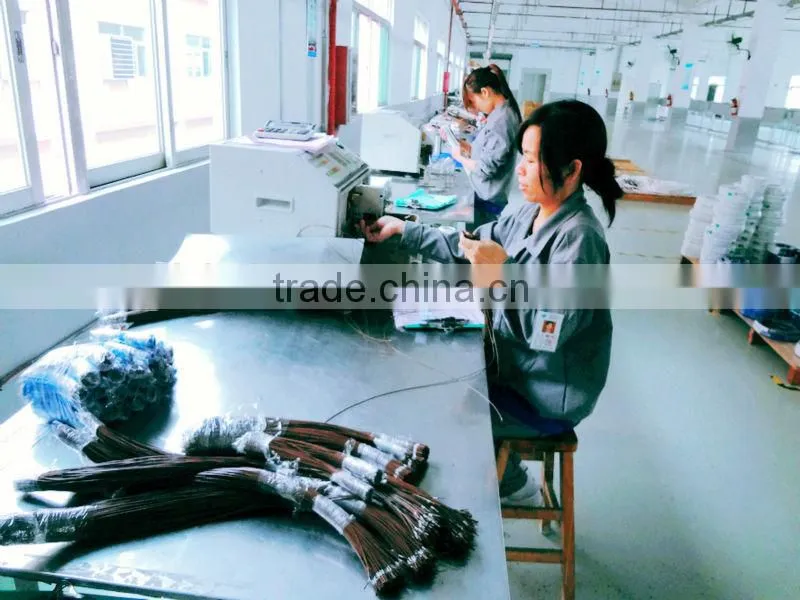

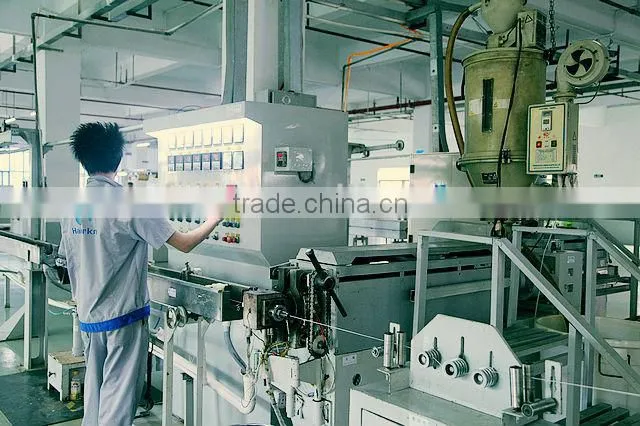

Manufacturing & processing

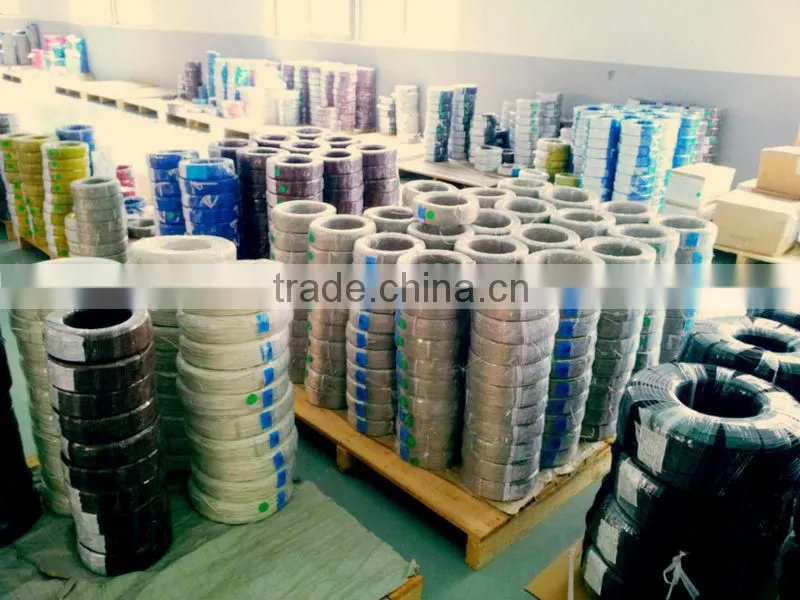

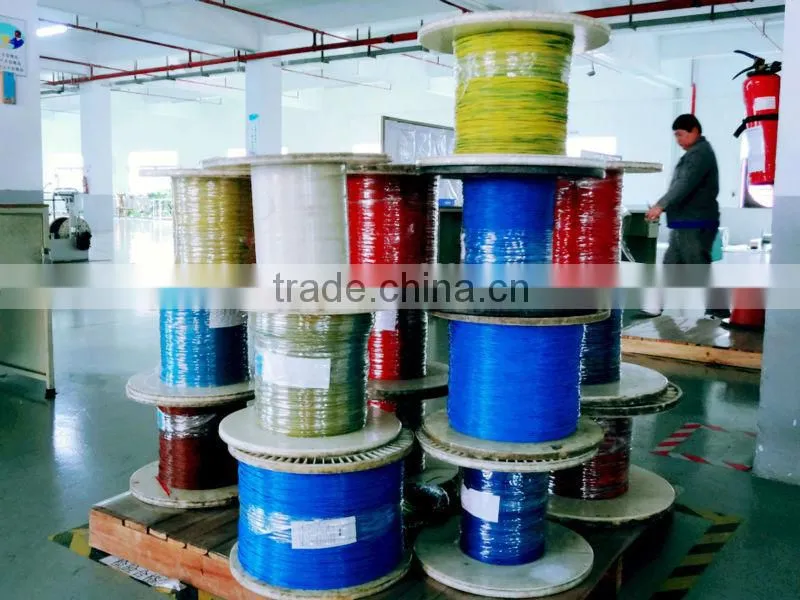

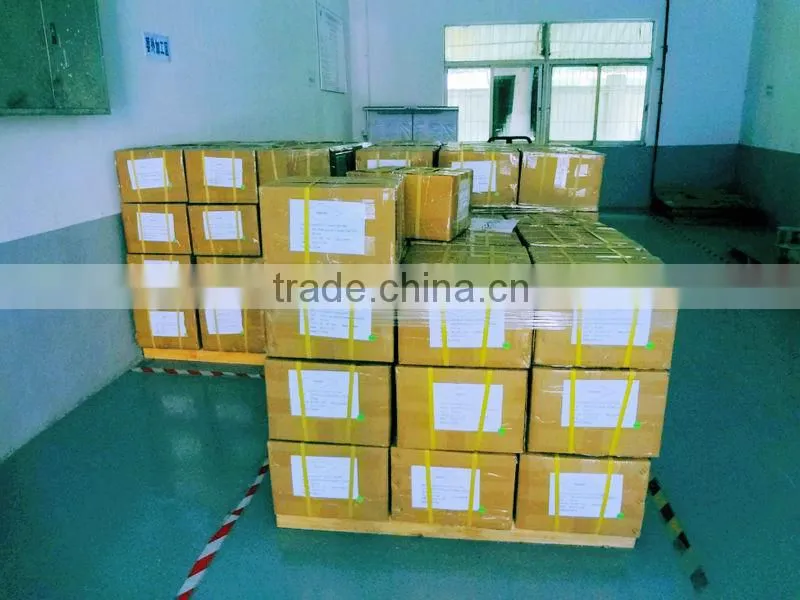

Finished products and Packing
