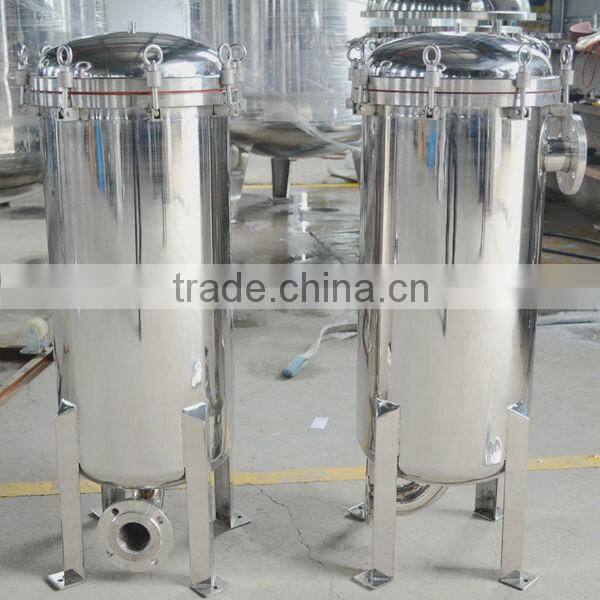

Stainless Steel Multi Bag Liquid Filter for Water Filtration System Plant

FOB Price

US$ 100 - 10,000 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Huaheng
Model Number	BFH850-9

Multi bags filters

1,Material:SUS304,SUS316L

2,Custom design services
3,Filtering accuracy:5-200 um
4,Easy to operate

Application

A kind of closed filter equipment, mainly apply to Ink, color paste, Dyes, Coating, Paint,

Electrical Material, NANO to filter.

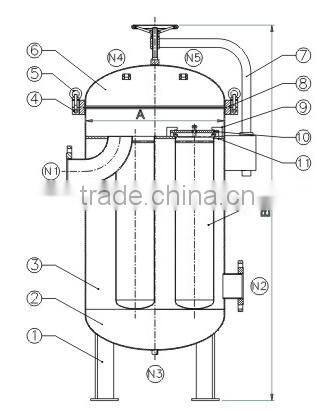

Multi Bag Filter Drawing

Customized products and OEM Service are available
body	stainless steel 304
surface treatment	polishing
body size	Φ850X2125mm
filtration precision	1-800μm
filtration area	4.14m²
flow rate	270m³/h
working temperature	40°C 100°F
max pressure	10bar 150psi
O-ring	Buna N
bag material	PE
inlet/outlet connections	flange
closure type	swing bolt flange

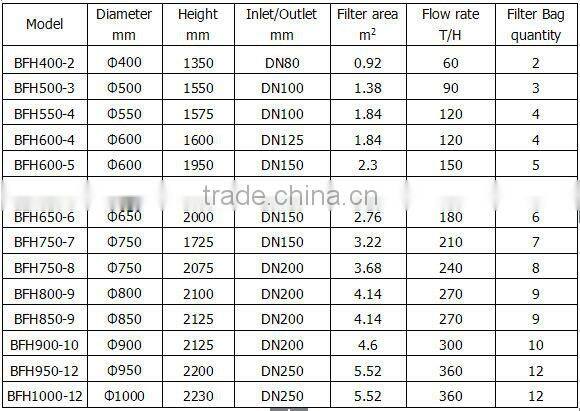

Techanical parameters

Packaging & Shipping
