Stainless Steel Multi Micron Bag Filters Swimming Pool Filter Industry Water Purifier
- Shanghai
- T/T Credit Card
You May Like
-
Stainless Steel Multi Bag Filter Textile Industry Use
-
Stainless Steel Multi Bag Liquid Filter for Water Filtration System Plant
-
HUAHENG Industrial Water Filter for Liquid 400GPM
-
HUAHENG Stainless Steel Water Filter Equipment 16bar
-
304 and 316 Stainless Steel Sanitary ss Bag Filter Housing
-
1 Micron Water Filter Housing
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Huaheng | |
| Model Number | BFH600-5 |
Product Description
Specifications
Simple installation and easy operation, small footprintWide use, suitable for any micro particle
More filtration area
Micron Multiple bag filtration system
Features
- Large liquid treat capacity
- Large dirt capacity
- High filter efficiency
- Simple operation
- Low cost maintenance
Character
- Simple and convenient operation, simple installation
- High precision filter which is used to every kind of particles or suspended solids, filtration can range from 1 to 800 microns.
- Effective filter area is big and 5 to 10 times compared with other same type filter equipment. That’s means it can reduce cost largely.
- Liquid treat capacity can reaches to 1 to 1000m3/H, the cost is little.
- The equipment can be used to coarse and precision filter
- High liquid treat capacity unit area, small filter resistance, high filter efficiency
- When you want to achieve to same filter efficiency, the cost of bag filter is small and life is long compared with precision filter and strainer filter
- The filter bag can be used repeating.

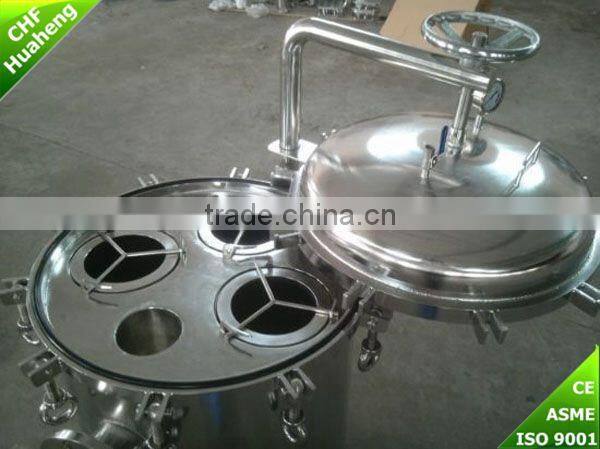

Internal structure
1. Each bag has a separate locking device with no side leakage opportunities
2. Integrated design of precision without distortion
3. Integrated precision with lifting device
4. O-ring seal, high-strength and quick bolts
Application
Paint, Beer, Vegetable oil, Pharmaceuticals, Cosmetics, Chemicals, Petroleum products, Chemicals, Electroplating solution, Milk, Mineral water, Hot solvents, Latex, Industrial water, Coatings and paints, Sugar, Molasses, Resins, Inks, Industrial waste water, Juice, Cooking oil, Wax, Precision filters and other industries.
Technical Parameters:
Model | Diameter mm | Height mm | Inlet/Outlet mm | Filter area m2 | Flow rate T/H | Filter Bag quantity |
BFH400-2 | Φ400 | 1350 | DN80 | 0.92 | 60 | 2 |
BFH500-3 | Φ500 | 1550 | DN100 | 1.38 | 90 | 3 |
BFH550-4 | Φ550 | 1575 | DN100 | 1.84 | 120 | 4 |
BFH600-4 | Φ600 | 1600 | DN125 | 1.84 | 120 | 4 |
BFH600-5 | Φ600 | 1950 | DN150 | 2.3 | 150 | 5 |
BFH650-5 | Φ650 | 1650 | DN150 | 2.3 | 150 | 5 |
BFH650-6 | Φ650 | 2000 | DN150 | 2.76 | 180 | 6 |
BFH750-7 | Φ750 | 1725 | DN150 | 3.22 | 210 | 7 |
BFH750-8 | Φ750 | 2075 | DN200 | 3.68 | 240 | 8 |
BFH800-9 | Φ800 | 2100 | DN200 | 4.14 | 270 | 9 |
BFH850-9 | Φ850 | 2125 | DN200 | 4.14 | 270 | 9 |
BFH900-10 | Φ900 | 2125 | DN200 | 4.6 | 300 | 10 |
BFH950-12 | Φ950 | 2200 | DN250 | 5.52 | 360 | 12 |
BFH1000-12 | Φ1000 | 2230 | DN250 | 5.52 | 360 | 12 |
| Customized products and OEM Service are available | |
| body | stainless steel 304 |
| surface treatment | bead blasting |
| body size | L600mm, W600mm, H1950mm |
| filtration precision | 1-800μm |
| filtration area | 2.3m² |
| flow rate | 150m³/h 660GPM |
| working temperature | 40°C 100°F |
| max pressure | 10bar 150psi |
| O-ring | Buna N |
| bag material | PE |
| inlet/outlet connections | flange |
| closure type | flange |
Please Kindly contact us for latest price!
