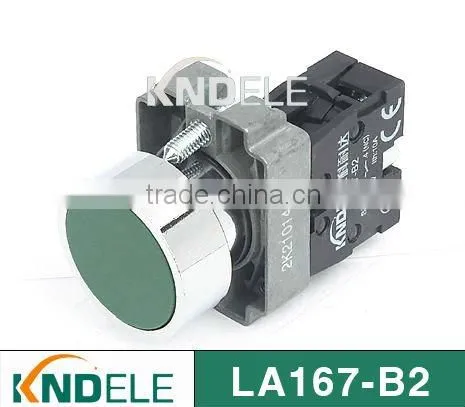

Help CenterFlat Waterproof Momentary Push Button Reset Switch ,silver Contact Grade A LA167-B2-BA31
Related Products
-
Plastic Head Waterproof Cover Momentary Automotive Push Button Switches With Silver Contact Grade A LA167-B2-BP42US$ 0.2 - 1MOQ: 10 Pieces -
Round Waterproof Push to Make Switch ,silver Contact Grade A LA167-B2-BL42US$ 0.2 - 1MOQ: 10 Pieces
-
Flat Waterproof Momentary Push Button Self-lock Switch ,grade A Silver Contact LA167-B2-BZ31NegotiableMOQ: 10 Pieces
-
40mm Mushroom Waterproof Emergency Stop Push Button Switch,silver Contact Grade A LA167-B2-BCUS$ 0.2 - 1MOQ: 10 Pieces
-
60mm Mushroom Automotive Push Button Switches Silver Contact Grade A LA167-B2-BRUS$ 0.2 - 1MOQ: 10 Pieces
Specifications
1. waterproof momentary push button reset switch2. CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description
We are a manufacturing push button switch organization.push button switch is our main product.We produce all kinds of push button switch . These are our company's waterproof momentary push button switch models in the picture , you can add X before the waterproof momentary push button switch models. If you want one waterproof momentary push button switch for sample ,please contact us .thank you.
| waterproof momentary push button switch Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| waterproof momentary push button switch Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| waterproof momentary push button switch Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Color | Contact Type | Reference | |
|
|
white | 1NO | B2-BA11 |
| black | 1NO | B2-BA21 | ||
| green | 1NO | B2-BA31 | ||
| yellow | 1NO | B3-BA51 | ||
| blue | 1NO | B4-BA61 | ||
| black | 1NC | B5-BA22 | ||
| red | 1NC | B6-BA42 | ||
| green | 1NO+1NC | B7-BA35 | ||
| red | 1NO+1NC | B8-BA45 |
Our waterproof momentary push button switches have waterproof function
Our waterproof momentary push button switches use the fireproof material which can protact it from burning
Our waterproof momentary push button switches screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The waterproof momentary push button switch contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
PACKAGING
1 If the waterproof momentary push button switch quantity is big enough ,we can do the packaging according to your requirement and in your brand .
2 Each waterproof momentary push button switch is sealed by polythelene bag .
3 Every box also is sealed by polythelene bag,protecting the waterproof momentary push button switch from water.Even though waterproof momentary push button switch is shipped by sea.
4 The waterproof momentary push button switch are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the waterproof momentary push button switch samples will be sent ASAP.
2 After confirming the payment ,the waterproof momentary push button switch samples will be sent by DHL,UPS,FEDEX and so on .
