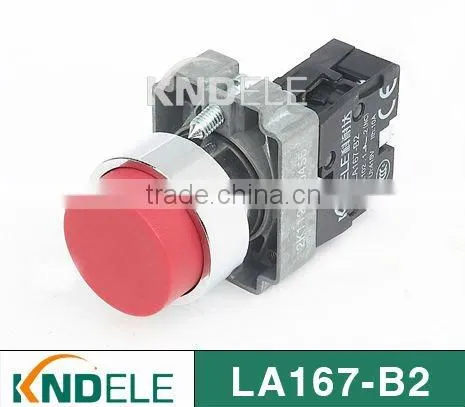

Help CenterRound Waterproof Push to Make Switch ,silver Contact Grade A LA167-B2-BL42
Related Products
-
Flat Waterproof Momentary Push Button Self-lock Switch ,grade A Silver Contact LA167-B2-BZ31NegotiableMOQ: 10 Pieces -
40mm Mushroom Waterproof Emergency Stop Push Button Switch,silver Contact Grade A LA167-B2-BCUS$ 0.2 - 1MOQ: 10 Pieces
-
60mm Mushroom Automotive Push Button Switches Silver Contact Grade A LA167-B2-BRUS$ 0.2 - 1MOQ: 10 Pieces
-
40mm Waterproof Red Mushroom Push on Push off Switch ,grade A ,silver Contact LA167-B2-BT,B2-BXUS$ 0.2 - 1MOQ: 10 Pieces
-
Waterproof Rotary Switch,2 or 3 Position Selector Switch With Long Handle Silver Contact Grade A LA167-B2-BJNegotiableMOQ: 10 Pieces
Specifications
1. major in push to make switch2. push to make switch
CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified Yellow Supplier by CHINT
Description
We are a manufacturing push to make switch organization. push to make switch is our main product.We produce all kinds of push to make switch . These are our company's push to make switch models in the picture , you can add X before the push to make switch models. If you want one push to make switch for sample ,please contact us .thank you.
| push to make switch Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| push to make switch Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| push to make switch Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Color | Color | Contact Type | Reference |
| | black | 1NO | B2-BL21 |
| green | 1NO | B2-BL31 | ||
| yellow | 1NO | B2-BL51 | ||
| blue | 1NO | B2-BL61 | ||
| black | 1NC | B2-BL22 | ||
| red | 1NC | B2-BL42 | ||
| green | 1NO+1NC | B2-BL35 | ||
| red | 1NO+1NC | B2-BL45 |
Our push to make switches have waterproof function
Our push to make switch use the fireproof material which can protact it from burning
Our push to make switch screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The push to make switch contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
PACKAGING
1 If the quantity is big enough ,we can do the push to make switch packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each push to make switch is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every push to make switch box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The push to make switches are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the push to make switch samples will be sent ASAP.
2 After confirming the payment ,the push to make switch samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details.
