Home > Electrical & Electronics > Switch > Push Button Switch > Plastic Head Waterproof Cover Momentary Automotive Push Button Switches With Silver Contact Grade A LA167-B2-BP42

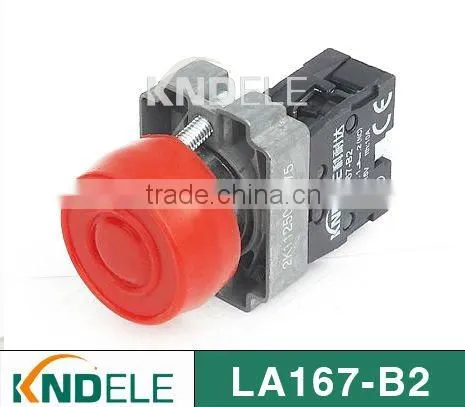

Plastic Head Waterproof Cover Momentary Automotive Push Button Switches With Silver Contact Grade A LA167-B2-BP42
US$ 0.2 - 1
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND push button switches
Model Number:
push button switches LA167-B2-BP42
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Round Waterproof Push to Make Switch ,silver Contact Grade A LA167-B2-BL42US$ 0.2 - 1MOQ: 10 Pieces -
Flat Waterproof Momentary Push Button Self-lock Switch ,grade A Silver Contact LA167-B2-BZ31NegotiableMOQ: 10 Pieces
-
40mm Mushroom Waterproof Emergency Stop Push Button Switch,silver Contact Grade A LA167-B2-BCUS$ 0.2 - 1MOQ: 10 Pieces
-
60mm Mushroom Automotive Push Button Switches Silver Contact Grade A LA167-B2-BRUS$ 0.2 - 1MOQ: 10 Pieces
-
40mm Waterproof Red Mushroom Push on Push off Switch ,grade A ,silver Contact LA167-B2-BT,B2-BXUS$ 0.2 - 1MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
KND push button switches
Model Number
push button switches LA167-B2-BP42
Protection Level
IP40 IP65
Max. Current
10A
Max. Voltage
415V
Specifications
1. major in push button switches and indicator2. CCC,CE ,ISO9001:2008,IAF,UKAS
2. certified as Yellow Supplier by CHINT
Description
These are our company's push button switches models in the picture , you can add X before the models. If you want one for sample ,please contact us .thank you.
| push button switches Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| push button switches Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| push button switches Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Color | Color | Contact Type | Reference |
|
|
black | 1NO | B2-BP21 |
| green | 1NO | B2-BP31 | ||
| yellow | 1NO | B2-BP51 | ||
| blue | 1NO | B2-BP61 | ||
| black | 1NC | B2-BP22 | ||
| red | 1NC | B2-BP42 | ||
| green | 1NO+1NC | B2-BP35 | ||
| red | 1NO+1NC | B2-BP45 |
|
1 The finger of comfort press to press | |||||
| position and switch to turn peration | ||||||
| 2 The function identify | ||||||
| 3 The auto aonnect ground | ||||||
| 4 Defend the finger get an electric | ||||||
| shock a design | ||||||
| push button switches | ||||||
| Plate chrome metals a head and install a base | ||||||
| The quakeproof bolt carry son | ||||||
| Hard ,credibility ,as long as | ||||||
| 3000000time machine life span | ||||||
| As long as 50000 hours of the service life | ||||||
|
push button switches | |||||
| Button head -touch some base a construction | ||||||
| The button head hold antomatic is in open the | ||||||
| bore | ||||||
| The button head revolve certain angle,card go | ||||||
| into touch some base | ||||||
| push button switches | ||||||
| 2metal bolt fix quake proof | ||||||
| The open type connect line to carry and have | ||||||
| never need to prepare loose bolt | ||||||
| push button switches | ||||||
| Electricity function | ||||||
| Most can pack 1-6 pay to touch some mold piece | ||||||
Our push button switches have waterproof function
Our push button switches use the fireproof material which can protact it from burning
Our push button switches screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The push button switches contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
