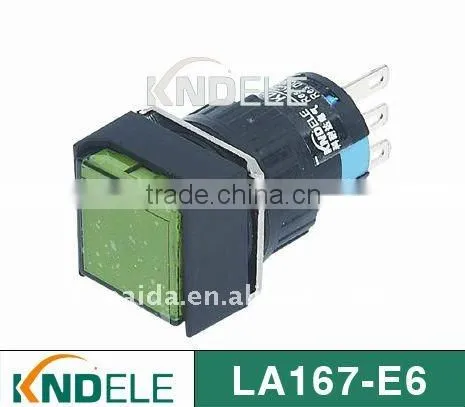

Square Head Button

Name: Square Head Button
Brand: kenaida
SKU: 133597927
Availability: InStock

Zhejiang Kenaida Pushbutton Co., Ltd.

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

kenaida

Model Number:

LA167-E6

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name kenaida

Model Number LA167-E6

Max. Current 0.1A

Max. Voltage 250V

Mechanical Life 200000 times

Specifications

1.brand:kenaida
2.Name:square head button
3.Certificate:CE,ISO9000
tection level:IP40,IP65
5.Lowest price

Contact Rating	3A, 250V AC
Contact Resistance	50mΩ
Insulation Resistance	1,000mΩ
Dielectric Strength	1,500V
Life Expectancy(Mechanical)	25,000 for latching, 50,000 for moment
Life Expectancy(Electrical)	100,000 for latching, 1,000,000 for momentary
Mechanical Configuration:	latching&momentary
Pushbutton Head	round, mushroom, square, rectangular
	big square, big rectangular
Cap Colors	red, green, yellow, white, blue
Input Voltage of Lamp	neon lamp 110V, 220V
	LED 2V,6V,12V,24V,36V
Package:	50pcs/box

Performance Characteristics
Operational temperation		-25°C - +55°C (No frozen)
		Make Airiness around the product
Operational humidity		45- 85%RH (No frost)
Contact Resistance		≤50MΩ
Insulation Resistance		≥100MΩ
	between the contact and the lamp pin	2000V,AC50HZ,1min
	between the homopolar terminal	1000V,AC50HZ,1min
	between different terminal	2000V,AC50HZ,1min
Endure Dibratility		50HZ,1.2mm
Endure Impact		≥10g
Life	auto-return button	1000000
	auto-return button,selector button	500000
	emergency stop button , key button	100000
