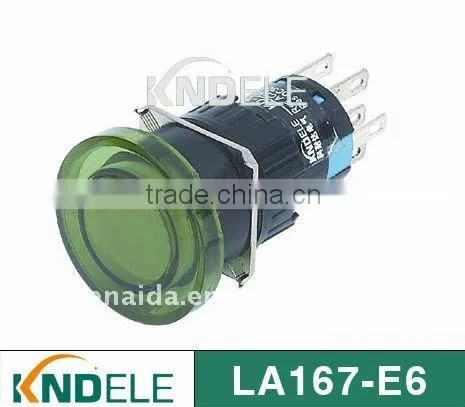

Help Center16mm Mushroom Button With Lamp
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
kenaida
Model Number:
XD16-11MD
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
kenaida
Model Number
XD16-11MD
Max. Current
10A
Max. Voltage
600V
Specifications
1.brand:kenaida2.Name:auto-resetting mushroom button
3.Certificate:CE,ISO9000
tection level:IP40,IP65
5.Lowest price
| Rate Value | ||||
| Rated Current lth(A) | 5A | |||
| Rated Voltage (V) | 24V | 125V(110V) | 250V(220V) | |
| Direct-Current | 1A | 0.2A | 0.1A | |
| Alternating Current | P.F=1 | 5A | 3A | |
| P.F=0.7 | 3A | 2A | ||
LED | |||||
| Type | Bidirection LED | Neon Bulb | |||
| Rated Voltage | AC/DC 6V | AC/DC 12V | AC/DC 24V | AC110V | AC220V |
| AC/DC 110V | AC/DC220V | ||||
| Color | |||||
| LED Life | 30000hours | 20000hours | |||
| Performance Characteristics | |||
| Operational temperation | -25°C - +55°C (No frozen) | ||
| Make Airiness around the product | |||
| Operational humidity | 45- 85%RH (No frost) | ||
| Contact Resistance | ≤50MΩ | ||
| Insulation Resistance | ≥100MΩ | ||
| between the contact and the lamp pin | 2000V,AC50HZ,1min | ||
| between the homopolar terminal | 1000V,AC50HZ,1min | ||
| between different terminal | 2000V,AC50HZ,1min | ||
| Endure Dibratility | 50HZ,1.2mm | ||
| Endure Impact | ≥10g | ||
| Life | auto-return button | 1000000 | |
| auto-return button,selector button | 500000 | ||
| emergency stop button , key button | 100000 | ||
