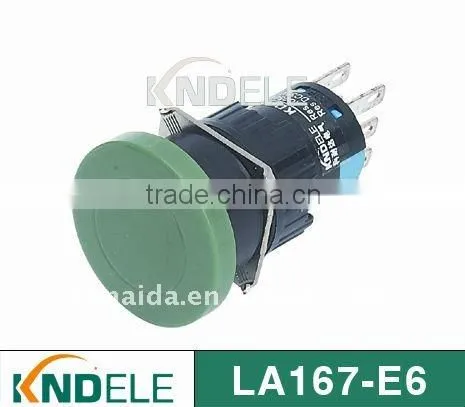

Help CenterAuto-resetting Mushroom Button
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
kenaida
Model Number:
XD16-11M
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
kenaida
Model Number
XD16-11M
Max. Current
10A
Max. Voltage
600V
Specifications
1.brand:kenaida2.Name:auto-resetting mushroom button
3.Certificate:CE,ISO9000
tection level:IP40,IP65
5.Lowest price
| Contact Rating | 3A, 250V AC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1,000mΩ |
| Dielectric Strength | 1,500V |
| Life Expectancy(Mechanical) | 25,000 for latching, 50,000 for moment |
| Life Expectancy(Electrical) | 100,000 for latching, 1,000,000 for momentary |
| Mechanical Configuration: | latching&momentary |
| Pushbutton Head | round, mushroom, square, rectangular |
| big square, big rectangular | |
| Cap Colors | red, green, yellow, white, blue |
| Input Voltage of Lamp | neon lamp 110V, 220V |
| LED 2V,6V,12V,24V,36V | |
| Package: | 200pcs/box |
| Rate Value | ||||
| Rated Current lth(A) | 5A | |||
| Rated Voltage (V) | 24V | 125V(110V) | 250V(220V) | |
| Direct-Current | 1A | 0.2A | 0.1A | |
| Alternating Current | P.F=1 | 5A | 3A | |
| P.F=0.7 | 3A | 2A | ||
Performance Characteristics | |||
Operational temperation |
-25°C - +55°C (No frozen) | ||
| Make Airiness around the product | |||
Operational humidity |
45- 85%RH (No frost) | ||
Contact Resistance |
≤50MΩ | ||
Insulation Resistance |
≥100MΩ | ||
| between the contact and the lamp pin | 2000V,AC50HZ,1min | ||
| between the homopolar terminal | 1000V,AC50HZ,1min | ||
| between different terminal | 2000V,AC50HZ,1min | ||
Endure Dibratility |
50HZ,1.2mm | ||
Endure Impact |
≥10g | ||
| Life | auto-return button | 1000000 | |
| auto-return button,selector button | 500000 | ||
| emergency stop button , key button | 100000 | ||
| Installation hole size | |||
| Type | A | B | |
| Circle | ≥18mm | ≥18mm | |
| Square | ≥18mm | ≥18mm | |
| Rectangle | ≥18mm | ≥24mm | |
| Mushroom | ≥24mm | ≥24mm | |
| Big Square | ≥24mm | ≥24mm | |
| Big Rectangle | ≥18mm | ≥24mm | |
| mushroom button | E6-11M |
|
auto-resetting |
| E6-22M | auto-resetting | ||
| auto-lock mushroom button | E6-11MT | auto-locking | |
| E6-22MT | auto-locking |
