Specifications
0.05-0.12 mm extremely fine copper wire drawing machine1,making wire from 0.12-0.45 to 0.05-0.12mm
2,with CE,ISO,TUV

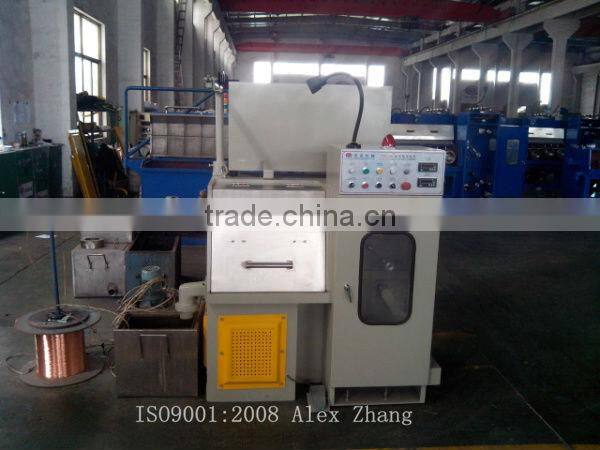

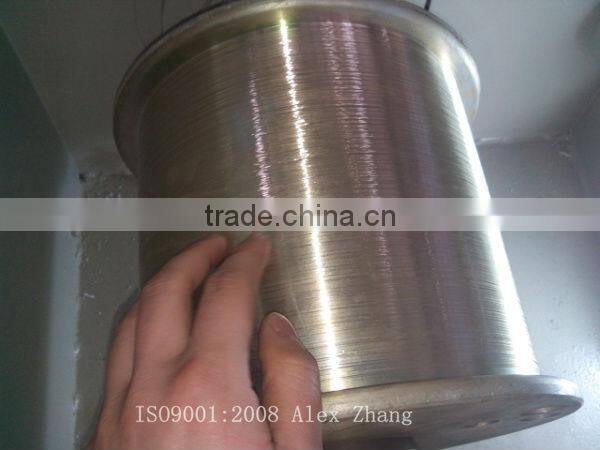

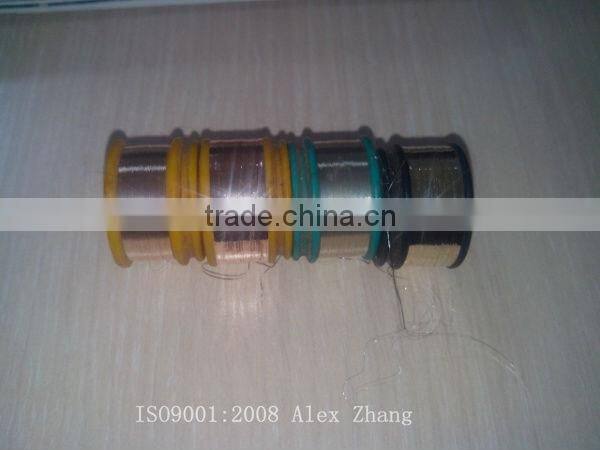

0.05-0.12 mm Extremely Fine copper Wire Drawing Machineis used for drawing fine copper wire from 0.12-0.45mm to 0.05-0.12mm.
2. Technical parameter:
Machine type | JCJX-20D fine wire drawing machine |

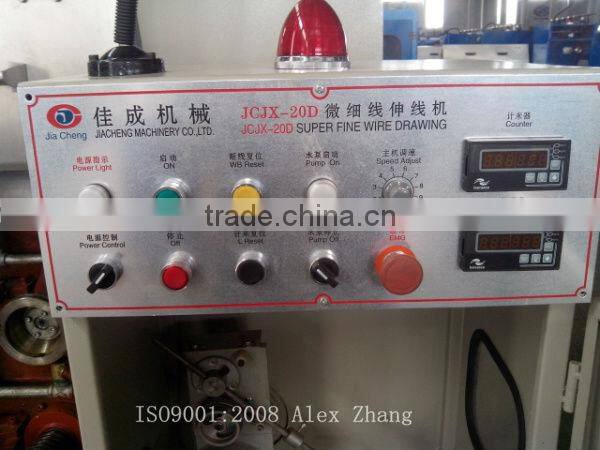

Control system | Traditional analog type |
Inverter control | Dual inverter control |
Drawing dies No./max. | 20 |
Inlet diameter | Ø 0.12- 0.45mm |
Out diameter | Ø0.05- 0.12mm |
Drawing line speed | 1800mpm/max |
Slip ratio of m/c | 15% |
Fix speed capstan slip ratio | 8% |
Frame | Weld by steel plate |
Capstan | Ceramic plasma capstan |
Main motor | 4kw AC |
Spooler motor | 2.2KW |
Capstan dia.(max) | Ø |
Fix speed capstan dia. | Ø 120mm |
Dia.of annealing | Ø 250mm |
Annealing voltage | DC 0-60V |
Annealing current | DC 250A |
Protection type | Steam or nitrogen |
Spool bobbin size | Ø 300mm OR according to customers |
Send-out method | Shaft type |
Traversing unit | Synchronous +belt |
Transmission type | By flat belts |
Spooler control | PID Synchronous spooler |
Detecting device | Weight balance by swing arm |
Tension control | Weight balance type |
Max. loading capacity | 50kg |
Lubrication type | Spray type |
Brake | Magnetic brake |
Power source | 380v 50/60 HZ |
Lubricant oil capacity | 40 liter/minute |
3. Advantage:
1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2).This fine wire drawing machine’s body and other key components and parts are produced by our own factory, quality is reliable
3).High tension durably flat belt gain convenient replacement and low noise in operating.
4). This fine wire drawing machine use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,France Schneider electric and Shenzhen Inovance inverter.
5).we have gotten ISO 9001:2008,CE and TUV certificate.
4.After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.
attend the exhibition
Sincerely welcome you visit our factory !
