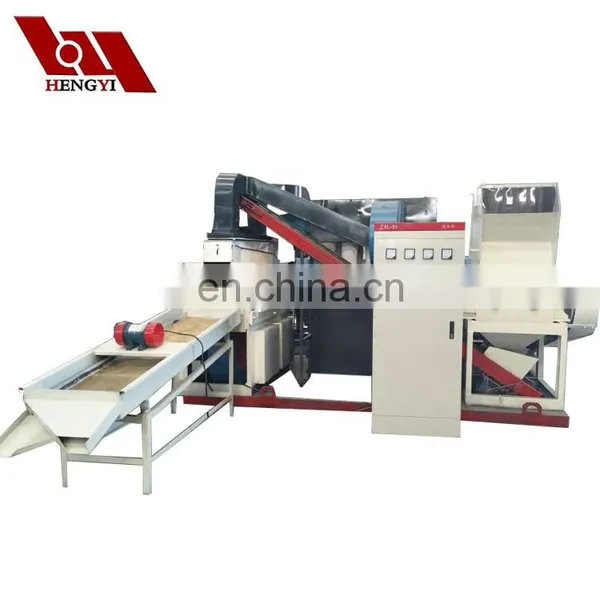

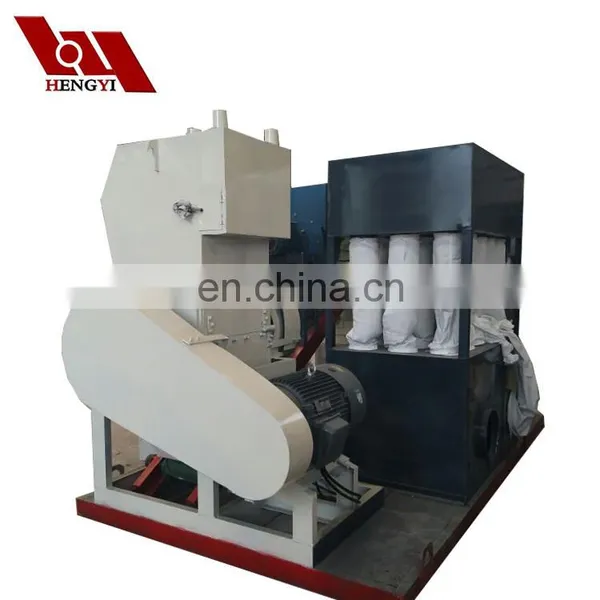

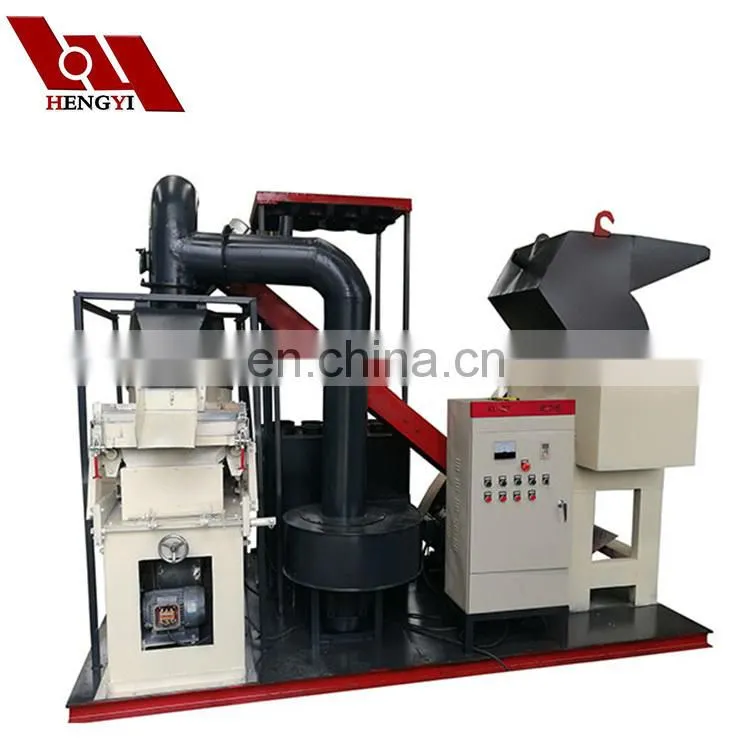

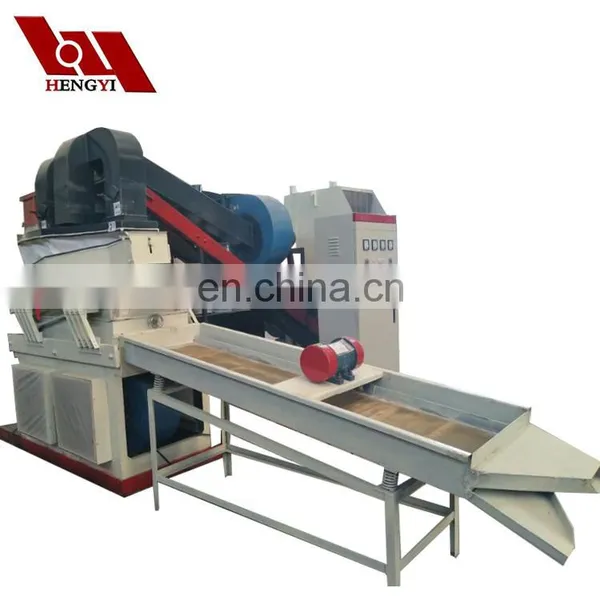

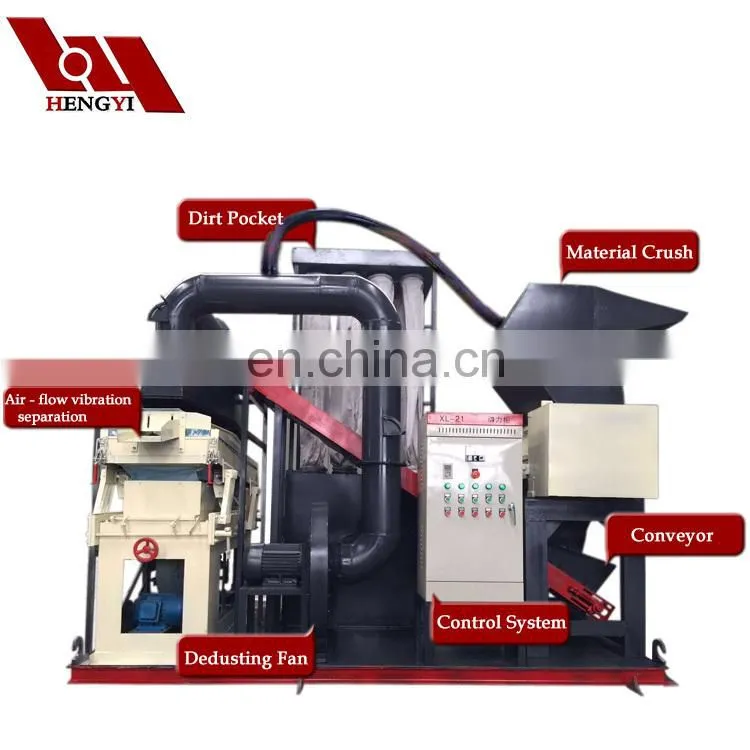

1.Introduction of scrap copper wire stripping machine
scrap copper wire stripping machine(also named waste electric wire and cable recycling equipment)is a kind of machinery used to crush waste copper wire and separete copper and plastic.The copper is one of the environment-frendly type equipment,and this machine is easy to operate,it just needs 1-2 workers to operate,greatly saving your labor cost.
2.Features of scrap copper wire stripping machine
*wide application:to recycle various kinds of copper wire and cables with diameter between 0.2-20mm.
*Novdel design,compact structure,low power consumption and stable performance.
*Environment-friendly:it has solved the pollution caused by the buring of the copper wires.With high copper recycling rate of 99.9% at least,the device is with excellent dust removal performance because of the adoption of the fully closed production model.
3.Technical Specifications of scrap copper wire stripping machine
| Model | HYTM-400 | HYTM-600 | HYTM-800 | HYTM-1000 |
| Capacity(kg/h) | 150-180 | 300-500 | 500-700 | 800-1000 |
| Dimmension(mm) | 2000*2000*2300 | 3000*1800*2400 | 3200*1800*2400 | 4000*2000*2400 |
| Weight(kg) | 1500 | 1800 | 2200 | 2800 |
| Separating Rate | 99% | |||
| Voltage |
220V/380V (voltage can be customized by customer's requirements) |
|||
| Crusher Power(kw) | 18 | 18.5 | 22 | 25 |
| Total Power(kw) | 25 | 28 | 37 | 45 |
4.Raw material of scrap copper wire stripping machine
Used for kinds of auto electrical wire,motorcycle wire.Storage battery bike wire.A television wire,washing machine and Refrigerator wire,Air conditioning and other house hold appliance wire,Telecommunications wire,Computer wire and so on.

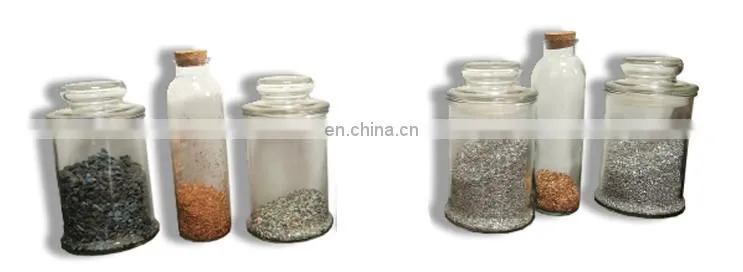

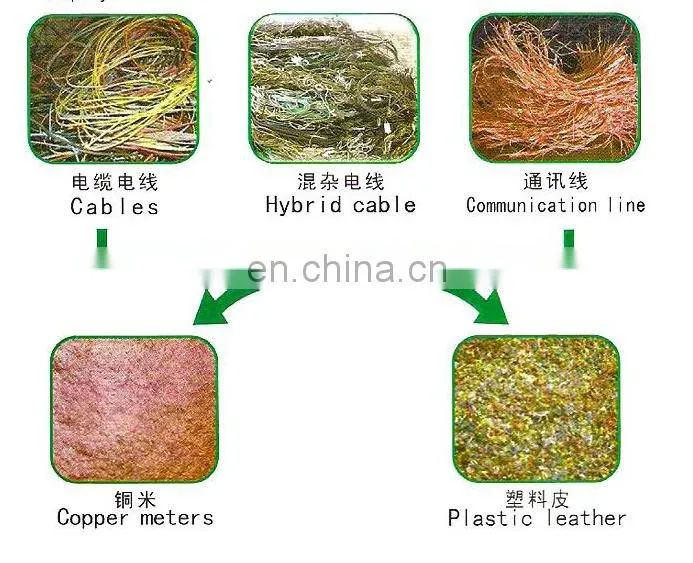

5.Final products of scrap copper wire stripping machine
Processing of scrap copper wire stripping machine
Firstly,the scrap copper cable is crushed by the first crusher into about 10mm,then the mixture will delivered to the second crusher to be recrushed into 3-5mm,later the copper will be separated from PVC plastic by vibrating machine copper cable wire granulator is effective for recycling copper and PVC plastic from scrap wires with a high recycling rate of 99%.

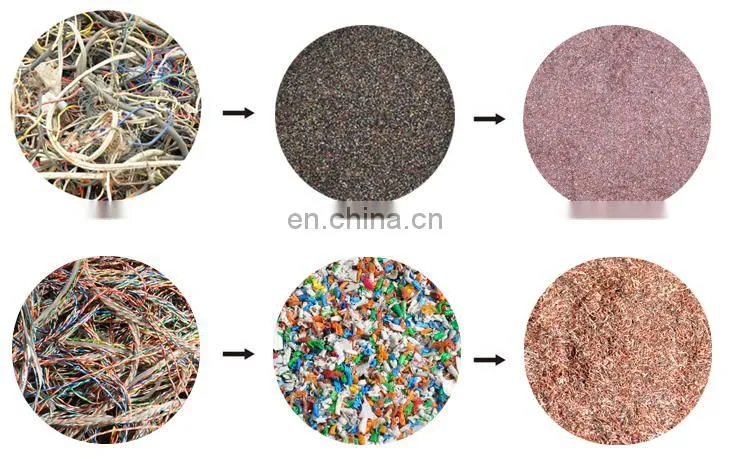

Production flow chart of scrap copper wire stripping machine

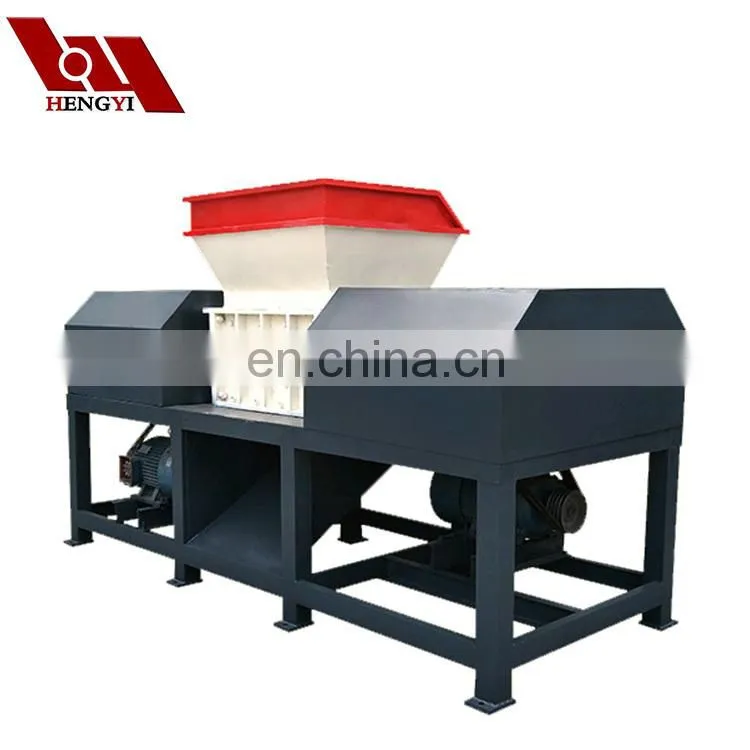

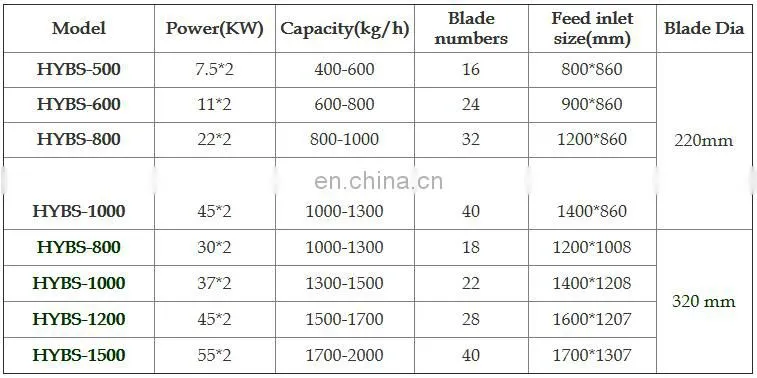

Shredder machine
Double shaft shredder is a kind of machine used to deal with rough raw materials or leftover material to make the size smaller,which is widely used in plastic recycle industry.The represent sample is rive the plastic and rubber leftover materials as the raw matetials to remake plastic bottle,tyre,plastic dustbin etc.
>1. Where is your factory ?
Our factory is located in Gongyi City, nearby the Lianhuo Highway.
>2. How long is your after-sales service ?
We provide 12 months quality guarantee from the date of delivery.
Welcome to contact us if you have any questions.
>3. How long will it take to deliver ?
Usually within 15 working days after receiving the deposit.
>4. What is the Mode of transportation ?
LCL and FCL by ship.
>5. What’s the payment terms ?
T/T, western union, Alibaba Trade Assurance, etc.
Our Service Philosophy
1.Pre-sale services: enthusiasm
Provide you the proper plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: faithfulness
To establish long term relationship with you, we will regularly pay return visit to customers.
→ Please send your inquiry with details ,such as cable type,diameter,insulation thickness and so on, so I can help you to meet your specific needs in advance.
