Cable Packing Equipment - Automatic Coiling and Manual Wrapping Machine

FOB Price

US$ 20,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	JIACHENG - Automatic Coiling and Manual Wrapping Machine
Model Number	JCJX-Automatic Coiling and Manual Wrapping Machine		Usage	Winding

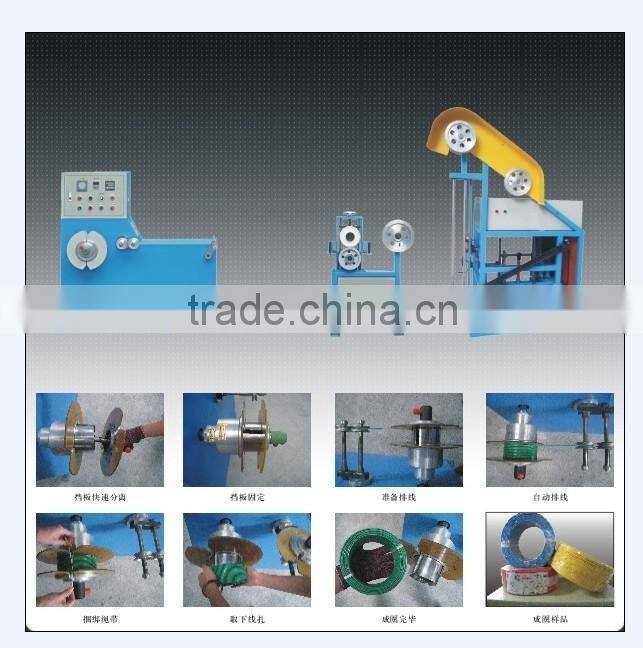

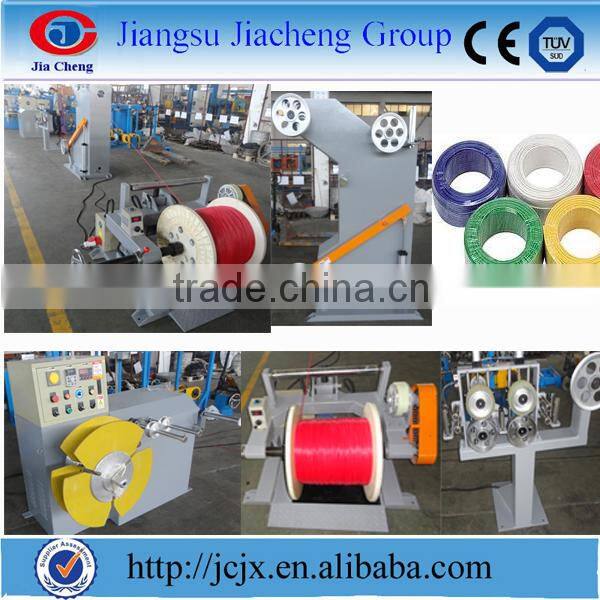

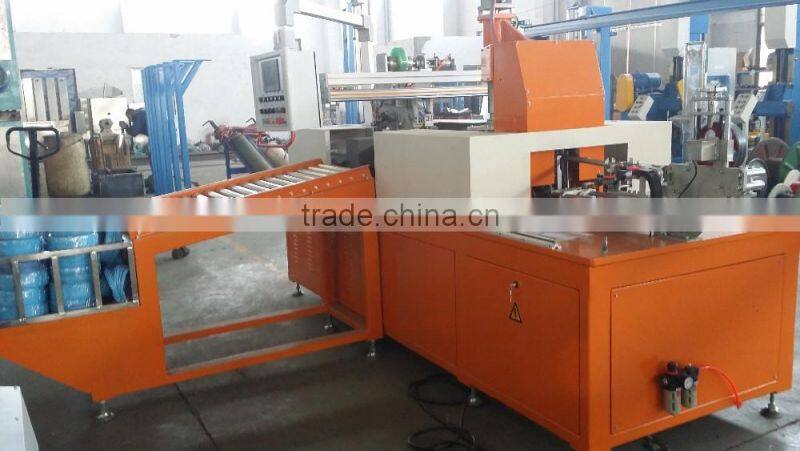

JCJX- Cable Packing Equipment - automatic coiling and Manual wrapping machine

1. function

high speed wrapping and packing machine for wire & cable coils with PVC, PE film, PP weave tape or paper

2.features

1. high speed winding wrapping with PVC, PE film, PP weave tape or paper

2. touch screen + human-machin interface make it easy to operate

3. intellect arm carry wire coils, which is driven by DC motor, carrying and turn coil smoothly

4. 99 types of coil wrapping data in the PLC memory can be input into the machine.

3. specification:(mm)

Model	Φ630mm	Φ1250mm	Φ1250-Φ1600mm
Applicable wire range	0.5-6mm2	10-70mm2	10-240mm2
Traversing tension	Automatically
Main motor speed	0-600 r/min	0-300 r/min	0-300 r/min
Loading bobbin type	Lever-type	Electric type	Electric type
Pay-off bibbin model	Φ400-630mm	Φ800-1250mm	Φ1000-1600mm
Tapping model	Outside Dia .≤320mm Inner Dia. 120mm Width30-100mm	Outside Dia.≤600mm Inner Dia. 200300mm Width60-150mm 150-200mm	50-250
Power	2.2kw	3kw	4kw
Meter counter structure	Type of wheel pressure	Double wheel type with air pressure	Double wheel type with air pressure

Induction type/ Measurement accuracy	Rotary encoder/0.5%	Rotary encoder/0.5%	Rotary encoder/0.5%
