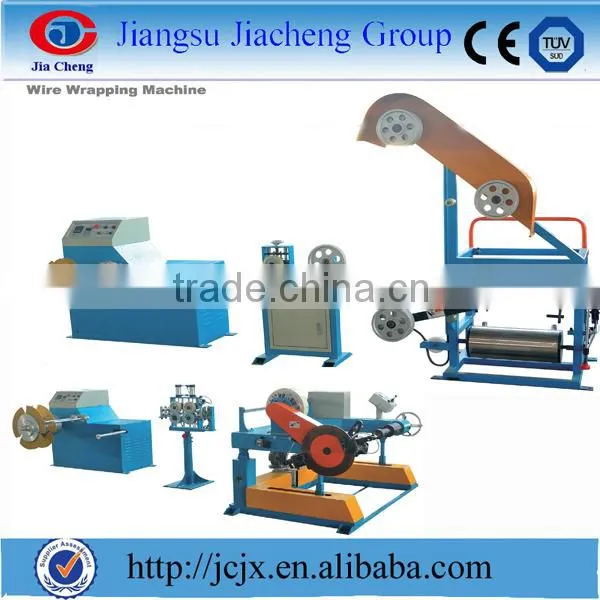

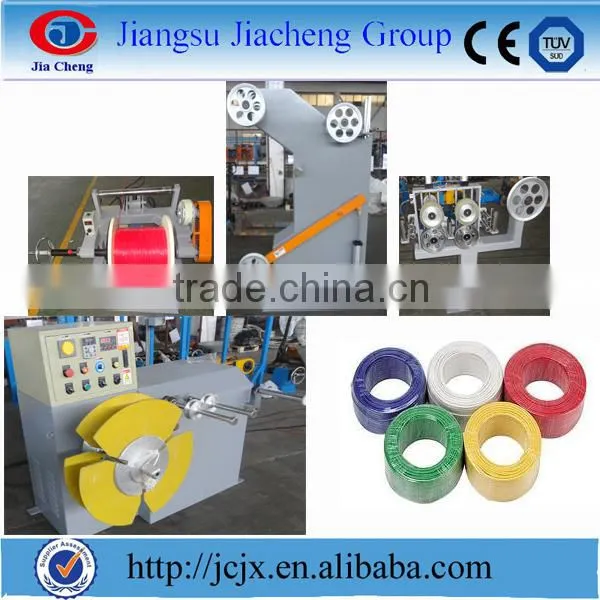

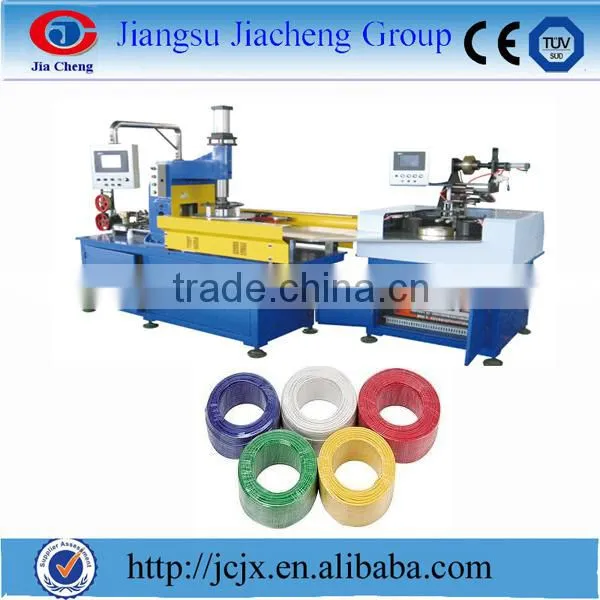

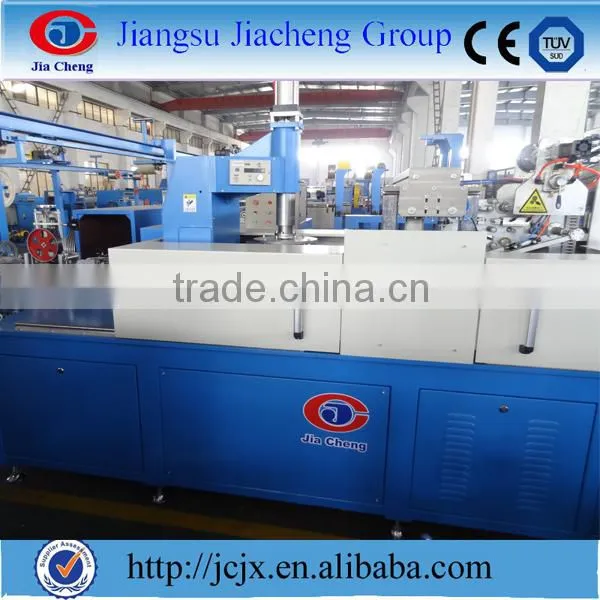

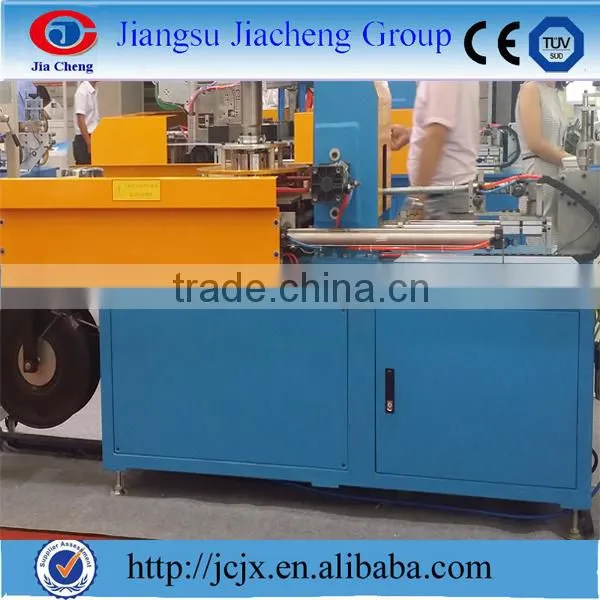

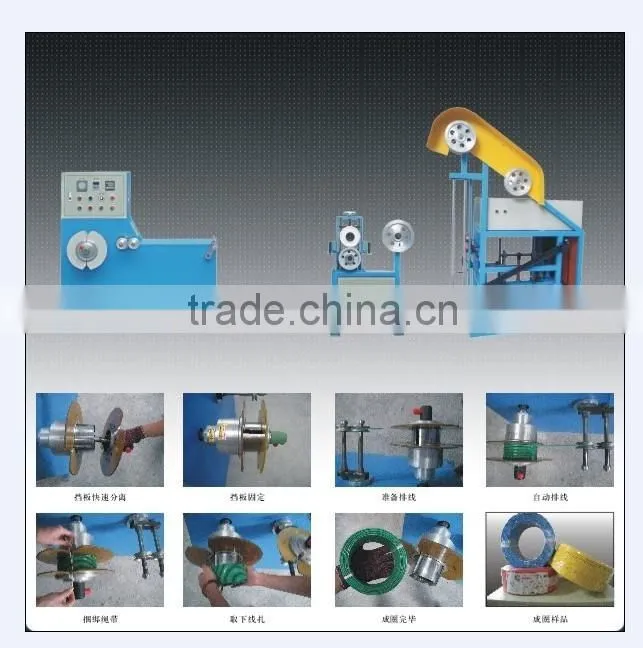

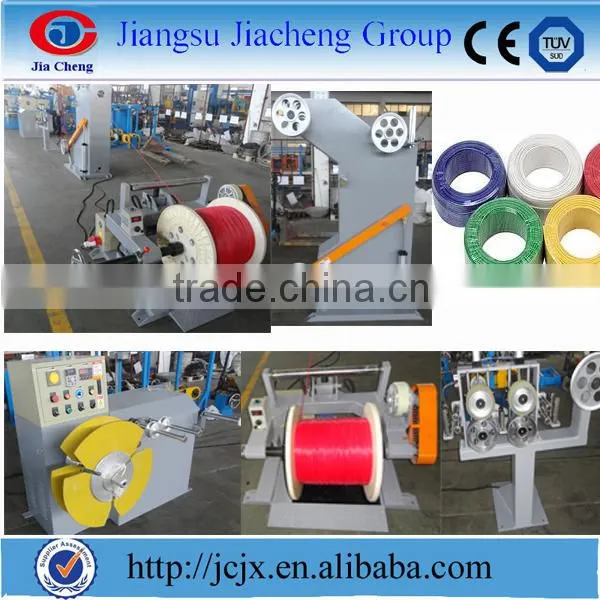

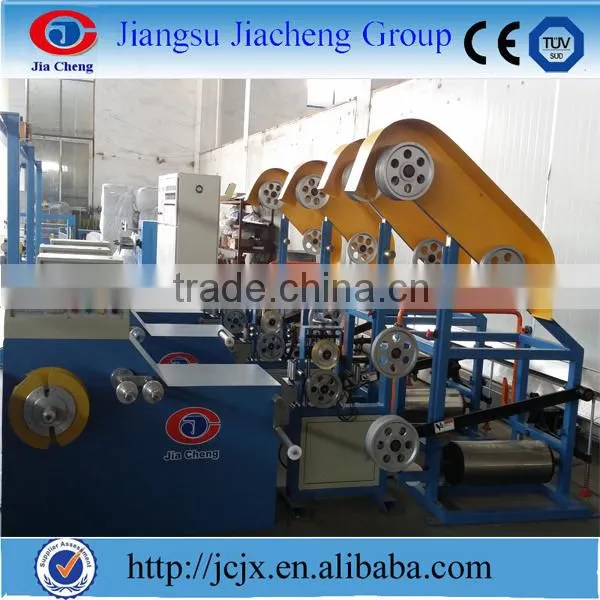

JCJX-1250 10mm2-70mm2 Prefect Performance BV Solid Cable Wire Coiling and Package Machine
1. function:
high speed wrapping and packing machine for wire & cable coils with PVC, PE film, PP weave tape or paper
2.features:
1. high speed winding wrapping with PVC, PE film, PP weave tape or paper
2. touch screen + human-machin interface make it easy to operate
3. intellect arm carry wire coils, which is driven by DC motor, carrying and turn coil smoothly
4. 99 types of coil wrapping data in the PLC memory can be input into the machine.
3. specification:(mm)
| Model | Φ630mm | Φ1250mm | Φ1250-Φ1600mm |
| Applicable wire range | 0.5-6mm2 | 10-70mm2 | 10-240mm2 |
| Traversing tension | Automatically | ||
| Main motor speed | 0-600 r/min | 0-300 r/min | 0-300 r/min |
| Loading bobbin type | Lever-type | Electric type | Electric type |
| Pay-off bibbin model | Φ400-630mm | Φ800-1250mm | Φ1000-1600mm |
| Tapping model |
Outside Dia .≤320mm Inner Dia. 120mm Width30-100mm |
Outside Dia.≤600mm Inner Dia. 200300mm Width60-150mm 150-200mm |
50-250 |
| Power | 2.2kw | 3kw | 4kw |
| Meter counter structure | Type of wheel pressure |
Double wheel type with air pressure |
Double wheel type with air pressure |
|
Induction type/ Measurement accuracy |
Rotary encoder/0.5% | Rotary encoder/0.5% | Rotary encoder/0.5% |
| model | H | OD | Single side | ID(MINI) | Coil weight | wrapping materail | thickness | Width |
| JCJX-0836 | 40-80 | 180-360 | 30-120 | 120 | max 25kg | PVC, PE film | 0.04-0.07 | 45/55 |
| JCJX-1246 | 50-120 | 200-460 | 40-160 | 140 | max 35kg | PVC, PE film | 0.04-0.07 | 45/55 |
| JCJX-1860 | 60-180 | 200-600 |
40-160 | 180 | max 40kg | PVC, PE film | 0.04-0.07 | 45/55 |
| JCJX-2060 | 60-200 | 220-600 | 60-200 | 180 | max 100kg |
PVC, PE film, PP woven band or Paper |
0.04-0.07 | 80/100 |
| JCJX-2480 | 80-240 | 300-800 | 80-200 | 250 | max 150kg |
PVC, PE film, PP woven band or Paper |
0.04-0.07 | 80/120 |
