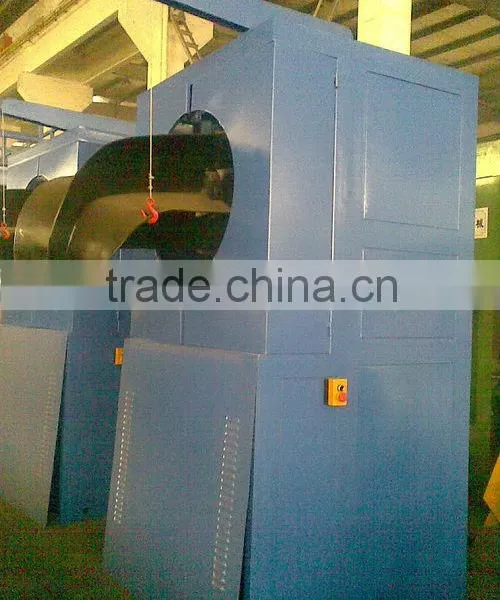

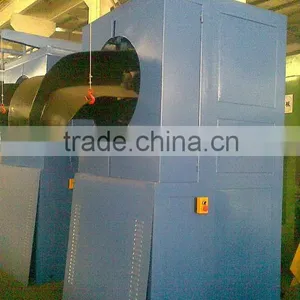

JCJX- 450 Trunk type automatic winder
1.Detailed specification of take-up machine:
Name |
Specifications |
Drum diameter( mm) |
Φ450 |
The rolling velocity m/min |
200-450 |
Take up line dia(mm) |
Φ1.8-Φ3.5 |
Take up capacity (KG) |
500-1000 |
Matching motor (KW) |

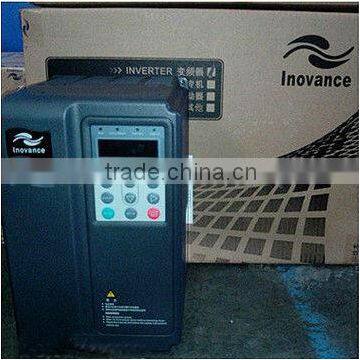

The 18.5 variable frequency / speed motor |
2.Application:
It is used for take-up wire from 1.8 to 3.5mm
Any doubt Please contact to us, we will give you a satisfactory solution.
3.About us:

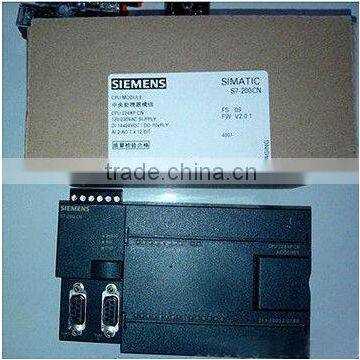

1).JIACHENG has some world famous parts suppliers. Have high price performance ratio.
2).special lubrication system for the gears and bearing.
3).second section annealing system, outside electrically neutral (no current flow to other unit
4).body and other key components and parts are produced by our own factory, quality is reliable.
5) Our company’s developing process in more than 10 years.
4.Certificates:

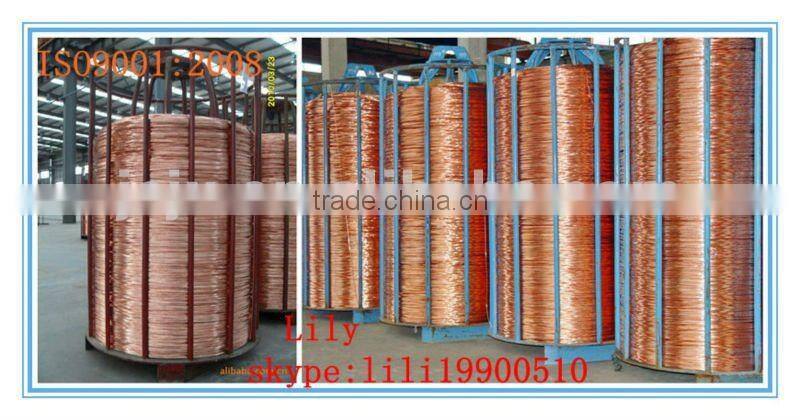

5.Finished product:
Main Product:
Cable making equipment
v Wire drawing machine (multiple wire)
v Rod breakdown machine
v Tin-coating machine Rigid frame stranding machine
v Annealing machine
v Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine
v Wire and cable production line
v Bunching machine
v CCA wire machine
Payment terms and contact ways
Escrow, T/T, L/C at sight
Contact: Lily Peng
Mobile: 0086-13506220296( Wechat and whatsapp)
Skype:lili19900510
We are glad to provide service for you!
Driving to Shanghai,we only need one and a half hours
We are wire and cable machine manufacturer for more than 12 years!
