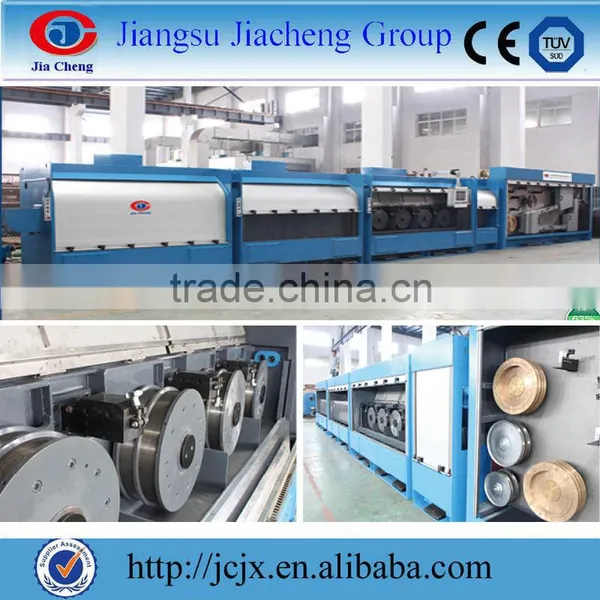

JCJX-LSD450-2 Two Wires Rod Breakdown Machine
It is used for drawing copper wire from 8mm to 1.2-3.5mm, and drawing al wire from 9.5mm to 1.7-5.0mm.
Main features
1. Full immersion, can guarentee the wire's cooling and lubrication.
2. Every drum is transmitted by single motor, the tensile rate can be adjustable, it can also realize fast die change.
Machine type |
LSD 450/13-2 |
LSD450/11-2 |
LSD459/9-2 |
|
Drawing capstan dia. (mm) |
Φ450 |
Φ450 |
Φ450 |
|
Max. Die No. |
13 |
11 |
9 |
|
Inlet dia. (mm) |
Copper |
Φ8 |
||
Al, Al alloy |
Φ9.5 |
|||
Outlet dia. (mm) |
Copper |
Φ1.2-Φ4.2 |
Φ1.5-Φ4.2 |
Φ2.0-Φ4.2 |
Al, Al alloy |
Φ1.7-Φ5.0 |
Φ2.2-Φ5.0 |
Φ2.8-Φ5.0 |
|
Max. drawing speed (m/s) |
30 |
25 |
20 |
|
Single motor power (KW) |
37/55 (AC) |
|||
Capstan arrangement |
Horizontal type |
|||
Lubrication type |
Full immersion |
|||
Take-up type (optional) |
Double take-up/single take-up/orbital coiler |
|||
Optional equipment |
On-line horizontal annealer |
|||
On-line continuous annealing device | ||
Machine type |
450T |
450TB |
Annealing wire dia. (mm) |
Φ1.2-3.5 |
Φ1.2-4.2 |
Annealing voltage (V) |
0-60 |
0-60 |
Annealing current (A) |
0-6000A (DC) |
0-5000A (AC) |
Max. annealing speed (m/s) |
25 m/s |
|
Our Jiangsu Jiacheng Machinery is one of the top 10 manufacturers of producing wire and cable machinery in China. Our products have exported to India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladeshand so on. We take part in the international wire and cable machinery exhibition every two year, we also participate the exhibition in the foreign countries.
A: Advantages
1).JIACHENG has some world famous parts suppliers. Have high price performance ratio.
2).special lubrication system for the gears and bearing.
3).second section annealing system, outside electrically neutral (no current flow to other unit)
4).body and other key components and parts are produced by our own factory , quality is reliable.
5). our company’s developing process in more than 10 years.
B: After-sell service
Our company for our machine product, since the shipment date, our company free after sale maintenance service guarantee period is:
(1) 1 year for mechanical part.
(2) 6 month for electrical part.
Main Product:
Cable making equipment
v Wire drawing machine (multiple wire)
v Rod breakdown machine
v Tin-coating machine Rigid frame stranding machine
v Annealing machine
v Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine
v Wire and cable production line
v Bunching machine
v CCA wire machine
Payment terms and contact ways
Escrow, T/T, L/C at sight
Contact: Lily Peng
Mobile: 0086-13506220296( Wechat and whatsapp)
Skype:lili19900510
Welcome to visit Jiangsu Jiacheng Group
Driving to Shanghai, we only need one and a half hours
