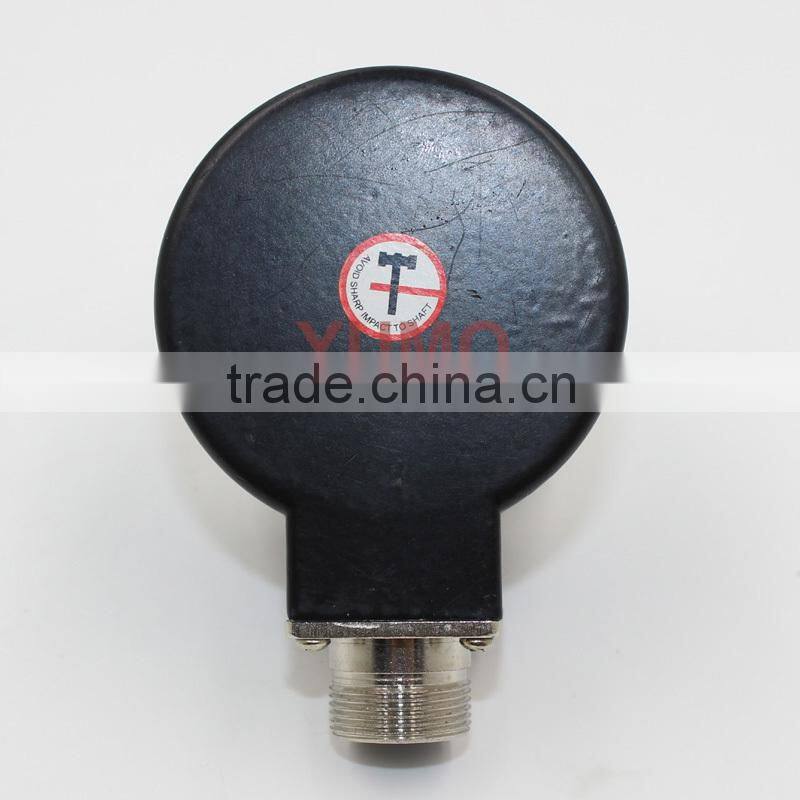

Help CenterYUMO ISC5810 500 PPR 5V 12V 24VDC Cnc Incremental Shaft Rotary Encoder Ip67
Related Products
-
YUMO ASC6008 24VDC 12 Digit Absolute Rotary, Magnetic Rotary EncoderUS$ 20 - 65MOQ: 1 Piece -
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 360PPR 5V YUMO ISC3806 500PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 500PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 600PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
YUMO ISL5810 500 PPR 5V 12V 24VDC Flange Adapters Encoders
ISC5815 Shaft Encoder with Flange Adapter (Flange Encoder)

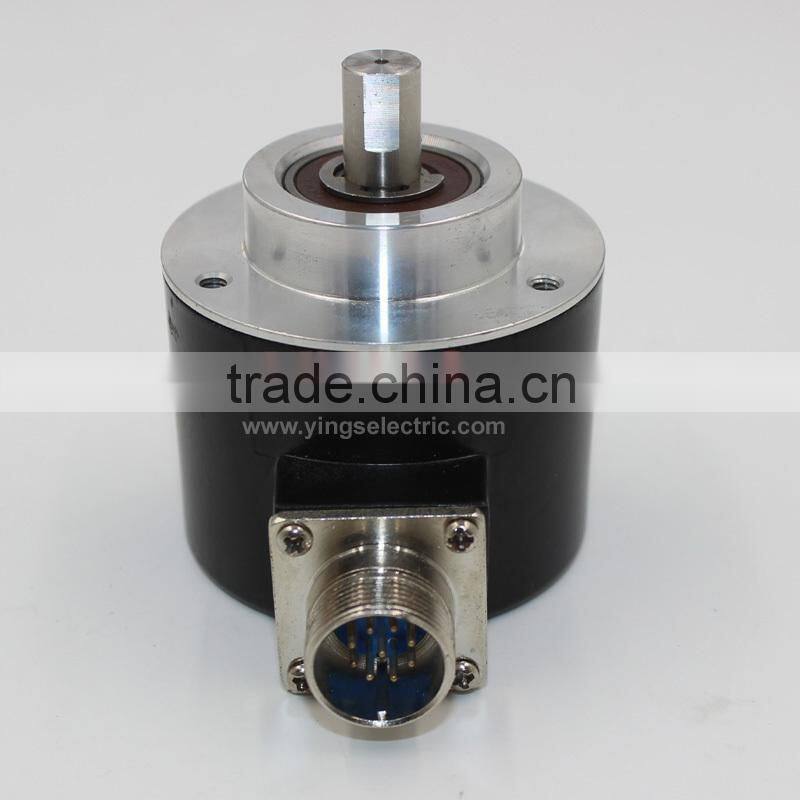

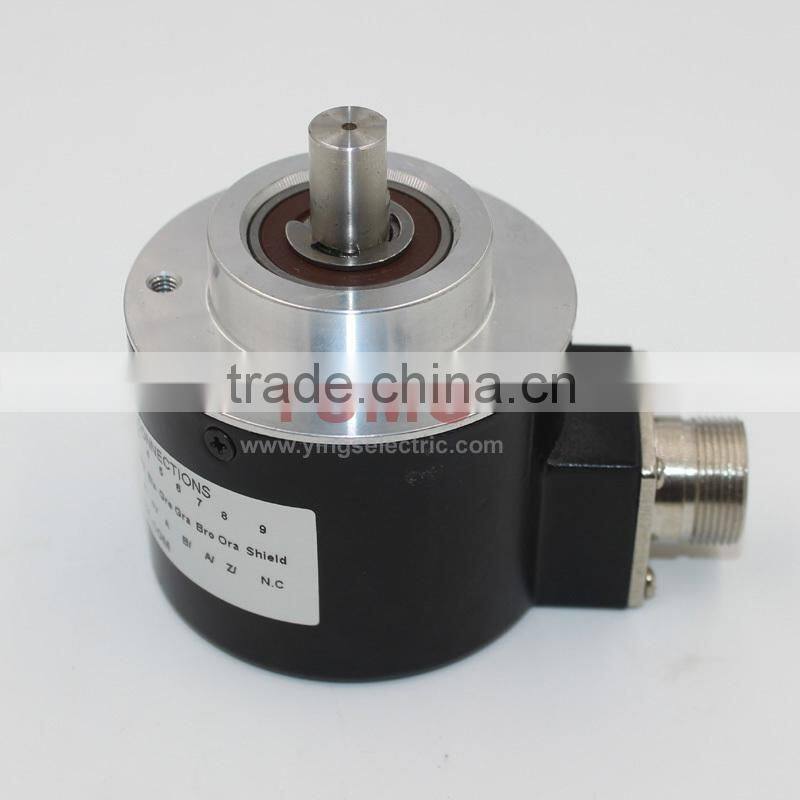

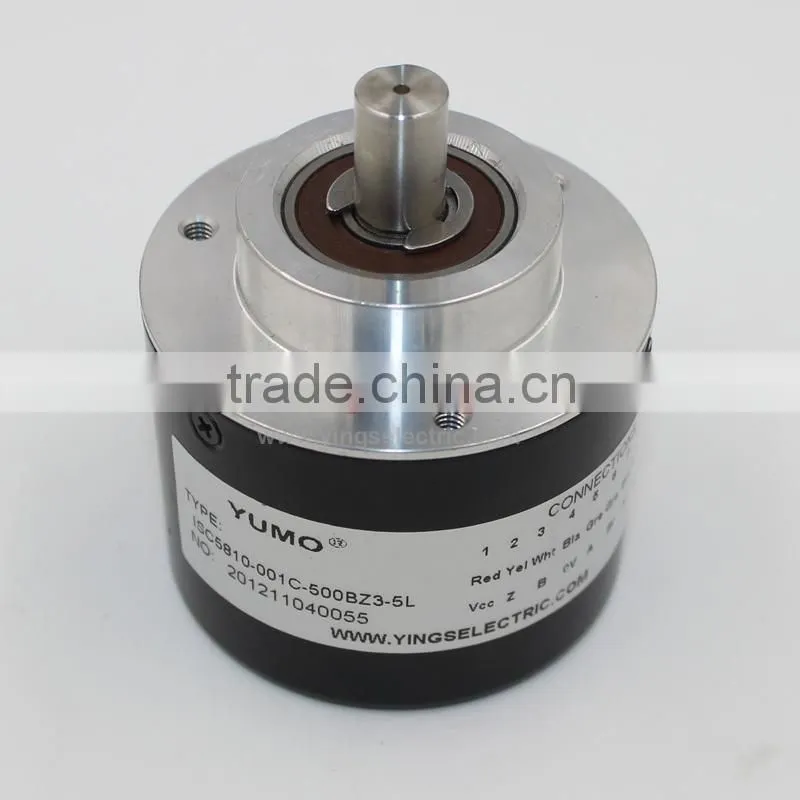

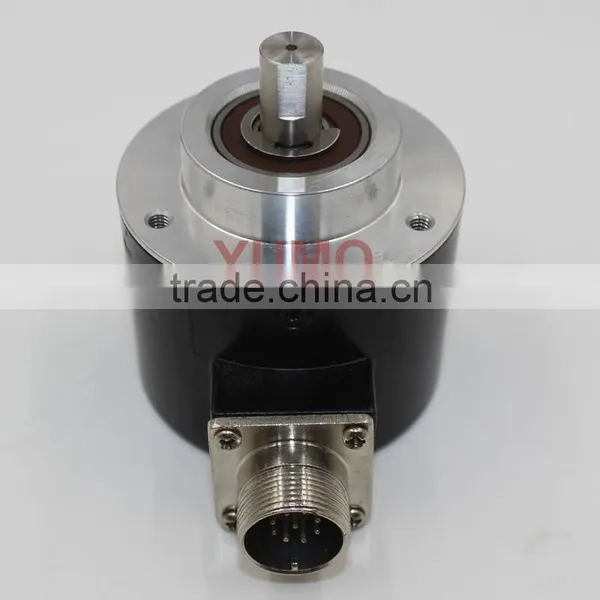

Shaft Encoder with Flange Adapter (ISC5810)
Product Description
Shaft diameter 10 mm ¦, housing diameter 58 mm ¦, flange diameter 66mmx66mm.
Flange adapters, long working life, high shock and vibration, good anti-interference.
Connector:
Cable axial, Cable radial, Plug axial, Plug radial.
Applications:
Crosstable positioning, positioning at computer numerical control tooling machinery.
| ELECTRICAL SPECIFICATIONS | |
| Output wave: | Square wave |
| Output signals | A, B, Z, (Line driver output A, A, B, B, Z, Z phase) |
| Current consumption: | ≤180mA |
| Response Frequency: | 0~120KHz |
| Output phase difference: | 90°±45° |
| Supply voltage | 5V DC, 5-12V DC, 12-24V DC |
| Signal leve | Vh≥85%Vcc, Vh≤0.3V |
| Number of pulses: | 50, 60, 100, 120, 125, 150, 180, 200, 250, 256, 300, 360, 400, 500, 512, 600, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000, 3600(Other number of pulse available on request) |
| Output circuit: | Open collector NPN, Push pull, Line driver, Voltage |
| MECHANICAL SPECIFICATIONS | |
| Speed without sealing | 6000rmp |
| Rotor moment of inertia | Appraisal 18.5x10-6Kgm2 |
| Starting torque without sealing: | d2.0x 10-2Nm (+25*C) |
| Maximum load permitted on shaft: | Radial: 85N, Axial: 50N |
| Shock resistance: | 980m/s2, 6ms, 2 times each on XYZ |
| Vibration proof: | 50m/s2, 10~200Hz, 2 hours each on XYZ |
| Working life: | MTBFe30000h (+25*C, 2000rpm) |
| Weight: | Appraisal 460g (9 pin plug radial) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working humidity: | 30~85% (No condensation) |
| Storage temperature: | (-40℃~100℃) |
| Working temperature: | (-25℃~85℃) |
| Protection class: IP54 | IP54 |
So lid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid s YUMO ISC5810 500 PPR 5V 12V 24VDC cnc incremental shaft rotary encoder ip67 YUMO ISC5810 500 PPR 5V 12V 24VDC cnc incremental shaft rotary encoder ip67 YUMO ISC5810 500 PPR 5V 12V 24VDC cnc incremental shaft rotary encoder ip67 haft incremental rotary encoder Solid shaft incremental rotary encoder
YUMO MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international standard IEC60898, IEC947-2
YUMO VISION:
To be an enterprise lasting 150 years and beyond
To be an enterprise with a sales network all over 200 countries in the world.
To be the cooperative partner of General Electric
YUMO MISSION:
Better product, better service.
YUMO BUSINESS PRINCIPLE
Cooperation, Sharing, Win-win
YUMO WORKING PRINCIPLE
Enjoy mywork, enjoy mylife.
Conditions and terms:
1. All of the products are brand new, top quality components, absolutely no used items
2 .The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
Payment Terms:
1.We accept payments made by Western Union, TT, PayPal, L/C
2.Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping:
1. We will ship the items within 3-15 working days after the payment is reached.
2. We ship to you by Express, by sea, by air according to the PI.
3. Any import fees or charges are the buyer's responsibility.
Warranty:
Warranty is available based on the following points:
1. Quality guaranteed for one year.
2. If the item you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
Contact Us:
YUEQING YING'S IMPORT & EXPORT CO.,LTD
ADD:NO.126 LIUYANG ROAD, ZHAOYANG INDUSTRY ZONE, LIUSHI TOWN,YUEQING CITY, ZHEJIANG PROVINCE, 325604 CHINA
TEL: 0086-577-62791815 FAX: 0086-577-62791825 Mobile:0086-13757779011
Skype:benjaminying TradeManager:yncync
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: Is sample available and free?
A:Sample is available , but the cost should be paymentby you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 1years.
Q: What's the delivery time ?
A: It usually takes 2-5 days after we confirm the payment,
but specific time should be based on the order quantity.
