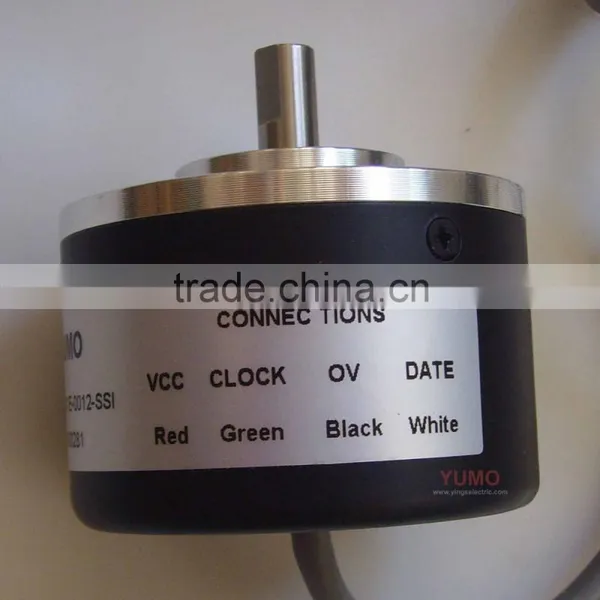

YUMO ASC6008-401E-0012-SSI 5VDC Absolute encoder

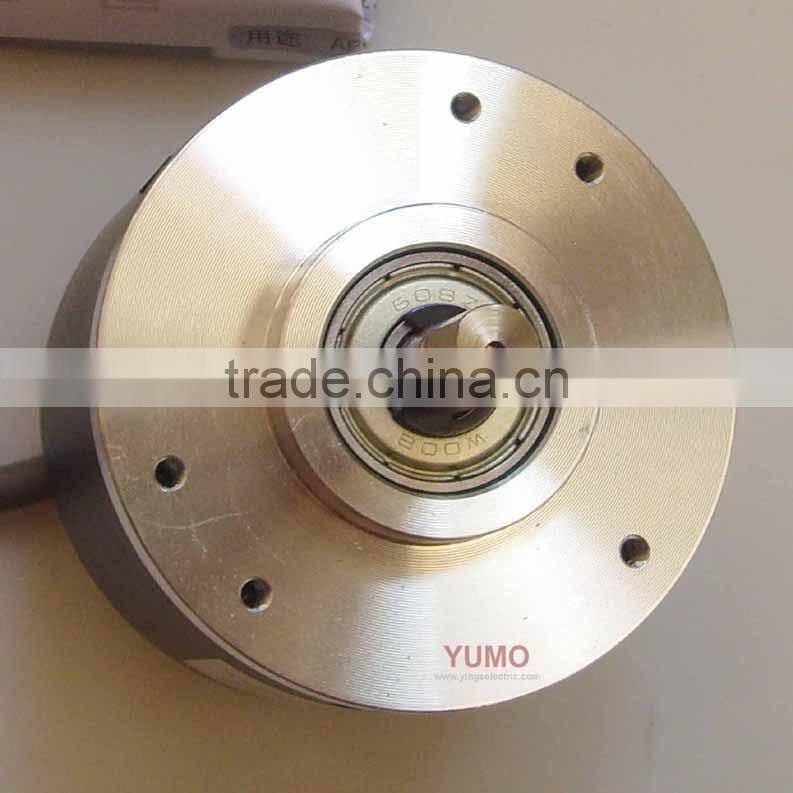

1.housing diameter is 60mm
2.shaft diameter is 8mm or 6mm or 10mm
3.15bit
4.we are factory
Applications
Power motors and three phase current motors with frequency transformation, system construction.
ASC6008-401E-0012-SSI 5VDC Absolute encoder
ELECTRICAL SPECIFICATIONS | |
Output wave |
Square wave |
Current consumption |
150mA |
Response Frequency |
0/50KHz |
Supply voltage |
DC+5V±5%5-12V,12-24V,5-24V |
Signal level |
VH 85%Vcc,VL 0.3V |
Output circuit |
C-Open collector NPN,E-Voltage |
MECHANICAL SPECIFICATIONS | |
Speed without sealing |
1000rpm |
Rotor moment of inertia |
5×10-6kgm2 |
Starting torque without sealing |
2.5×10-3Nm(+250C) |
Maximum load permitted on shaft |
Radial 20N,Axial 10N |
Vibration proof |
980m/s2,6ms,2 times each on XYZ |
Shock resistance |
50m/s2,10-200Hz,XYZ 2h |
Working life |
MTBF 30000h(+250C,2000rpm) |
Weight |
0.4KG |
ENVIRONMENTAL SPECIFICATIONS | |
Working life |
30 (No condensation) |
Storage temperature |
300C/850C |
Working temperature |
500 /850 |
Protection class |
waterproof,dustproof IP54 |
SPECIFICATION PARAMETER | ||||||
Code |
Digit |
division date |
Angle distinguish |
Output code |
Carry direction |
Accaracy |
ASC6008-401E-0012 |
12 |
4096 |
3600/212 |
Gray code/ nature binary system /two code |
shaft end clock wise(CW)/(no anticlockwise
|
±2’ |
ASC6008-401E-0011 |
11 |
2048 |
3600/211 |
±5’ |
||
ASC6008-401E-0010 |
10 |
1024 |
3600/210 |
±10’ |
||
ASC6008-401E-0009 |
9 |
512 |
3600/29 |
±20’ |
||
