Help CenterYUMO ISC3806 600PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder
Related Products
-
YUMO ISC3806 1000PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece -
YUMO ISC3806 1024PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 2000PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 2500PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 3600PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
YUMO ISC3806-003G600BZ3-5L 600PPR Shaft encoder
Incremental pulse encoder: SPC
Absolute pulse coder: APC
Both are generally applied to the detection element speed control or position control system.
Incremental encoder and absolute encoder distinction
According to the working principle can be divided into incremental encoder and absolute categories.
Incremental encoder is to displacement into a periodic electrical signal, and then transform the electrical signal into a counting pulse, represents the magnitude of displacement by the number of pulses. Absolute encoders determine each position corresponds to a digital code, so it only shows the value of the starting and ending position measurement, but not to the middle of the process of measurement.
Incremental rotary encoder output pulse is rotated by counting device to know its location, when the encoder does not move or power outage, counting on internal memory to remember the location of the device. Thus, when the power failure, the encoder does not have any movement, when work calls, the encoder output pulse process, it can not have lost the pulse interference, otherwise, it will count the zero offset memory device, and this bias the amount of shift is no way to know in order to know the results only after the production error appears. shaft encoder

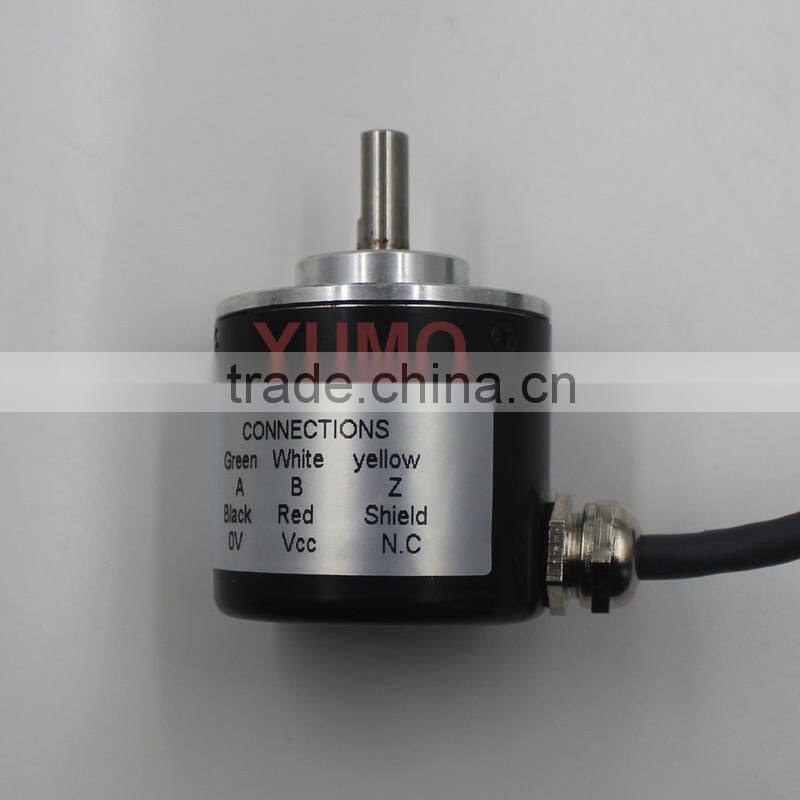

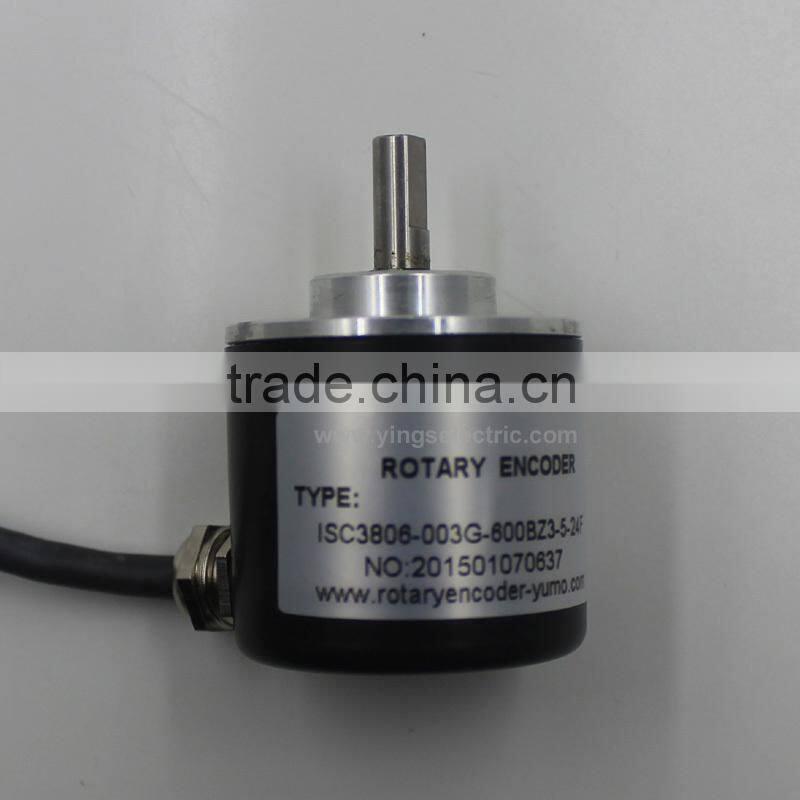

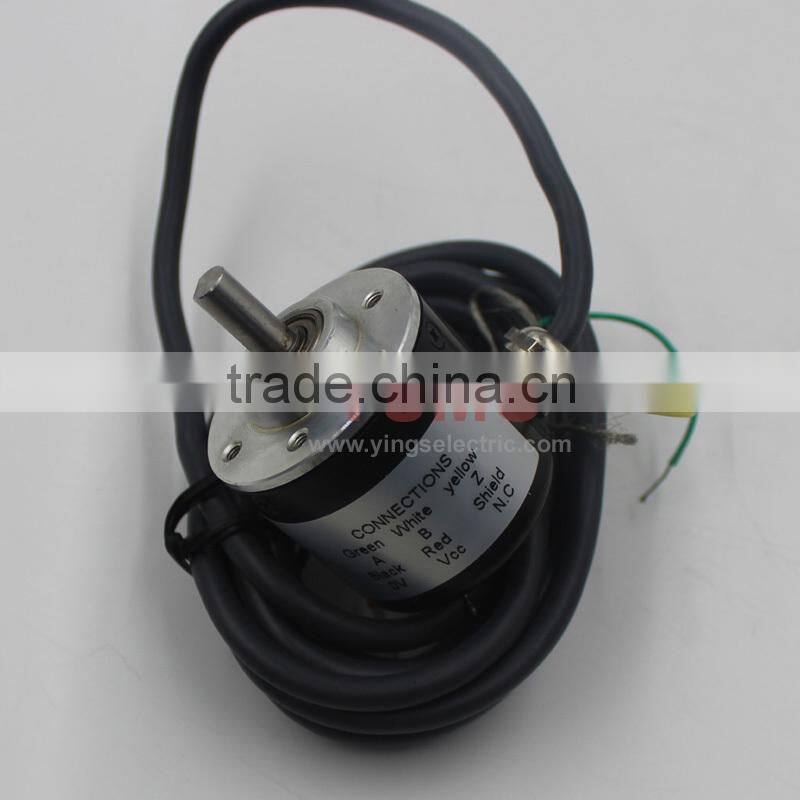

ISC3806 Shaft Encoder
| Product Description |
| Shaft diameter 6 mm ¦ or 8 mm ¦, clamping flange, housing diameter 38 mm ¦. |
| Low price at high performance, small volume, light weight, easy for installing |
| Applications. |
| Measure the distance, stop dog positioning, |
| Curtained door, textile machinery |
| 1. ELECTRICAL SPECIFICATIONS |
| A). Output wave: Square wave |
| B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase) |
| C). Current consumption: d120mA |
| D). Response Frequency: 0~100KHz |
| E). Output phase difference: 90* |
| F. ) Supply voltage: 5V DC, 5-12V DC, 12-24V DC |
| G). Signal leve: LVHe85%Vcc, VLd0.3V |
| H). Number of pulses: 10, 15, 20, 30, 40, 50, 60, 100, 120, 125, 150, 180, 200, 240, 250, 256, 300, 360, 400, 480, 500, 512, 600, 720, 740, 800, 900, 960, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500(Other number of pulse available on request) |
| I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage |
| 2. MECHANICAL SPECIFICATIONS |
| A). Speed without sealing: 5000rmp |
| B). Rotor moment of inertia: Appraisal 4.5x10-6Kgm2 |
| C). Starting torque without sealing: d1.5x 10-3Nm (+25*C) |
| D). Maximum load permitted on shaft: Radial: 20N; Axial: 10N |
| E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ |
| F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ |
| G). Working life: MTBFe25000h (+25*C, 2000rpm) |
| H). Weight: Appraisal: 130g (with 1 meter cable) |
| 3. ENVIRONMENTAL SPECIFICATIONS |
| A). Working humidity: 30~85% (No condensation) |
| B). Storage temperature: -40*C~100*C |
| C). Working temperature: -25*C~85*C |
| D). Protection class: IP54 |
YUMO ISC3806 600PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 600PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 600PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder
So lid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder
YUMO MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international standard IEC60898, IEC947-2
YUMO VISION:
To be an enterprise lasting 150 years and beyond
To be an enterprise with a sales network all over 200 countries in the world.
To be the cooperative partner of General Electric
YUMO MISSION:
Better product, better service.
YUMO BUSINESS PRINCIPLE
Cooperation, Sharing, Win-win
YUMO WORKING PRINCIPLE
Enjoy mywork, enjoy mylife.
Conditions and terms:
1. All of the products are brand new, top quality components, absolutely no used items
2 .The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
Payment Terms:
1.We accept payments made by Western Union, TT, PayPal, L/C
2.Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping:
1. We will ship the items within 3-15 working days after the payment is reached.
2. We ship to you by Express, by sea, by air according to the PI.
3. Any import fees or charges are the buyer's responsibility.
Warranty:
Warranty is available based on the following points:
1. Quality guaranteed for one year.
2. If the item you purchase from our company are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
Contact Us:
YUEQING YING'S IMPORT & EXPORT CO.,LTD
ADD:NO.126 LIUYANG ROAD, ZHAOYANG INDUSTRY ZONE, LIUSHI TOWN,YUEQING CITY, ZHEJIANG PROVINCE, 325604 CHINA
TEL: 0086-577-62791815 FAX: 0086-577-62791825 Mobile:0086-13757779011
Skype:benjaminying TradeManager:yncync
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: Is sample available and free?
A:Sample is available , but the cost should be paymentby you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 1years.
Q: What's the delivery time ?
A: It usually takes 2-5 days after we confirm the payment,
but specific time should be based on the order quantity.
