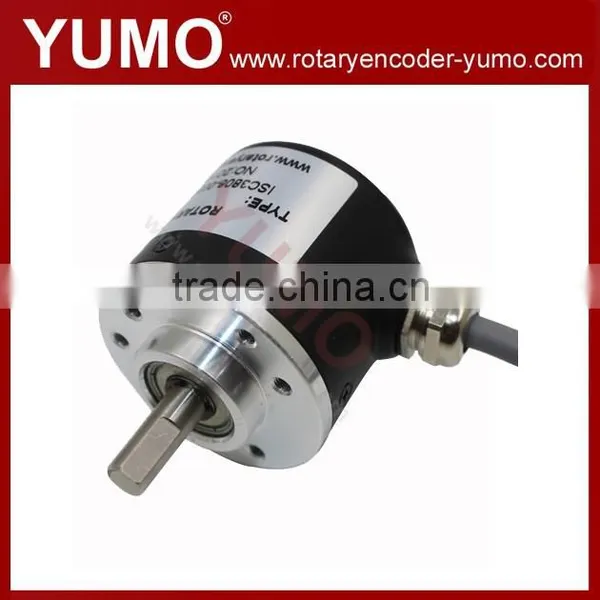

YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder

YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder thumbnail-1
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder thumbnail-2
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder thumbnail-3
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder thumbnail-4
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder thumbnail-5
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder thumbnail-6
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder photo-1
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder photo-2
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder photo-3
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder photo-4

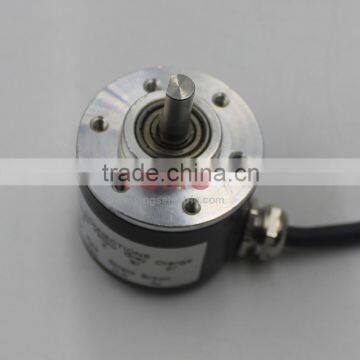

YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder photo-5
YUMO ISC3806 200PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder photo-6
US$ 25 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO rotary encoder
Model Number:
ISC3806-003G200BZ3-5L
Contact Supplier Request Quote Chat Now
Yueqing Yings Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO rotary encoder
Model Number ISC3806-003G200BZ3-5L
Usage Position Sensor
Theory Optical Sensor
Output Digital Sensor



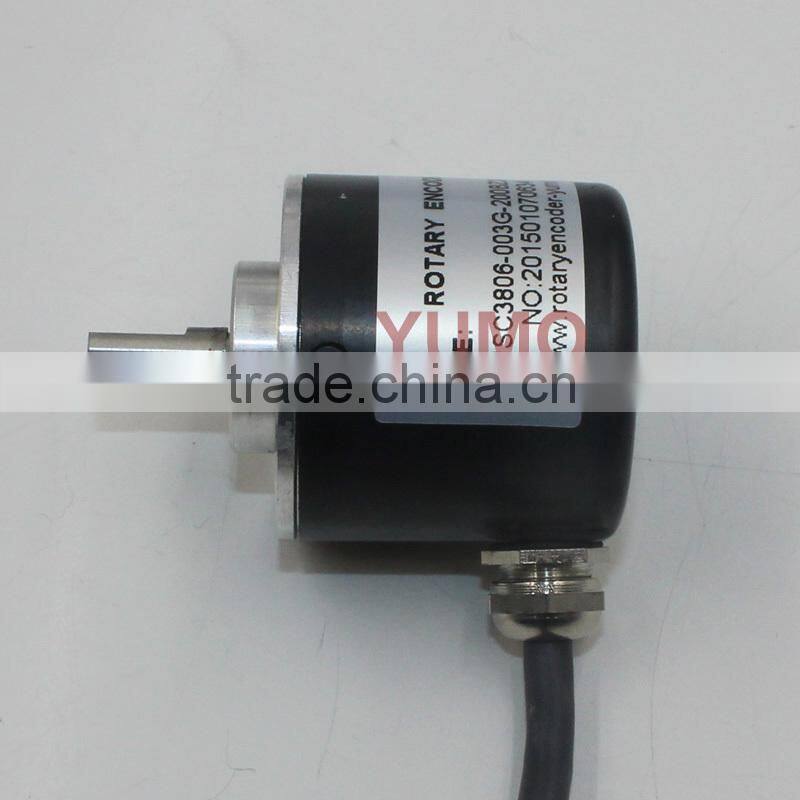

YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder

Product Description



  VERSION OF TYPE SERIES


   1

I(Incremental encoder)

A(Absolute encoder)

    2

S(Solid shaft)

H(Hollow shaft)

C(Cone shaft)

N(No shaft)



    3





C(Common type)

H(Shock resistance type)

M(Manual type)

F(Flameproof type)

T(Wide working temperature range)

A(Through-hole hollow shaft type)

L(Flange adapters type)

R(High response frequency)

N(Synchronous flange type)

W(Sine ware type)

S(Airtight type)

U(With UVW phase type)





ORDERING CODER

ISC   38    06     401    G    1024    BZ      1   --- 5      L

1        2      3        4      5       6        7        8      9     10



                   1

ISC: Type series

     2

38: housing diameter φ38mm

     3

6: Shaft diameter φ6mm

4

401: Sequence number

5

C: Plug radial

H: Plug axial

G: Cable axial

E: Cable axial

J: Rectangle plug radial

T: Rectangle plug axial

       6

1024: Number of pulses

           7

Output signals

A: A phase

AL: A phase and Z phase

AZ: A phase and Z phase

B: A,B phase

BL: A,B phase and Z phase

BZ: A,B phase and Z phase

      8

Width of Z phase (Tz)

No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T

      9

Supply voltage

5:5V DC

5-12: 5-12V DC

12-24: 12-24V DC

          10

Output circuit

C: Open collector NPN

F: Push pull

E: Voltage

L: Line driver AM26LS31

H: Line driver MC3487

D: Line driver SN75113

T: Line driver 26ET31B





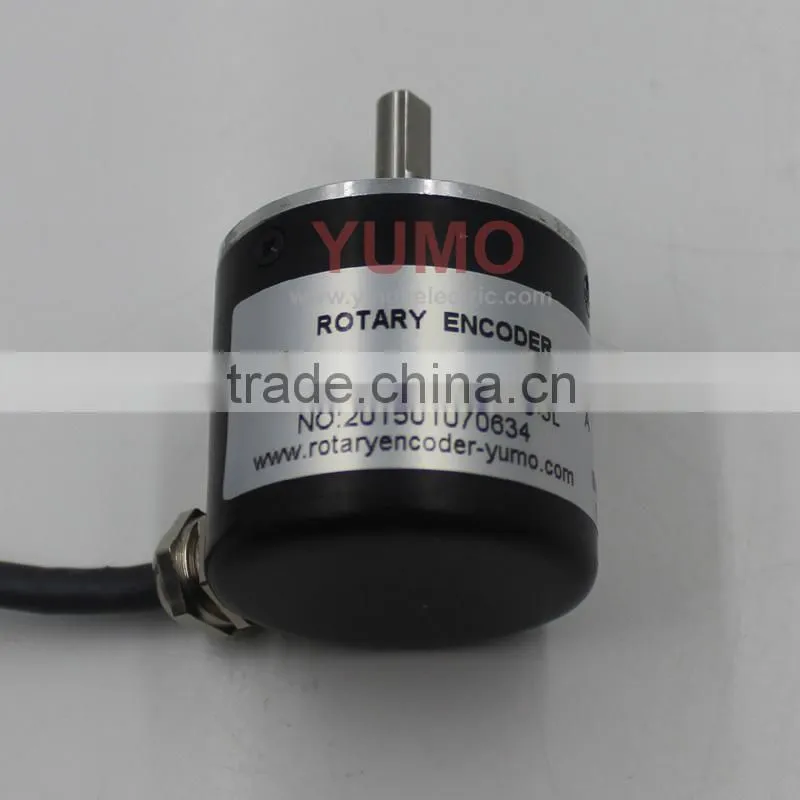

YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoderYUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoderYUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoderYUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder

YueQing YUMO electric Co., Ltd is set research and development, manufacturing and sales as one of the international

science and technology enterprise integrated automation, The company dedicated to industrial automation control products (encoder,

sensor, safety light curtain, automatic matching accessories and other products). R & D and manufacturing, has been committed

to technological innovation, combined with the height of the perfect.

product quality and excellent corporate culture, for the wholeBall industrial automation customers to provide professional technical

support and solutions. Products and widely used in the servo motor, CNC machine tools, automotive, glass, ceramic, elevator, paper, food,

textile machinery Machinery, packaging machinery, wind power generation, industrial assembly automation control field.

Companies adhere to the "integrity-based, quality first, the user is supreme, the development strategy of "strong in technology research

and development as a starting point, to Professional international management team as the driving force, focus on customer needs.

enhance core competitiveness, to build the brand of automation technology.





 Features:

* ASIC devices internal, good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Outlet end use waterproof metal interface protection, infold sleeve design, no loose.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.



ISC3806  SERIES

Shaft  diameter φ6mm orφ8mm ,clamping

flange, housing diameterφ38mm.

Low price at high performance, small volume,

light weight, easy for installing



Applications:

Measure the distance, stop dog positioning,

curtained door, textile machines

  YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder

Square-wave accuracy:X1+X2=1/2T±1/12T

                  X3+X4=1/2T±1/12T

Pitch error of period: ±0.01T

Pitch error of phase position : ≤1/18T

Z phase: T z=1/4T (1T, 1/2T, 1/4T…)

Period of pulses: T=360 º/N(N:output pulses)

Signal accuracy Xn=1/4T±1/12T(n=1,2,3,4)

A leads B clockwise when viewing the encoder shaft end,

The position of Z phase against A, B phase is not specified.



TECHNICAL SPECIFICATIONS

ELECTRICAL SPECIFICATIONS
Output waveSquare wave
Output signalsA,B,Z(Line driver output A,A(_),B,B(_),Z,Z(_) phase)
Current consumption ≤120mA
Response Frequency0~100KHZ
Output phase difference90º±45º
Supply voltage5V DC,5-12V DC,12-24V DC
Signal levelVH≥85% Vcc, VL.≤0.3V
Number of pulses 10,15,20,30,40,50,60,100,120,125,
150,180,200,240,250,256,300,360,400,
480,500,512,600,720,740,800,900,960,
1000,1024,1200,1250,1440,1500,1800,
2000,2048,2500(Other number of pulse available on request)
Output circuitOpen collector NPN, Push pull Line driver, Voltage
MECHANICAL SPECIFICATIONS
Speed without sealing5000rmp
Rotor moment of inertiaAppr.3.5×10-8kgm²
Starting torque without sealing≤1.5×10-3NM (+25℃)
Maximum load permitted on shaftRadial 20N,Axial 10N
Shock resistance980m/s²,6ms, 2 times each on XYZ
Vibration proof 50m/s²,10~200Hz,2 hours each on XYZ
Working life MTBF≥25000h(+25℃,2000rpm)

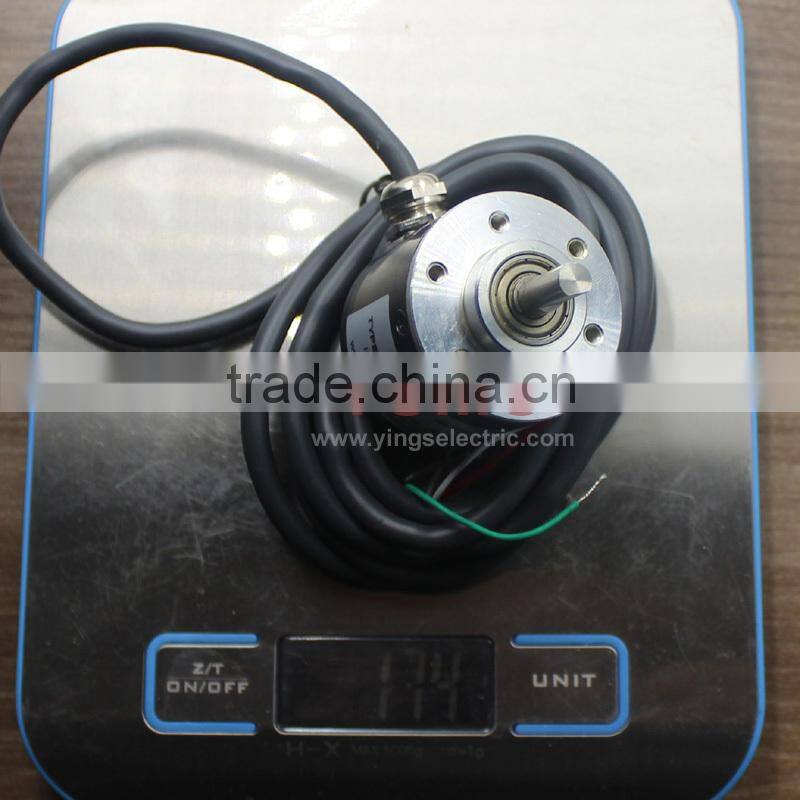

WeightAppr.130g(with 0.5 meter cable)
ENVIRONMENTAL SPECIFICATIONS
Working humidity30~85%(No condensation )
Storage temperature -40℃~100℃
Working temperature-25℃~85℃
Protection classIP54



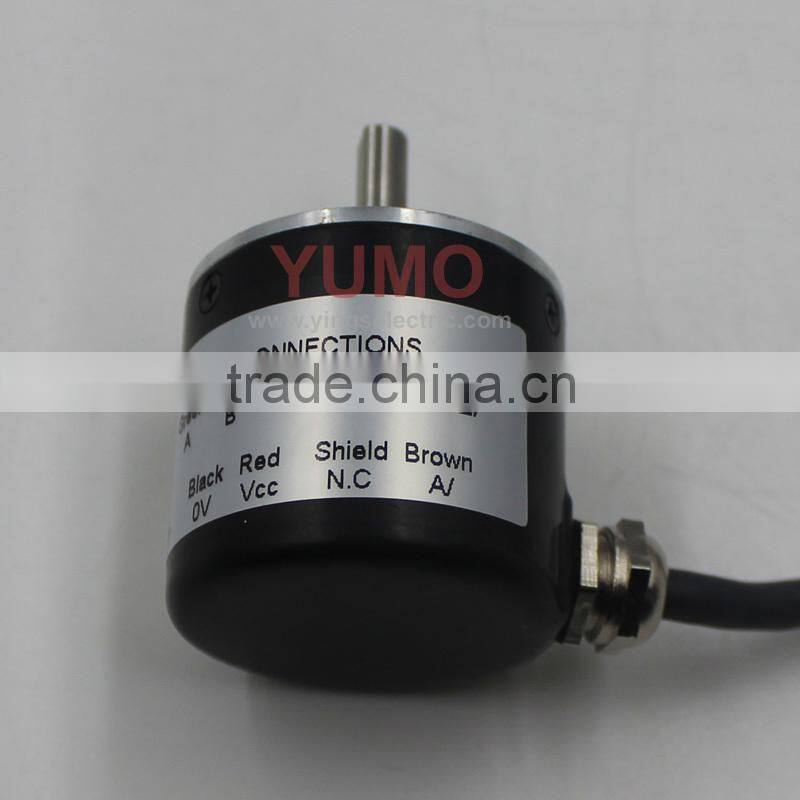

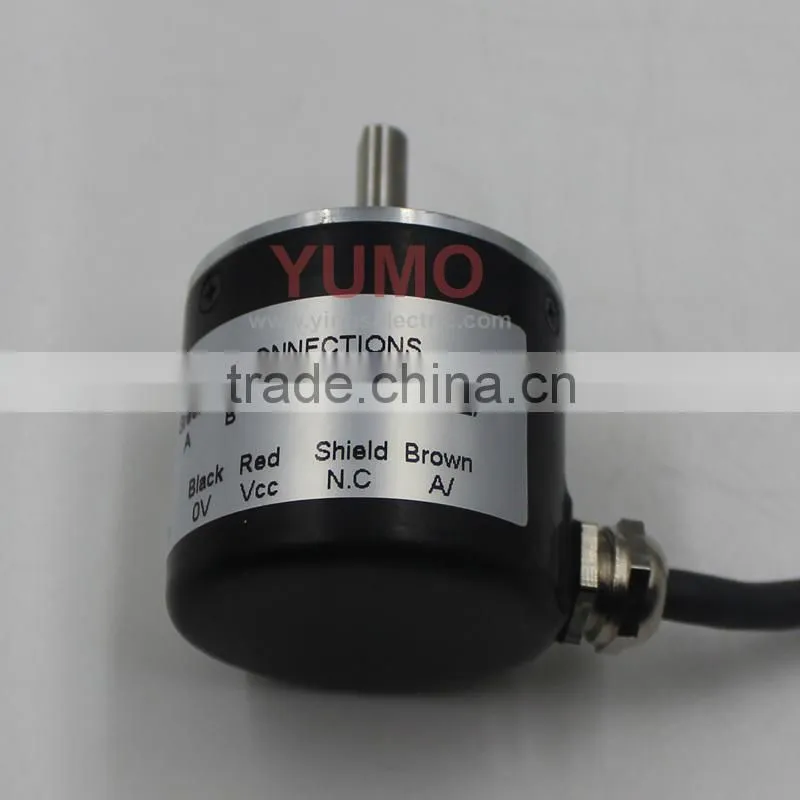

Terminal assignment:

Signal

+5V

0V

SIG A

SIG A(_),

SIG B

SIG B(_)

SIG Z

SIG Z(_)

Shield

Cable Color

Red

Black

Green

Brown

White

Grey

Yellow

Orange

N.C

Note: Shield is attached to connector housing. One meter cable lengths(other cable lengths on order)

Ordering code:

ISC3806  -    H03             G        600         BZ3           -   5-12             C

         Series                    Sequence                  Connection     Number                Output                               Supply                      Output

         Number                                                                              of Pulses                Signals                            Voltage                     Circuit



Series: ISC3806, Radial cable: G, Number of pulses: 600p/r Output Signals: ABZ, T z=1/4T, Supply Voltage: 5-12V DC, Output circuit: Open collector NPN, Record: ISC3806-H03G600BZ3-5-12C

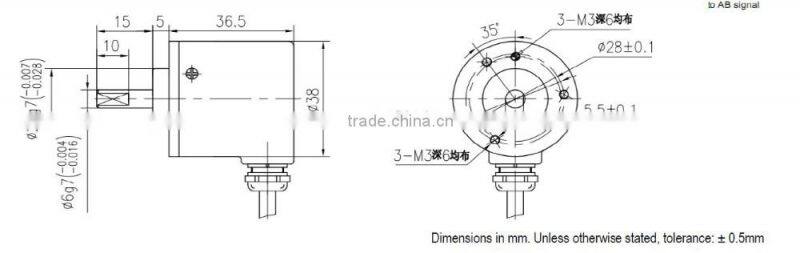

 Dimensions:

YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder



 YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoderYUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoderYUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoderYUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder





So lid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary enco YU coder | magnetic rotary encoder | rotary encoder parts | volume rotary encoder | motorized rotary encoder | optical rotary encoder | optic IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder al rotary encoder disks | 8mm rotary encoder | rotary shaft encoder | encoder rotary encoder | rotary encoder | rotary encoder disc | incremental optical rotary encoders | manual rotary encoder | rotary encoder controler | rotary encoder with switch | rotary encoder circuit | hollow shaft incremental rotary encoder | rotary position encoders | 12mm rotary encoder | incremental rotary encoders | encoder/ rotary encoder | elevator rotary encoder | optical rotary encoders | optical rotary encoder switch | absolute rotary encoders | incremental 10mm rotary encoder | incremental type rotary encoder | incremental rotary encoder | incremental optical rotary encoders | hollow shaft incremental rotary encoder | incremental rotary encoders | incremental 10mm rotary e
MO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder der Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder

Company Information

 YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder





Our Services

 YUMO ISC3806 200PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder



FAQ

Q:How to order our product ?

A:1).Please tell us the model and quantity and other request you need.

   2).We make the PI for you.

   3).After you confirm the PI, we arrange the order for you after receiving your payment.

   4).After the goods finished, we send the goods out to you and tell you the tracking number.

   5).We will track your goods until you receive the goods.

Q:  What's your warranty ?

A: One years

Q: What's your contact information:

A: Our address: Liushi town, Zhejiang province, China.    Sky-pe: benjaminying

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.

Thank you & Now pls send your  kindly inquiry !  ^!^
