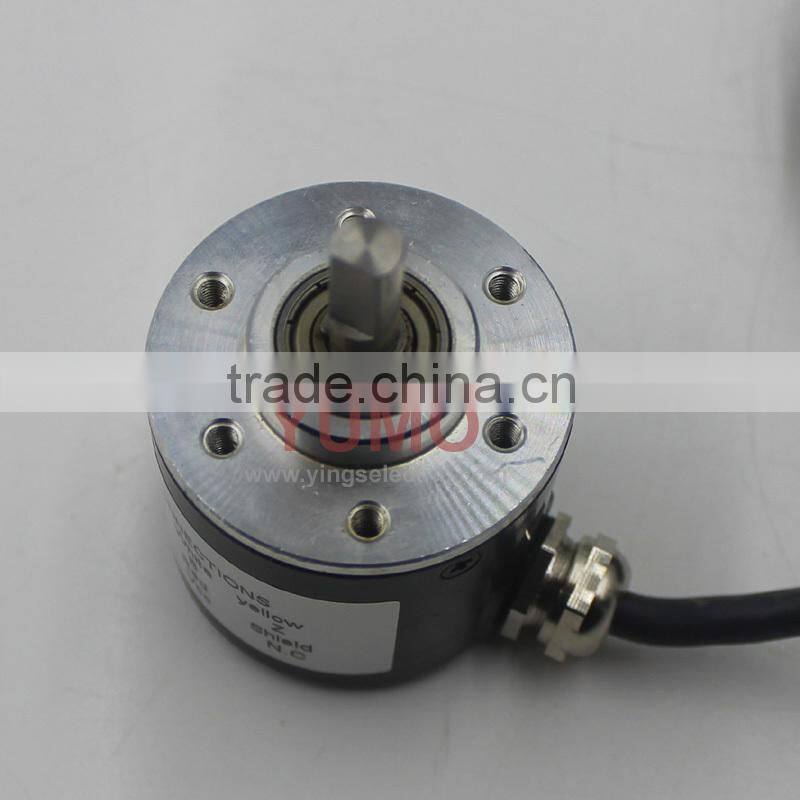

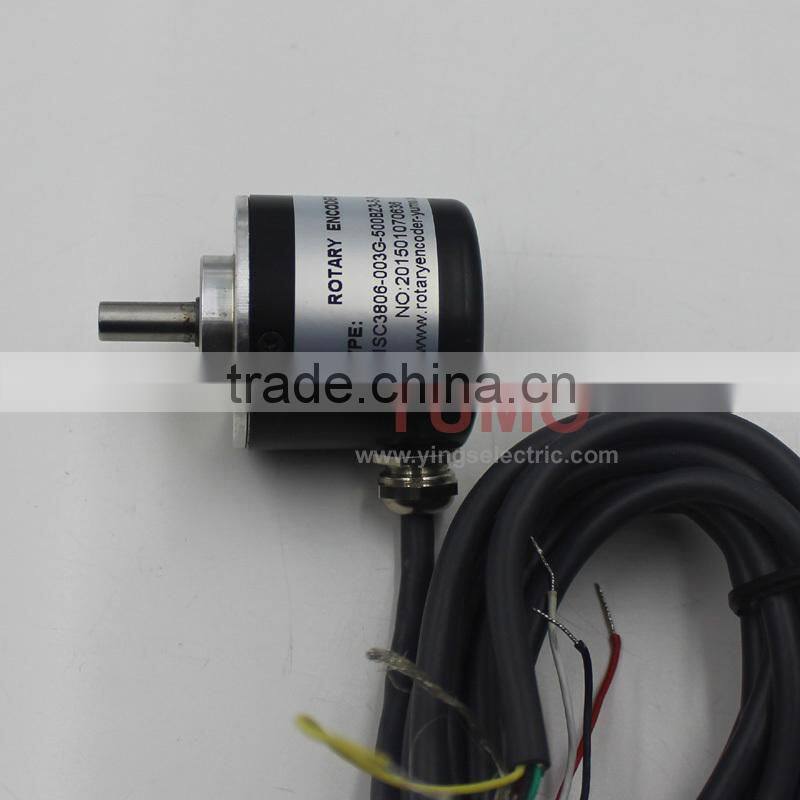

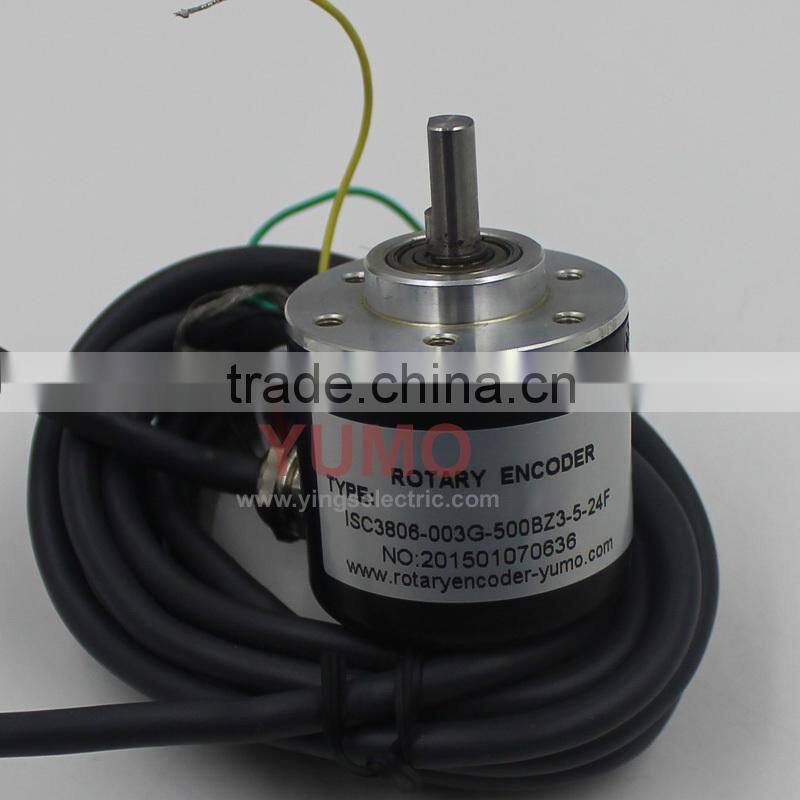

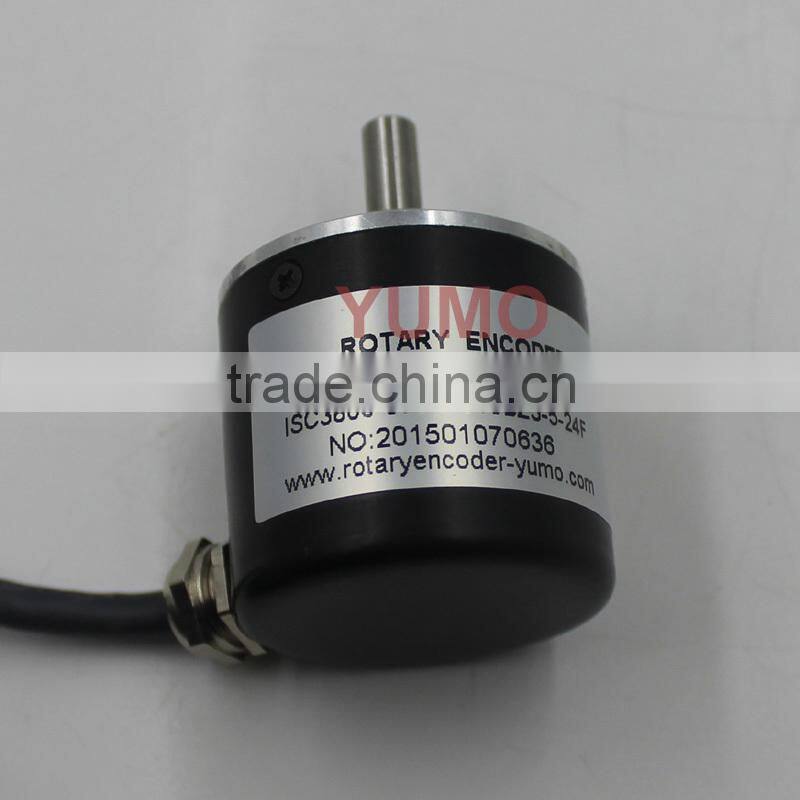

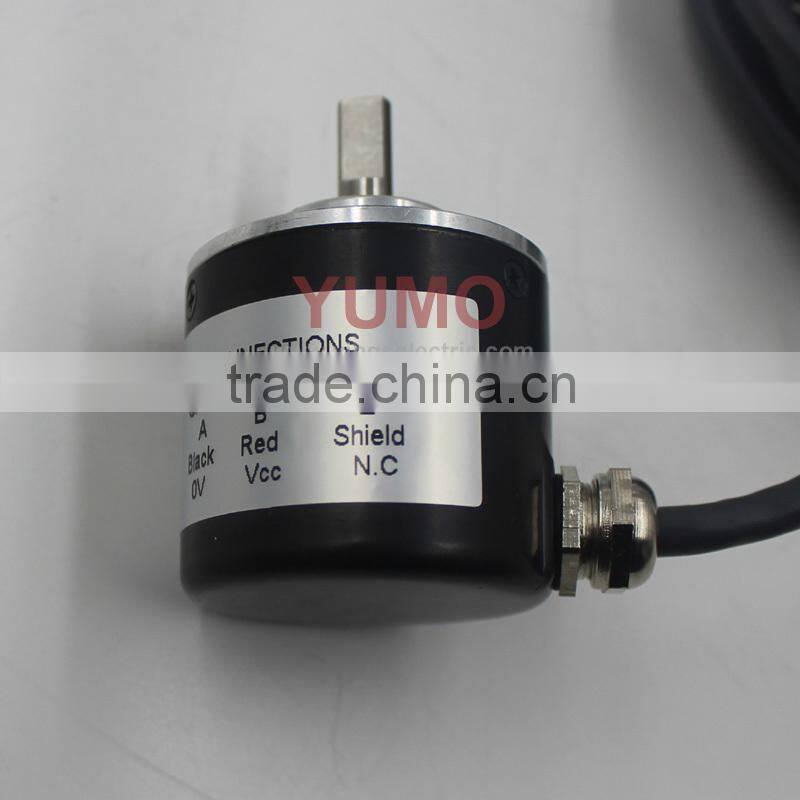

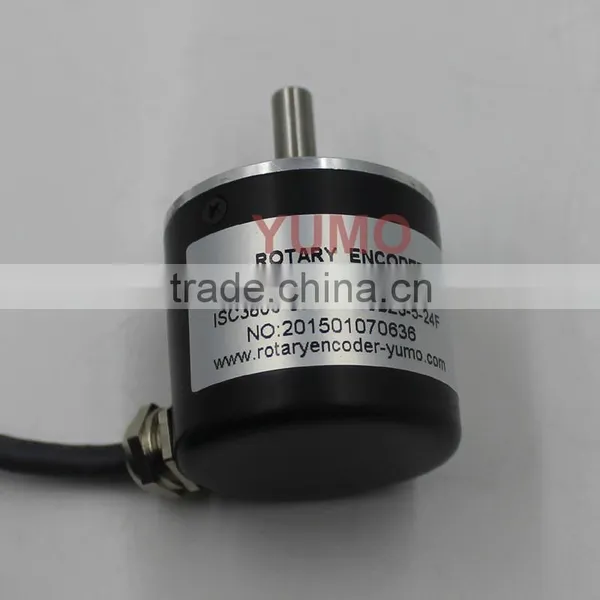

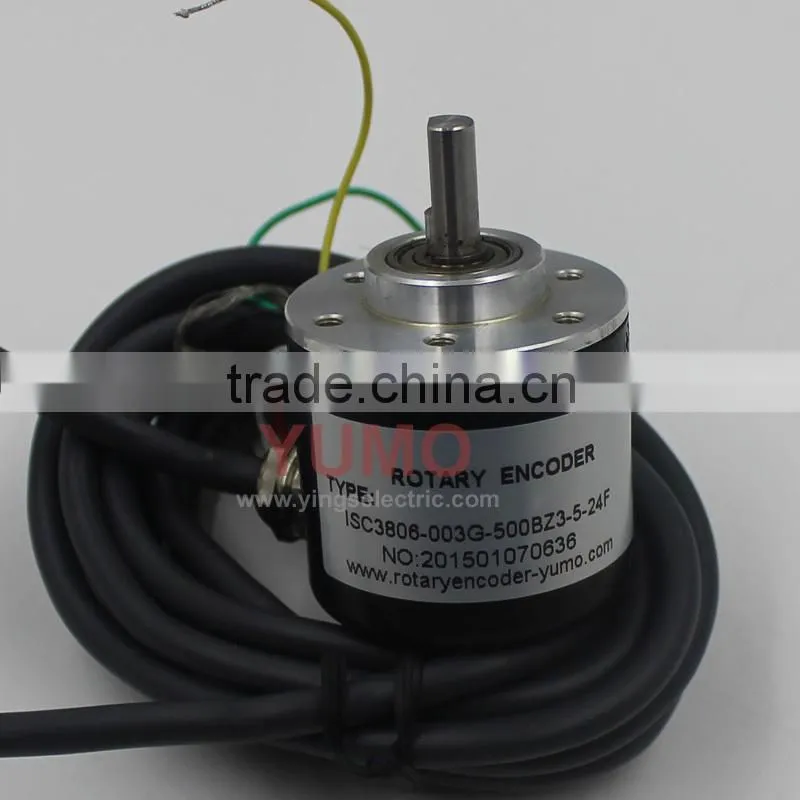

Help CenterYUMO ISC3806 500PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary Encoder
Related Products
-
YUMO ISC3806 600PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece -
YUMO ISC3806 1000PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 1024PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 2000PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
-
YUMO ISC3806 2500PPR 5V CNC System Solid Shaft Encoder Optical Price Incremental Rotary EncoderUS$ 25 - 50MOQ: 1 Piece
YUMO ISC3806 500PPR 5V CNC system Solid shaft encoder optical price incremental rotary encoder
YueQing YUMO electric Co., Ltd is set research and development, manufacturing and sales as one of the international
science and technology enterprise integrated automation, The company dedicated to industrial automation control products (encoder,
sensor, safety light curtain, automatic matching accessories and other products). R & D and manufacturing, has been committed
to technological innovation, combined with the height of the perfect.
product quality and excellent corporate culture, for the wholeBall industrial automation customers to provide professional technical
support and solutions. Products and widely used in the servo motor, CNC machine tools, automotive, glass, ceramic, elevator, paper, food,
textile machinery Machinery, packaging machinery, wind power generation, industrial assembly automation control field.
Companies adhere to the "integrity-based, quality first, the user is supreme, the development strategy of "strong in technology research
and development as a starting point, to Professional international management team as the driving force, focus on customer needs.
enhance core competitiveness, to build the brand of automation technology.
VERSION OF TYPE SERIES:
1 |
I(Incremental encoder) |
A(Absolute encoder) |
||||
2 |
S(Solid shaft) |
H(Hollow shaft) |
C(Cone shaft) |
N(No shaft) |
||
|
3
|
C(Common type) |
H(Shock resistance type) |
M(Manual type) |
F(Flameproof type) |
||
T(Wide working temperature range) |
A(Through-hole hollow shaft type) |
|||||
L(Flange adapters type) |
R(High response frequency) |
N(Synchronous flange type) |
||||
W(Sine ware type) |
S(Airtight type) |
U(With UVW phase type) |
||||
ORDERING CODER:
ISC 38 06 401 G 1024 BZ 1 --- 5 L
1 2 3 4 5 6 7 8 9 10
1 |
ISC: Type series |
2 |
38: housing diameter φ38mm |
3 |
6: Shaft diameter φ6mm |
|||||||
4 |
401: Sequence number |
5 |
C: Plug radial |
H: Plug axial |
G: Cable axial |
E: Cable axial |
J: Rectangle plug radial |
T: Rectangle plug axial |
||||
|
6 |
1024: Number of pulses |
|||||||||||
|
7 Output signals |
A: A phase |
AL: A phase and Z phase |
AZ: A phase and Z phase |
|||||||||
B: A,B phase |
BL: A,B phase and Z phase |
BZ: A,B phase and Z phase |
||||||||||
8 |
Width of Z phase (Tz) |
No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T |
||||||||||
9 |
Supply voltage |
5:5V DC |
5-12: 5-12V DC |
12-24: 12-24V DC |
||||||||
|
10 Output circuit |
C: Open collector NPN |
F: Push pull |
E: Voltage |
L: Line driver AM26LS31 |
||||||||
H: Line driver MC3487 |
D: Line driver SN75113 |
T: Line driver 26ET31B |
||||||||||
Incremental pulse encoder: SPC
Absolute pulse coder: APC
Both are generally applied to the detection element speed control or position control system.
Incremental encoder and absolute encoder distinction
According to the working principle can be divided into incremental encoder and absolute categories.
Incremental encoder is to displacement into a periodic electrical signal, and then transform the electrical signal into a counting pulse, represents the magnitude of displacement by the number of pulses. Absolute encoders determine each position corresponds to a digital code, so it only shows the value of the starting and ending position measurement, but not to the middle of the process of measurement.
Incremental rotary encoder output pulse is rotated by counting device to know its location, when the encoder does not move or power outage, counting on internal memory to remember the location of the device. Thus, when the power failure, the encoder does not have any movement, when work calls, the encoder output pulse process, it can not have lost the pulse interference, otherwise, it will count the zero offset memory device, and this bias the amount of shift is no way to know in order to know the results only after the production error appears. shaft encoder
| Product Description |
| Shaft diameter 6 mm ¦ or 8 mm ¦, clamping flange, housing diameter 38 mm ¦. |
| Low price at high performance, small volume, light weight, easy for installing |
| Applications. |
| Measure the distance, stop dog positioning, |
| Curtained door, textile machinery |
| 1. ELECTRICAL SPECIFICATIONS |
| A). Output wave: Square wave |
| B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase) |
| C). Current consumption: d120mA |
| D). Response Frequency: 0~100KHz |
| E). Output phase difference: 90* |
| F. ) Supply voltage: 5V DC, 5-12V DC, 12-24V DC |
| G). Signal leve: LVHe85%Vcc, VLd0.3V |
| H). Number of pulses: 10, 15, 20, 30, 40, 50, 60, 100, 120, 125, 150, 180, 200, 240, 250, 256, 300, 360, 400, 480, 500, 512, 600, 720, 740, 800, 900, 960, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500(Other number of pulse available on request) |
| I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage |
| 2. MECHANICAL SPECIFICATIONS |
| A). Speed without sealing: 5000rmp |
| B). Rotor moment of inertia: Appraisal 4.5x10-6Kgm2 |
| C). Starting torque without sealing: d1.5x 10-3Nm (+25*C) |
| D). Maximum load permitted on shaft: Radial: 20N; Axial: 10N |
| E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ |
| F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ |
| G). Working life: MTBFe25000h (+25*C, 2000rpm) |
| H). Weight: Appraisal: 130g (with 1 meter cable) |
| 3. ENVIRONMENTAL SPECIFICATIONS |
| A). Working humidity: 30~85% (No condensation) |
| B). Storage temperature: -40*C~100*C |
| C). Working temperature: -25*C~85*C |
| D). Protection class: IP54 |
