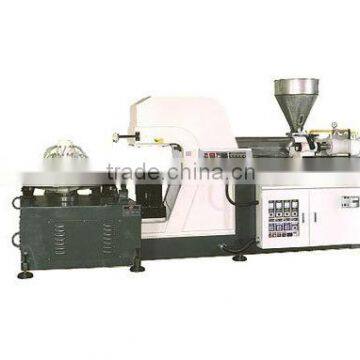

Rotary Type Plastic Sole Automatic Injection Moulding Machine

Name: Rotary Type Plastic Sole Automatic Injection Moulding Machine
Brand: kou yi
SKU: 133465129
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Taiwan, China

Brand Name:

kou yi

Kou Yi Iron Works Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Taiwan, China

Brand Name kou yi

Model Number NSK-285-12

After-sales Service Provided Engineers available to service machinery overseas

Product Serial: NSK-285-12

Rotary Type Plastic Sole Automatic Injection Moulding Machine

This machine is suitable for P.V.C.,T.P.R. foaming & unfoaming material,T.P.U. & T.P.E. to
produce high-level shoe soles.
Feeding screw special design with high efficient hydraulic Motor can feed material smoothly
and quickly.This can produce soles in beauty look & in steady quality.
Full computer P.L.C. control system can set the different injection capacity base on the
products' styles & sizes. Also with the logical hydraulic system ,it can set the injection
pressure & injection speed in the different station.
Cylinder with strong mould clamping design has high mould clamping force and can
produce one piece or two pieces soles at the same time .This increases the production &
decreases the cost . Also products without bur.
Mold cooling uses water cooling type to make better pattern results and steady quality
in products.
Special injection device can be suitable for mould top injection and mould side injection.
Its range is unlimited to increase the machine functions.
Automatic monitoring system and broken-down display system, the need maintenance
point can be indicated clearly and quickly. Even an unskilled worker can operate and
maintain the machine easily.This can decrease maintenance cost.
Disc control by hydraulic transition system and monitor with computer automatically.
It makes the disc turn fast and set exactly.
In the automatic open mould system & vacuum autoloader system,only need one person
to operate it.This can decrease the production cost.

Product Specifications

Item	UNIT	NSK-285-12
Screw rod diameter	mm	Ø70
Ejective capacity	cm³/shot	880
Screw revolution	r.p.m.	20-120
Motor of spiral oil pressure	kg-m	275
Motor of oil-pressure pump	kw/pole	25HPx1+5HPx1
Mould clamping force	ton	81
Mould clamping space(max.)	mm	150
Size of mould available (max.)	mm	410 x 340
Mould cooling type		water cooling
Mould clamping frame	STATION	12
Electric heating capacity(glue)	kw	8
Acting oil capacity	L	600
Machine size	mm	5600 x 2500 x 1900
Machine weight	ton	6.6
Gross weight	ton	6.8
Packing dimension	mm	6400 x 1700 x 2150
