Two Color Rotary Type Plastic Shoes Automatic Injection Moulding Machine

Two Color Rotary Type Plastic Shoes Automatic Injection Moulding Machine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
kou yi
Model Number:
NSK-286-2C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name kou yi
Model Number NSK-286-2C
Place of Origin Taiwan, China
Automatic Yes
After-sales Service Provided Engineers available to service machinery overseas

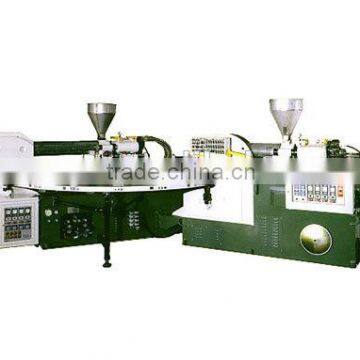

Two Color Rotary Type Plastic Shoes Automatic Injection Moulding Machine NSK-286-2C

Two Color Shoes injection moulding machine



Product Characters:

  • NSK-286-2C is controlled by P.L.C. accurately;smoothly and easy maintenance.
  • Independent hydraulic system; precise pressure & high production capacity & top quality products.
  • Unique design in clamping cylinder make strong clamping force product without burr.
  • Firmed steel close-mould seat,It will never be deformed.
  • Steady disc control by hydraulic transition system,It will make the disc turn faster, set it accurately and without noise.
  • Clamping cylinder, Speedy high production & not damage the mould.
  • Screw rotation with hydraulic motor, Feeding smooth;speedy & soundless.

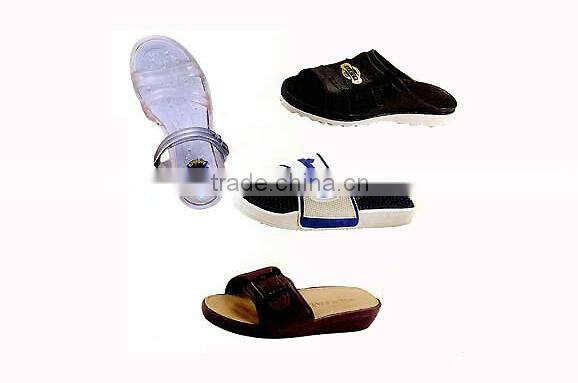

  • The machine specializes for making two colors, foaming or unfoaming products. It
    can also make one color products independently.
  • Hydraulin injection system: injects quantity accurately & high capacity.
  • Even a skilless worker can operate & maintain this machine easily.
  • Auto feeding system control by computer: Feed the material precisely & easy to adjust.
  • Auto computer scout system for disc's rotation : Locate accurately & without displacement.
  • Special design for feeding screw: Cause to a large quantity of production.

    Product Specifications

    Item

    NSK-286-2C

    UNIT

    Screw rod diameter

    Ø70x2

    mm

    Ejective capacity

    600x2

    cm³/shot

    Screw revolution

    0-100

    r.p.m.

    Motor of spiral oil pressure

    275

    kg-m

    Motor of oil-pressure pump

    4Px3HPx2,6Px25HPx2

    kw/pole

    Mould clamping force

    50

    ton

    Mould clamping space(max.)

    240

    mm

    Size of mould available (max.)

    370 x 520

    mm

    Mould clamping frame

    20

    STATION

    Electric heating capacity(glue)

    16

    kw

    Acting oil capacity

    550 x2

    L

    Machine size

    6300 x 6100 x 2100
    6300 x 6500 x 2000

    mm

    Machine weight

    9.8+7.3

    ton

    Gross weight

    10.3+7.8

    ton

    Packing dimension

    5600x1600x2150
    3800x1300x2000

    mm



  • Two Color Rotary Type Plastic Shoes Automatic Injection Moulding Machine
