Home > Products > Pallet Truck > Electric Pallet Truck 2.5 Ton Electric Walkie Hand Operated Pallet Truck
Electric Pallet Truck 2.5 Ton Electric Walkie Hand Operated Pallet Truck
US$ 1 - 5,200
/ Unit
1 Unit(Min. Order)
- Shanghai / Ningbo
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Shintool | |
| Model Number | WP43-25 | Lift Drive / Actuation | Electric Motor |
Product Description
Specifications
electric pallet truck1.With advanced electric power steering (EPS) system
2.With AC motor
3.Good performance

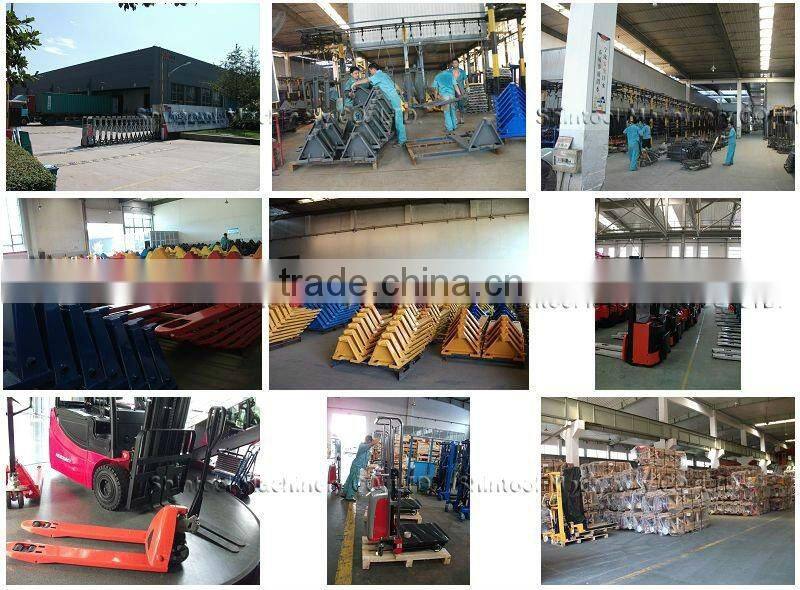

Factory details
Product Description
Advantage
1.The second generation products have started batch production.
2.The new products line are mostly equipped with EPS and AC motor!
3.We are keeping our leading position in China on products quality and design!
4.2.5T Full electric pallet truck, With Electric Power Steering (EPS) system, With AC motor, Color is optional.
Specifications
Specifications
| Model | WP43-25 | ||
| capacity | kg | 2500 | |
| load centre | mm | 600 | |
| operator type | rider | ||
| electric power steering(EPS) | standard equipped | ||
| lifting height | mm | 125 | |
| ground clearance+fork thickness | mm | 85 | |
| standard fork width | mm | 540/685 | |
| fork length | mm | 1150/1200 | |
| fork thickness | mm | 55 | |
| fork width | mm | 185 | |
| overall length | mm | 1960/2010(folded) | |
| height of rider platform | mm | 145 | |
| rear height | mm | 955 | |
| rear length | mm | 810 | |
| overall width | mm | 800 | |
| minimum turning radius | mm | 1810/1860(folded) | |
| aisle width(800*1200mm pallet): horizonal/vertical | mm | 2410/2510 | |
| aisle width(1000*1200mm pallet): horizonal/vertical | mm | 2560//2610 | |
| maximum travelling speed | laden | km/h | 5 |
| unladen | km/h | 8 | |
| maximum lifting speed | laden | m/s | 0.056 |
| unladen | m/s | 0.06 | |
| maximum lowering speed | laden | m/s | 0.057 |
| unladen | m/s | 0.059 | |
| gradeability | laden | % | 5 |
| unladen | % | 7 | |
| service weight without battery | Kg | 550 | |
| service weight with battery | Kg | 820 | |
| size of steering wheel | mm | 248*75 | |
| size of loading wheel | mm | 80*120(single wheel) | |
| 80*80(double wheel) | |||
| size of balance wheel | mm | 115*55 | |
| wheel base | mm | 1584 | |
| travelling motor | kw | 1.5KW AC | |
| lifting motor | kw | 2.0KW DC | |
| voltage/capacity/battery type | v/ah | 24v/210ah/270ah/industry | |
| maximum battery box size(L*W*H) | 790*208*722 | ||
| travelling brake | regenerate | ||
| brake type | electromagnetic | ||
| control system | CURTIS/1230-2402 | ||
Product details

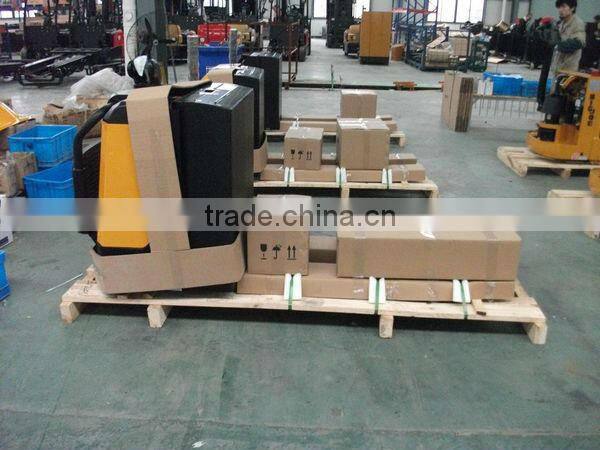

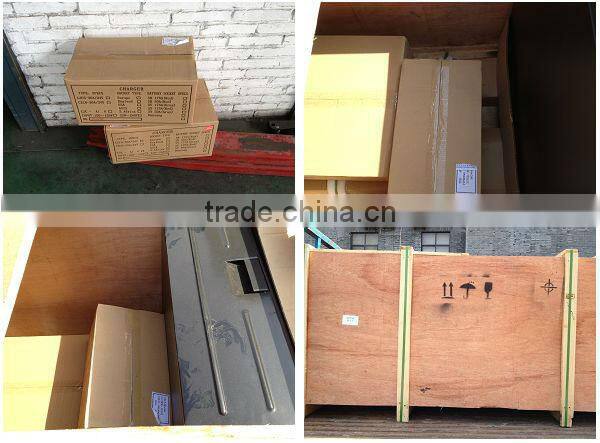

Packaging & Shipping
Packing & Shipping
Our Services
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift
parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service. Our nearest export
port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers,organizing the shipment,LCL load,one B/L supply and other export issue service.
Contact Us
- Hangzhou Shintool Machinery Co., Limited
- Contact nameJoey Python Zhu Chat Now
- Phone86-571-89903670
- AddressRoom No. D-504, Xiangbin Building, No.6 Xiangmao road, Gongshu District, Hangzhou, China , Hangzhou, Zhejiang
