Specifications

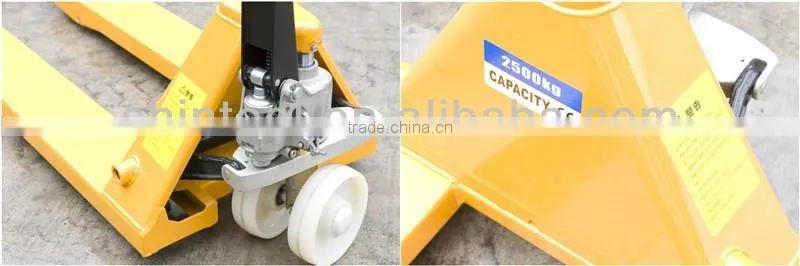

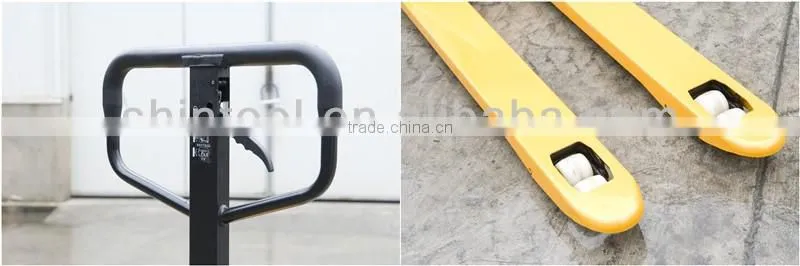

SBA-E Series Hand Pallet TruckCapacity: 2500kg, 3000kg.
Casting pump with leaking proof design
Strong power High quality.
Hand Pallet Truck Advantages
1. With overloading safety valve.
2. Chrome plate piston.
3. Different fork length are available.
4. Fork frame "C" piece design ensure high capacity.
5. Option: rubber wheel, nylon wheel, polyurethane wheel.
Hand Pallet Truck Specifications
1. Welding pump, with leaking proof design.
2. With overloading safety valve.
| Model | SBA-E(casting pump) | |
| Load capacity/rated load | Q(kg) | 3000 |
| Load centre distance | c(mm) | 500 |
| Tyre size, front | mm | Φ180*50 |
| Tyre size, rear | mm | Φ70*60 |
| Lifting height | h3(mm) | 190 |
| Lowered height | h13(mm) | 75 |
| Overall length | l1(mm) | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150 |
| Distance between fork-arms | b5(mm) | 520/550/685 |
| Turning radius | Wa(mm) | 1249/1319 |
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service. Our nearest export
port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Hand Pallet Truck Warranty details
SHINTOOL provide the warranty period to hand pallet truck SBA Series, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which
proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send
quotation for the new replacement parts. Technical questions are welcome to SHINTOOL, SHINTOOL will reply in 24 hours.
