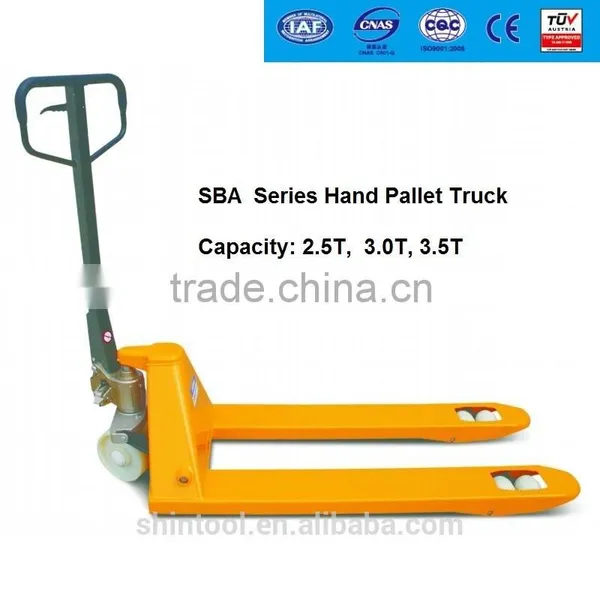

Help CenterSBA Series 3.5 Ton Hand Pallet Truck
Related Products
Specifications
Hand Pallet TruckCapacity: 2500kg
Innovation design
Strong power High quality pallet truck
Reduce maintenance cost.
Hand Pallet Truck Advantages
1. High reliability, suitable for a variety of environments. It can be used for 3-5 years under normal maintenance.
2. The first design of forging & casting integral pump, which prevents any loosening and leakage.
3. High-strength alloy steel carefully rafted, increased loading capacity.
4. Set the active safety value to prevent overloading of operation.
5. 54mm fork thickness ensures high capacity.

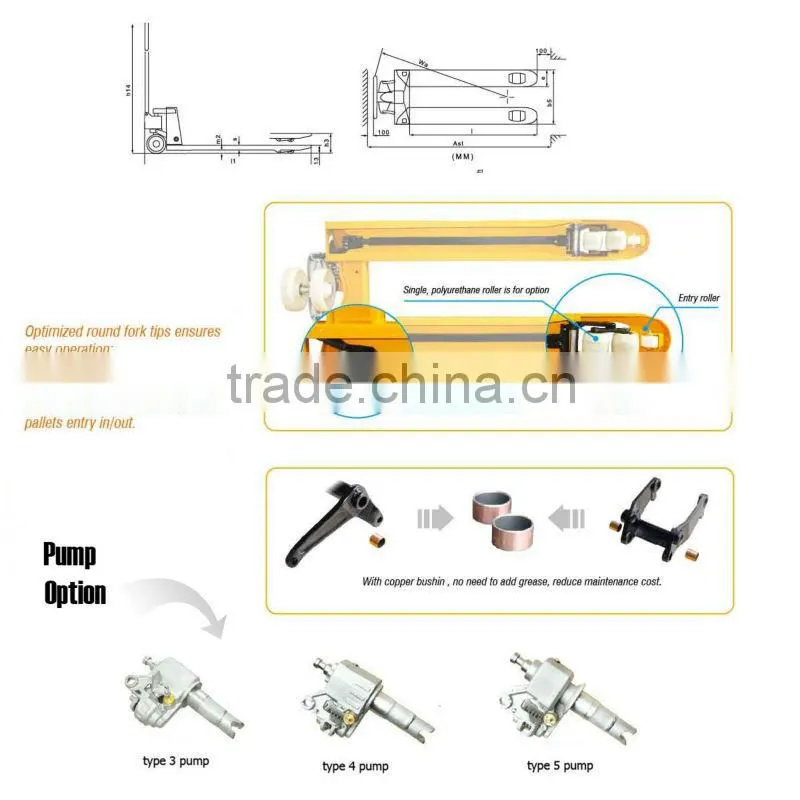

1. Optimized round fork tips ensure easy operation.
2. 50mm fork thickness ensures the high capacity.
3. Curve design on the fork tips help pallets entry in/out.
Hand Pallet Truck Specifications
| Model | SBA | |
| Load capacity/rated load | Q(kg) | 3500 |
| Load centre distance | c(mm) | 500 |
| Tyre size, front | mm | Φ180*50 |
| Tyre size, rear | mm | Φ80*70/Φ74*70 |
| Lifting height | h3(mm) | 200/190 |
| Lowered height | h13(mm) | 85/75 |
| Overall length | l1(mm) | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150 |
| Distance between fork-arms | b5(mm) | 520/550/685 |
| Turning radius | Wa(mm) | 1249/1319 |
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service. Our nearest export
port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Hand Pallet Truck Warranty details
SHINTOOL provide the warranty period to hand pallet truck SBA Series, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which
proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send
quotation for the new replacement parts. Technical questions are welcome to SHINTOOL, SHINTOOL will reply in 24 hours.
