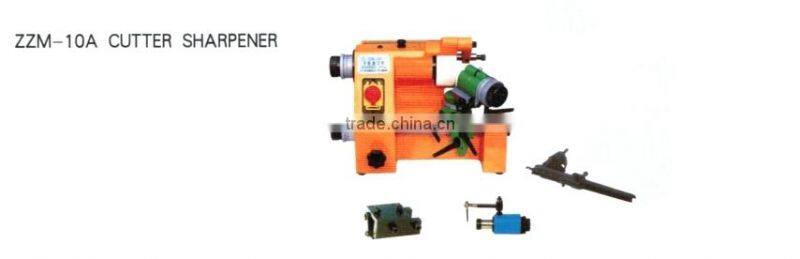

ZZM-10A cutter sharpener
- 10000 Piece / Pieces per Month
- QINGDAO/XINGANG
- T/T Credit Card
- Wholesale NC Tool HSK-FMB NC Tool Handle HSK63A FMB22-100 High Speed Steel Holding Tool Handle
- Customized CNC Machining Center Indexable Face Milling Tool cutter head
- wholesale CNC milling cutter head for CNC machining center
- Customized Right angle R390 indexable shoulder face milling cutter head
- Factory direct sell other machine tools accessories lathe machine tools
- Factory TRS Round dowel face mill indexable face milling cutter head
Product Details
Place of Origin: | Shandong, China | Brand Name: | ZHONGYI | Model Number: | ZZM-10A |
Product Description

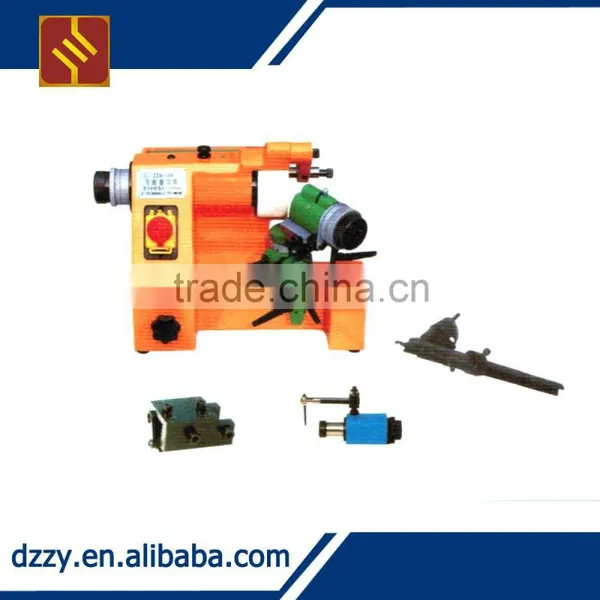

ZZM-10A cutter sharpener is applicable to grind milling cutter of all kinds of diameter,shapes and angles for die sinker,also to die pin corres ponding to the miller according to die sinker scale, it has ability of grinding turning tool,drill.So it is a necessary equipment in using die sinker with excellent figuration,new structure and good application
No. | Main Technical Parameter | MM | INCH |
1 | Wheel Diameter | 100mm | 4'' |
Thickness | 50mm | 2'' | |
Hole Size | 20mm | 3/4'' | |
2 | Spindle Speed | 5200rpm | 5200rpm |
3 | Collet Clamping Diameter Range | 3-16mm | 1/8''---5/8'' |
4 | Tool Post Longitudinal Travel | 140mm | 5-1/2'' |
5 | Tool Post Longitudina Mircro Adjustment | 18mm | 3/4'' |
6 | Spindle Longitudinal Mircro Adjustment | 8mm | 5/16'' |
7 | Grinding Taper Range | 0°---180° | |
8 | Grinding Negative Angle Range | 0°---52° | |
9 | Grinding Relief Range | 0°---44° |
Standard accessory:
6mm or 1/4'' spring collet,belt ,balancing plate,cupwheel WA80L5B .Each one piece
Optional accessory:
1.end mill holder,lathe tool holder and drill holder
2.diamond finger for wheel trimming
3.diamond wheel available to order
we have developed other two types using 5C and R8 collet,supply to order
