Help CenterHDT30 Cutter Sharpener
Related Products
ZZM-10A cutter sharpener
Having opening type structure ,adding operation space,enlarging grinding range ,this sharpener can grind helical edge and cutting edge of miller,also can grind relief edge of taper,drill,reamer and ball end mill by changing different attachment.The main part of sharpener is made of excellent Aluminum it has many feature such as light weight,resist rot,etc.It takes up advanced international technique of air floating,the spindle rotate flexibly after being pressed,reduce friction to lowest
| No. | Main Technical Parameter | MM | INCH | |
| 1 | end mill capacity(Dia of shank xDia of edgexLenth | 50X225X250mm | 2''X9''X10'' | |
| 2 | swing over table | 245mm | 9-3/4'' | |
| 3 | cross travel of table (X Axis) | 150mm | 6'' | |
| 4 | longitudinal travel of table(Y Axis) | 75mm | 3'' | |
| 5 | Maximum dia of wheel | 125X52X32mm | 5''X2''X1-1/4'' | |
| 6 | tilt adjustment for wheelhead | +35° -5° | +35° -5° | |
| 7 | air bearing swivel | 360° | 360° | |
| 8 | air bearing stroke | 250mm | 10'' | |
| 9 | table infeed graduation | 0.02mm | 0.001 | |
| 10 | air bearing graduation | ≥0.63MPa | ≥0.63MPa | |
| 11 | pipe joint diameter | Z1/4'' | Z1/4'' | |
| 12 | collet fit for spindle | 5C | 5C | |
| 13 | parallelism between two tables | 0.01/100mm | 0.01/100mm | |
| 14 | parallelism of sleeve center line to workable | 0.01/100mm | 0.01/100mm | |
| 15 | Motor | speed | 2800rpm | 3450/2580rpm |
| voltage | 230v | 110V/1Phase | ||
| power | 0.25KW | 1/3HP | ||
| frenquecy | 50HZ | 60HZ/50HZ | ||

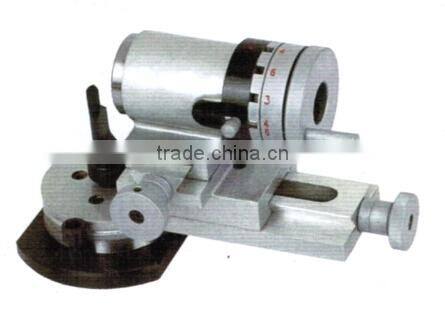

Accessory: AIR BEARING
this product is one of main attachment about type HDT30,it can be used with other shrpener of workable type
|
|
Main technical parameter | |
| max stroke of air bearing sleeve | 9'' | |
| collet for workhole | 5C | |
| T slot of worktable | 12.7mm | |
| air consumption | ≥0.63MPa | |
| pipe joint | Z 1/4'' | |
| swivel | 360° | |
| parallelism of workhole center line to base surface | 0.001/100mm | |
| rasius run of workhole center line (60mm from hole) | 0.015mm | |
RADIUS ATTACHMENT:This device is one of main attachment about type HDT30 sharpener,it is applicable to grinding ball end mill ,it can be used with other sharpener of workable type
|
width of T slot | 12.7mm |
| collet for spindle hole | 5C | |
main infeed |
0.0005'' | |
| max arc radius of grinding | 3'' | |
| equal dividing | 30° | |
| parallelism of work hole to base | 0.02mm/60mm | |
| radial run out of work hole center line (60mm from hole) | 0.015mm |
|
|
|
|
|
