ZZM-10A Cutter Sharpener
- qingdao xingang
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Zhongyi | |
| Model Number | ZZM-10A |
Product Description

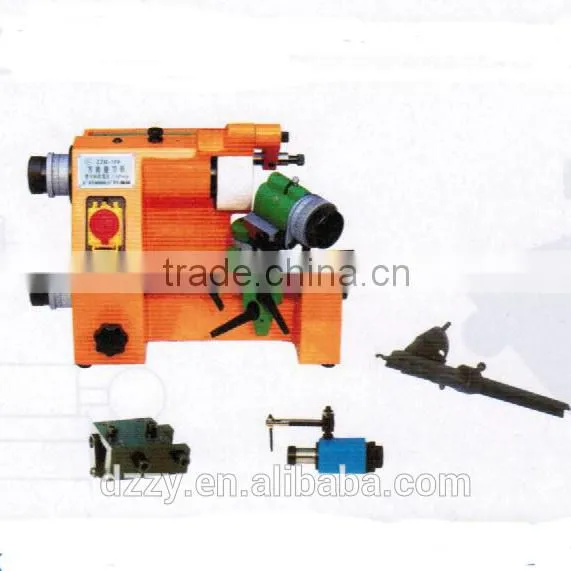

ZZM-10A Cutter Sharpener:
Type ZZM-10A cutter sharpener is applicable to grind millingcutter of all kinds of diameter,shapes and angles for die sinker,also to die pin corres ponding to the miller according to die sinker scale,it has ability of grinding turning tool,drill.So it is a necessary equipment in using die sinker with excellent figration,new struture and good application.
| no. | Main technical parameter | MM | Inch |
| 1 | wheel diameter | 100mm | 4" |
| Thickness | 50mm | 2" | |
| Hole size | 20mm | 3/4" | |
| 2 | Spindle speed | 5200rpm | 5200rpm |
| 3 | collet clamping diameter range | 3-16mm | 1/8"-5/8" |
| 4 | Tool post longitudina travel | 140mm | 5-1/2" |
| 5 | Tool post longitudinal micro adjustment | 18mm | 3/4" |
| 6 | Spindle longitudinal micro adjustment | 8mm | 5/16" |
| 7 | Grinding taper range | 0°-180° | |
| 8 | Grinding negative angle range | 0°-52° | |
| 9 | Grinding releif range | 0°-44° | |
Stand accessories:
6mm or 1/4"spring collet,belt,balancing plate,cupweheel WA80L5B.Each one piece.
Optional accessory:
1.End mill holder,lathe tool holder and drill holder.
2.Diamond finger for wheel trimming.
3.Diamond wheel available to order.
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
