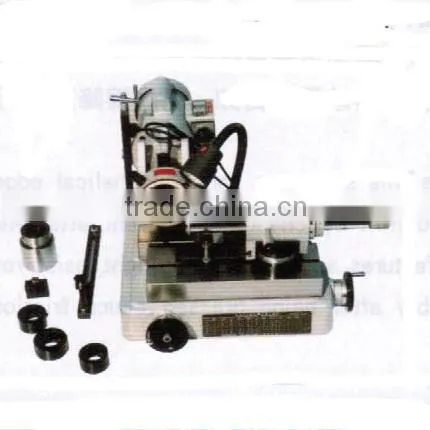

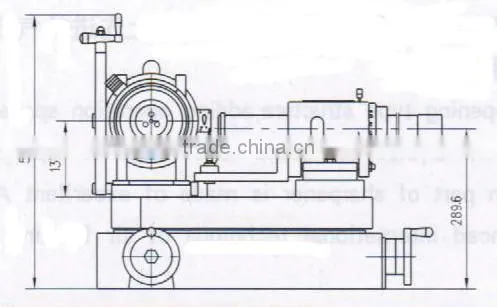

HDT30 Cutter Sharpener:
| Main Technical Parameter | Inch | MM |
| End mill capacity(Dia of shank X Dia of edge X Length) | 2"x9"x10" | 50x25x250mm |
| Swing over table dia | 9-3/4" | 245mm |
| Cross travel f table(X Axis) | 6" | 150mm |
| Longitudina travel of table(Y Axis) | 3" | 75mm |
| Maximum dia of wheel(outer diaxthicknessxhole dia) | 5"x2"1-1/4" | 125x52x32mm |
| Tilt adjustment for wheelhead | +35°-5° | +35°-5° |
| Air bearing swivel | 360° | 360° |
| Air bearing stroke | 10" | 250mm |
| Table infeed graduaton | 0.001 | 0.02mm |
| Air pressure | ≥0.63MPa | ≥0.63MPa |
| Pipe joint diameter | Z1/4" | Z1/4" |
| Collet fit for spindle | 5C | 5C |
| Parallelsm between two tables | 0.01/100mm | 0.01/100mm |
| Parallelism of sleeve center line to worktable | 0.01/100mm | 0.01/100mm |
| Motor speed | 3450/2580rpm | 2800rpm |
| motor voltage | 110v/1Phase | 230V |
| motor power | 1/3HP | 0.25KW |
| motor frenquency | 60HZ/50HZ | 50HZ |
Having opening type structure,adding opration space,enlarging griding range,this sharpener can grind helical edge and cutting edge of miller,also can grind relief edge of taper,drill,reamer and ball end mill by changing different attachment.The main part of this sharpener is made of excellent aluminium alloy it has many features such as light weight,resist rot etc.It takes up the advanced international technique of air floating,the spindle rotate flexibly after being pressed,reduce fricton to lowest.
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
