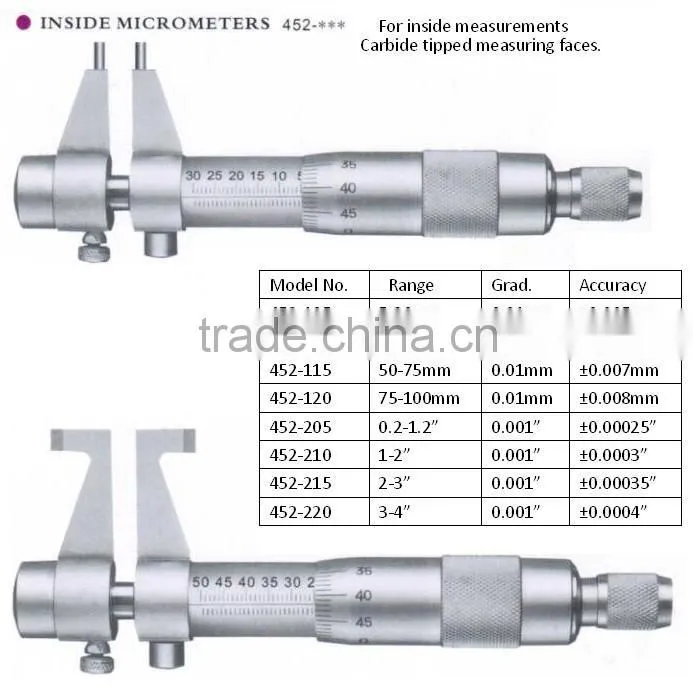

Help CenterInside Micrometers
Related Products
Model No. |
Range |
Grad. |
Accuracy |
424-110 |
25-50mm |
0.01mm |
±4µm |
424-115 |
50-75mm |
0.01mm |
±5µm |
424-120 |
75-100mm |
0.01mm |
±5µm |
424-125 |
100-125mm |
0.01mm |
±6µm |
424-130 |
125-150mm |
0.01mm |
±6µm |
424-135 |
150-175mm |
0.01mm |
±7µm |
424-140 |
175-200mm |
0.01mm |
±7µm |
424-145 |
200-225mm |
0.01mm |
±8µm |
424-150 |
225-250mm |
0.01mm |
±8µm |
424-155 |
250-275mm |
0.01mm |
±9µm |
424-160 |
275-300mm |
0.01mm |
±9µm |
Model No. |
Range |
Grad. |
Accuracy |
425-110 |
1-2” |
0.001” |
±0.00024” |
425-115 |
2-3” |
0.001” |
±0.00024” |
425-120 |
3-4” |
0.001” |
±0.00024” |
425-125 |
4-5” |
0.001” |
±0.00024” |
425-130 |
5-6” |
0.001” |
±0.00031” |
425-135 |
6-7” |
0.001” |
±0.00031” |
425-140 |
7-8” |
0.001” |
±0.00031” |
425-145 |
8-9” |
0.001” |
±0.00035” |
425-150 |
9-10” |
0.001” |
±0.00035” |
425-155 |
10-11” |
0.001” |
±0.00035” |
425-160 |
11-12” |
0.001” |
±0.00035” |

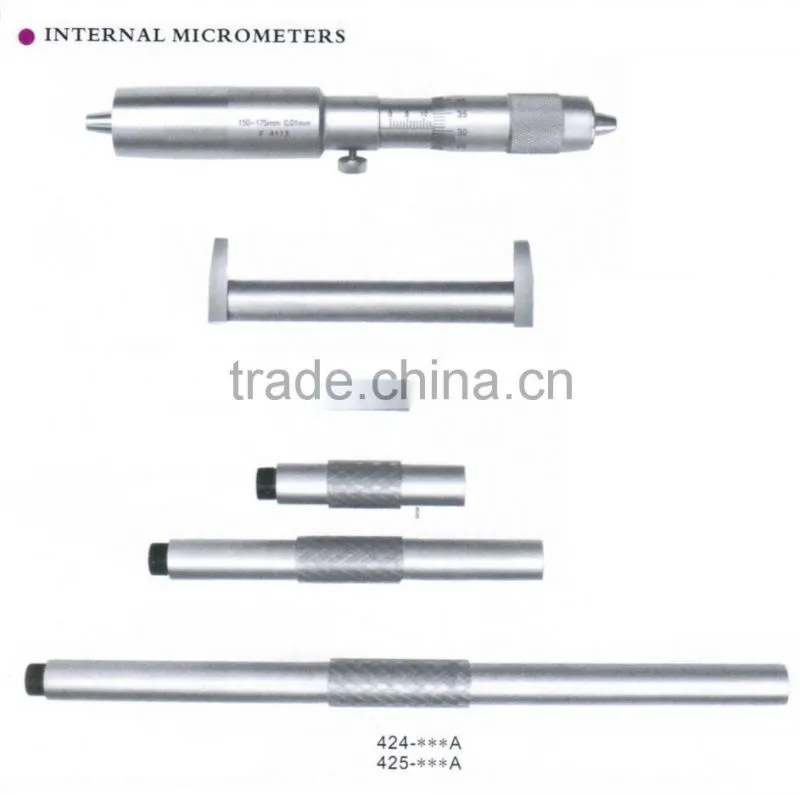

Internal Micrometers is for measuring inside diameter
Precison rods can gurantee the accuracy of measurement be free of the influence of threads resultant of forces
Different sizes of interna micrometers can be supplied upon request of customers
Accuracy :±(3+N+L/50)µm
N=number of rods
L=maximum measuring range mm
Model No. |
Range |
Grad. |
Route |
Length of rods |
424-165A |
300-500mm |
0.01mm |
25mm |
25,50,100mm |
424-170A |
300-800mm |
0.01mm |
25mm |
25,50,100(2pcs),200mm |
424-175A |
300-1300mm |
0.01mm |
25mm |
25,50,100,200,300,400mm |
424-180A |
300-1600mm |
0.01mm |
25mm |
25,50,100,200(2pcs),300,400mm |
424-185A |
300-2200mm |
0.01mm |
25mm |
25,50,100(2pcs),200(2pcs),300,400,500mm |
|
1000-5000mm |
|
25mm |
As per customer’s requirement |
|
|
|
|
|
