Micron Dial Test Indicators
US$ 12 - 58
/ Piece
1 Piece(Min. Order)
- QINGDAO/XINGANG
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | micron dial test indicators |
Product Description

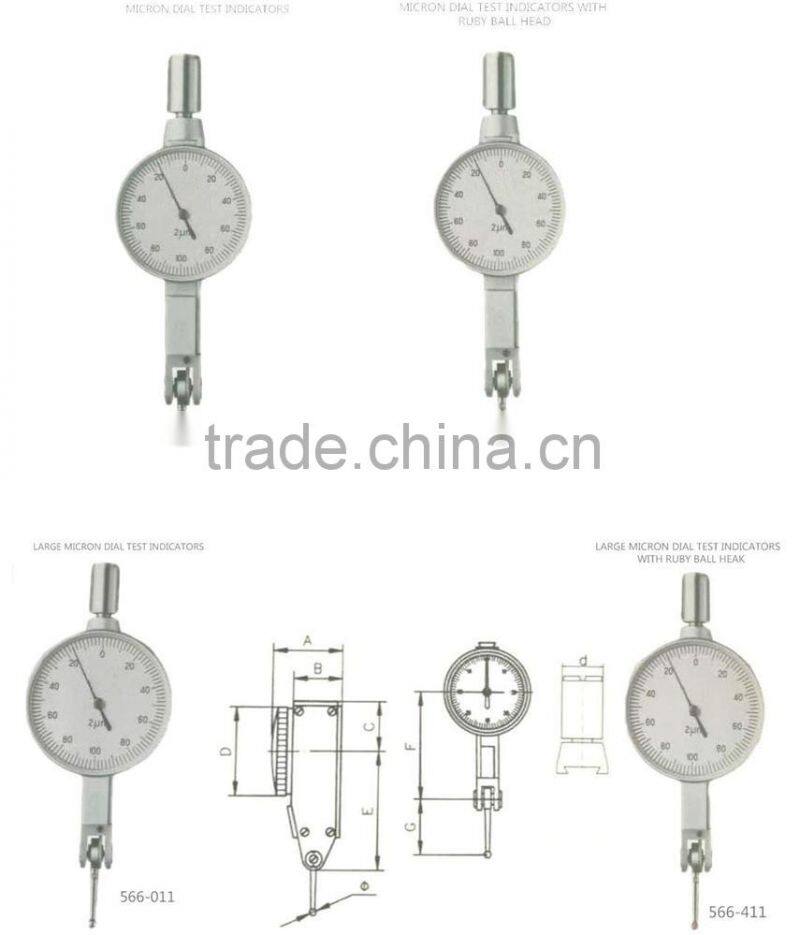

| Item No. | Range(mm) | Grad.(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Ø (mm) | d(mm) | Accuracy | Remarks | |
| 566-001 | 0-0.2 | 0.002 | 24 | 17.3 | 16.5 | Ø31 | 42.7 | 38.7 | 16 | 2.5 | 4/8 | 3um | ||
| 566-401 | 0-0.2 | 0.002 | 24 | 17.3 | 16.5 | Ø31 | 42.7 | 38.7 | 16 | 2 | 4/8 | 3um | ruby ball head | |
| 566-011 | 0-0.2 | 0.002 | 24 | 17.3 | 16.5 | Ø38.4 | 42.7 | 38.7 | 16 | 2.5 | 4/8 | 3um | ||
| 566-411 | 0-0.2 | 0.002 | 24 | 17.3 | 16.5 | Ø38.4 | 42.7 | 38.7 | 16 | 2 | 4/8 | 3um | ruby ball head | |

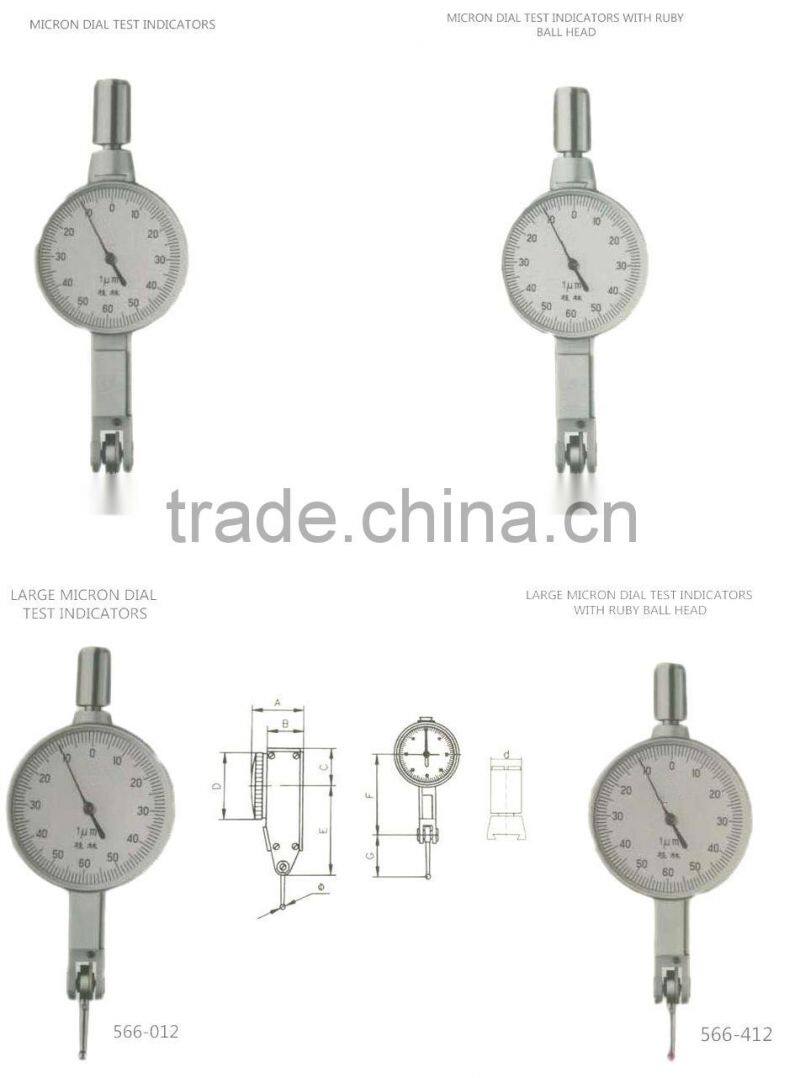

| Item No. | Range(mm) | Grad.(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Ø (mm) | d(mm) | Accuracy | Remarks | |
| 566-002 | 0-0.12 | 0.001 | 24 | 17.3 | 16.5 | Ø31 | 42.7 | 38.7 | 16 | 2.5 | 4/8 | 3um | ||
| 566-402 | 0-0.12 | 0.001 | 24 | 17.3 | 16.5 | Ø31 | 42.7 | 38.7 | 16 | 2 | 4/8 | 3um | ruby ball head | |
| 566-012 | 0-0.12 | 0.001 | 24 | 17.3 | 16.5 | Ø38.4 | 42.7 | 38.7 | 16 | 2.5 | 4/8 | 3um | ||
| 566-412 | 0-0.12 | 0.001 | 24 | 17.3 | 16.5 | Ø38.4 | 42.7 | 38.7 | 16 | 2 | 4/8 | 3um | ruby ball head | |
| 566-003 | 0-0.12 | 0.001 | 24 | 17.3 | 16.5 | Ø31 | 42.7 | 38.7 | 9.5 | 2.5 | 4/8 | 3um | ||
| 566-403 | 0-0.12 | 0.001 | 24 | 17.3 | 16.5 | Ø31 | 42.7 | 38.7 | 9.5 | 2 | 4/8 | 3um | ruby ball head | |
| | |
| |
