Three Point Interal Micrometers

Three Point Interal Micrometers thumbnail-1
Three Point Interal Micrometers photo-1
US$ 34 - 62 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ZHONGYI
Model Number:
three point inside micrometer
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name ZHONGYI
Model Number three point inside micrometer

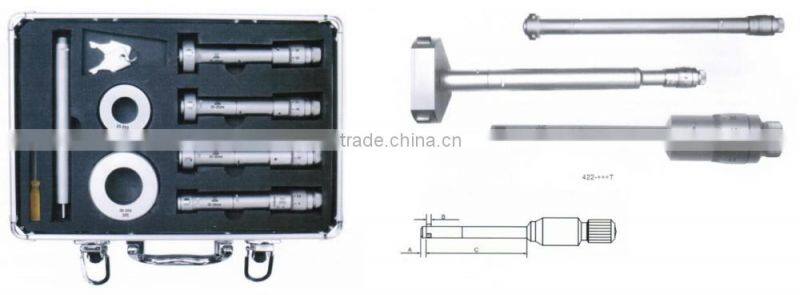

three point interal micrometers

three point interal micrometers

three point interal micrometers

1. For through hole measuring

2.With extension rod for deep hole measuring

3.With set ring under 100mm

4.Contact points can be carbide or hardened steel

  Size for single:



 Item No. Range(mm) Grad.(mm) Accuracy Setting rings(mm) Extension rods A(mm) B(mm) C(mm)
422-006 6-8 0.001 ±0.004  8  5.8x100  1.5 2.5  52
422-008 8-10 0.001 ±0.004  8  5.8x100  1.5 2.5  52
422-010 10-12 0.001 ±0.004  10  5.8x100  1.5  2.5  52
422-011 11-14 0.005 ±0.004  14 10.8x100  2 4.5   78
422-014 14-17 0.005 ±0.004  14 10.8x100  2  4.5  78
422-017 17-20 0.005 ±0.004  20 10.8x100  2  4.5  78
422-020 20-25 0.005 ±0.004  20 17x150  7  7  82
422-025 25-30 0.005 ±0.004  30 17x150  7  7  82
422-030 30-35 0.005 ±0.004  30 17x150  7  7  82
422-031 30-40 0.005 ±0.004  30 23.5x150  2.5  11  97
422-035 35-40 0.005 ±0.004  40 17x150  7  7  82
422-040 40-50 0.005 ±0.005  40 23.5x150  2.5  11  97
422-050 50-60 0.005 ±0.005  60 23.5x150  4  13  100
422-060 60-70 0.005 ±0.005  60 23.5x150  4  13  100
422-070 70-80 0.005 ±0.005  80 23.5x150  4  13  100
422-080 80-90 0.005 ±0.005  80 23.5x150  4  13  100
422-090 90-100 0.005 ±0.005  90 23.5x150  4  13  100

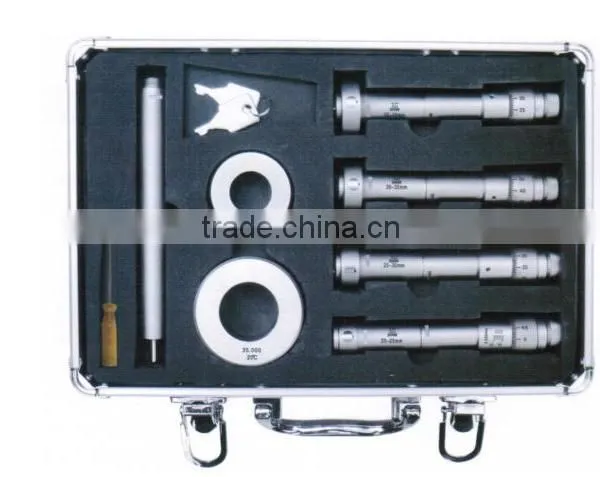

Size for sets:

Item No. Range(mm) Individual range(mm)             Setting rings(mm) Pcs/set  Extension rods
422-406 6-12 6-8,8-10,10-12

Ø8,Ø10

  3  5.8x100
422-411 11-20 11-14,14-17,17-20   Ø14,Ø20  3  10.8x100
422-420 20-40 20-25,25-30,30-25,35-40   Ø25,Ø35  4  17x150
422-430 30-50 30-40,40-50 Ø40  2  17x150
422-450 50-100 50-60,60-70,70-80,80-90,90-100 Ø60,Ø80  Ø90

  		 5  17x150
