Carbone Steel or Stainless Steel Vernier Calipers Type I

Carbone Steel or Stainless Steel Vernier Calipers Type I thumbnail-1
Carbone Steel or Stainless Steel Vernier Calipers Type I thumbnail-2
Carbone Steel or Stainless Steel Vernier Calipers Type I photo-1
Carbone Steel or Stainless Steel Vernier Calipers Type I photo-2
US$ 15 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ZHONGYI
Model Number:
type I ,
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name ZHONGYI
Model Number type I ,

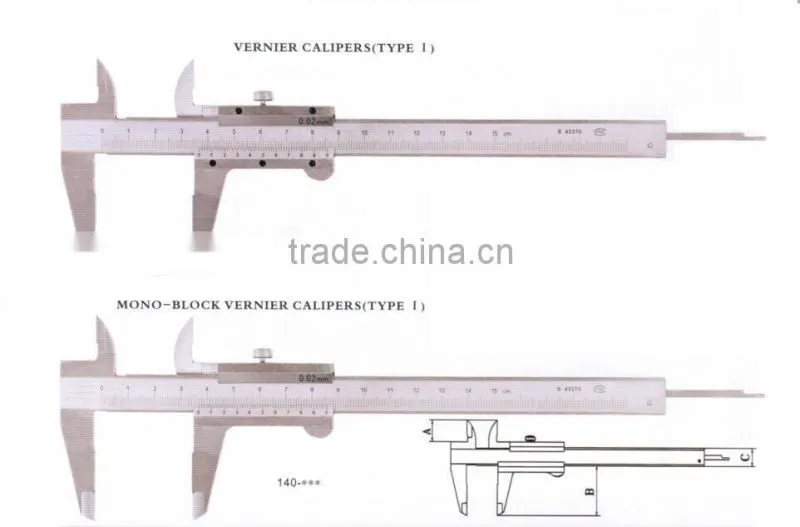

carbone steel or stainless steel vernier calipers type I

carbone steel or stainless steel vernier calipers type I

carbone steel or stainless steel vernier calipers type I

1. made of stainless steel or carbon steel

2.can measure OD,ID and depth

3.with thumb roller for range 200mm or more

4.four-way  measurements for range 150mm or more

5.150mm vernier calipers can be three-way measurements according to requirements

Item NO.

(stainless steel)

Item No.

(carbon steel)

Item No.

(stainless steel)

Item No.

(carbon steel )

Rang

mm

Grad.

mm

A

mm

B

mm

C

mm

Accuracy

   mm
141-510S 141-510C  140-510S  140-510C  0-100  0.05 12.5  30  13  ±0.05
141-515S 141-515C  140-515S  140-515C  0-125  0.05 17.5  40  14.5
141-520S 141-520C  140-520S  140-520C  0-150  0.05 17.5  40  15.5
141-525S 141-525C  140-525S  140-525C  0-200  0.05  18.8  50  17
141-530S 141-530C  140-530S  140-530C  0-250  0.05  22.8  65  17    ±0.06
141-535S 141-535C   140-535S  140-535C  0-300  0.05 22.8  65  17
141-110S 141-110C   140-110S  140-110C  0-100  0.02  12.5  30  13   ±0.02
141-115S 141-115C  140-115S  140-115C  0-125  0.02  17.5  40  14.5   ±0.03
141-120S 141-120C   140-120S  140-120C  0-150  0.02  17.5  40  15.5
141-125S 141-125C  140-125S  140-125C  0-200  0.02  18.8  50  17
141-130S 141-130C   140-130S  140-130C  0-250  0.02  22.8  65  17    ±0.04
141-135S 141-135C   140-135S  140-135C  0-300  0.02  22.8  65  17
141-150S 141-150C   140-150S  140-150C  0-500  0.02  38.5  100  25   ±0.05
141-610S 141-610C   140-610S  140-610C  0-100  0.05/1/128"  12.5  30  13   ±0.05
141-615S 141-615C   140-615S  140-615C  0-125  0.05/1/128"  17.5  40  14.5
141-620S 141-620C   140-620S  140-620C  0-150  0.05/1/128"  17.5  40  15.5
141-625S 141-625C   140-625S  140-625C  0-200  0.05/1/128"  18.8  50  17
141-630S 141-630C   140-630S  140-630C  0-250  0.05/1/128"  22.8  65  17    ±0.06
141-635S 141-635C   140-635S  140-635C  0-300  0.05/1/128"  22.8  65  17
141-210S 141-210C   140-210S  140-210C  0-100  0.02/0.001"  12.5  30  13   ±0.02
141-215S 141215C   140-215S  140-215C  0-125  0.02/0.001"  17.5  40  14.5    ±0.03

141-220S 141-220C   140-220S  140-220C  0-150  0.02/0.001"  17.5  40  15.5
141-225S 141-225C   140-225S  140-225C  0-200  0.02/0.001"  18.8  50  17
141-230S 141-230C   140-230S  140-230C  0-250  0.02/0.001"  22.8  65  17    ±0.04
141-235S 141-235C   140-235S  140-235C  0-300  0.02/0.001"  22.8  65  17
141-250S 141-250C  140-250S  140-250C  0-500  0.02/0.001"  38.5  100  25   ±0.05

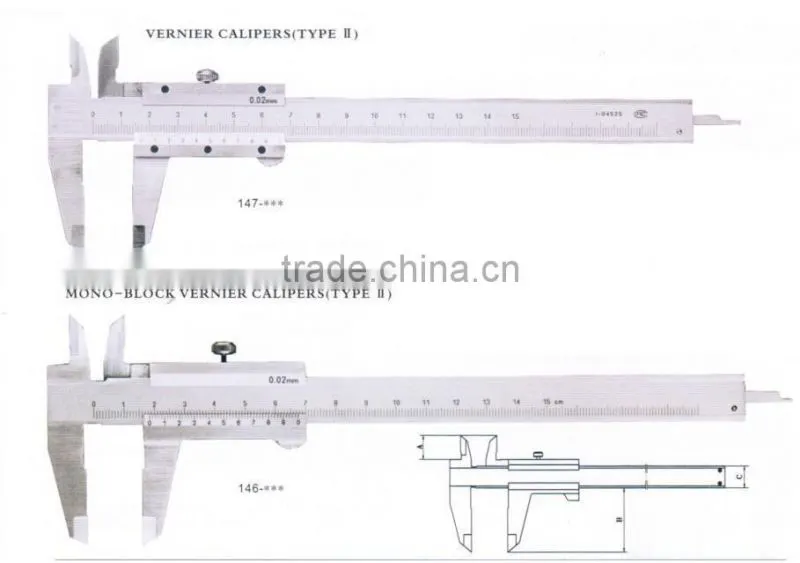

 carbone steel or stainless steel vernier calipers type I



1.madeof  sttainless steel or carbon steel

2.can measure OD,ID,DEPTH and step

3.with thumb roller for range 200mm or more

4.depth measuring bar is optional

      Item No.

(stainless steel)

     Item No.

(carbon steel)

      Item No.

(stainless steel)

    Item No.

(carbon steel)

Range

(mm)

Grad.

(mm)

A

(mm)

B

(mm)

C

(mm)

Accuracy

(mm)
147-510s 147-510c 146-510s 146-510c  0-100  0.05  12.5  30  13   ±0.05
147-520s 147-520c 146-520s 146-520c  0-150  0.05  17.5  40  14.5
147-525s 147-525c 146-525s 146-525c  0-200  0.05  18.8  50  17
147-530s 147-530c 146-530s 146-530c  0-250  0.05  22.8  50  17    ±0.06
147-535s 147-535c 146-535s 146-535c  0-300  0.05  22.8  65  17
147-550s 147-550c 146-550s 146-550c  0-500  0.05  38.5  100  25   ±0.07
147-555s 147-555c 146-555s 146-555c  0-600  0.05  38.5  100  25   ±0.08
147-110s 147-110c 146-110s 146-110c  0-100  0.02  12.5  30  13   ±0.02
147-120s 147-120c 146-120s 146-120c  0-150  0.02  17.5  40  14.5    ±0.03
147-125s 147-125c 146-125s 146-125c  0-200  0.02  18.8  50  17
147-130s 147-130c 146-130s 146-130c  0-250  0.02  22.8  50  17    ±0.04
147-135s 147-135c 146-135s 146-135c  0-300  0.02  22.8  65  17
147-150s 147-150c 146-150s 146-150c  0-500  0.02  38.5  100  25    ±0.05
147-155s 147-155c 146-155s 146-155c  0-600  0.02  38.5  100  25
147-610s 147-610c 146-610s 146-610c  0-100  0.05/1/128"  12.5  30  13     ±0.05
147-620s 147-620c 146-620s 146-620c  0-150  0.05/1/128"  17.5  40  14.5
147-625s 147-625c 146-625s 146-625c  0-200  0.05/1/128"  18.8  50  17
147-630s 147-630c 146-630s 146-630c  0-250  0.05/1/128"  22.8  50  17    ±0.06
147-635s 147-635c 146-635s 146-635c  0-300  0.05/1/128"  22.8  65  17
147-650s 147-650c 146-650s 146-650c  0-500  0.05/1/128"  38.5  100  25   ±0.07
147-655s 147-655c 146-655s 146-655c  0-600  0.05/1/128"  38.5  100  25   ±0.08
147-210s 147-210c 146-210s 146-210c  0-100  0.02/0.001"  12.5  30  13   ±0.02
147-220s 147-220c 146-220s 146-220c  0-150  0.02/0.001"  17.5  40  14.5    ±0.03
147-225s 147-225c 146-225s 146-225c  0-200  0.02/0.001"  18.8  50  17
147-230s 147-230c 146-230s 146-230c  0-250  0.02/0.001"  22.8  50  17    ±0.04
147-235s 147-235c 146-235s 146-235c  0-300  0.02/0.001"  22.8  65  17
147-250s 147-250c 146-250s 146-250c  0-500  0.02/0.001"  38.5  100  25    ±0.05
147-255s 147-255c 146-255s 146-255c  0-600  0.02/0.001"  38.5  100  25

carbone steel or stainless steel vernier calipers type I

carbone steel or stainless steel vernier calipers type I carbone steel or stainless steel vernier calipers type I carbone steel or stainless steel vernier calipers type I



carbone steel or stainless steel vernier calipers type I carbone steel or stainless steel vernier calipers type I

 carbone steel or stainless steel vernier calipers type I

 carbone steel or stainless steel vernier calipers type I
