Home > Products > cnc tool series > BT End Mill Holders
BT End Mill Holders
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | BT |
Product Description

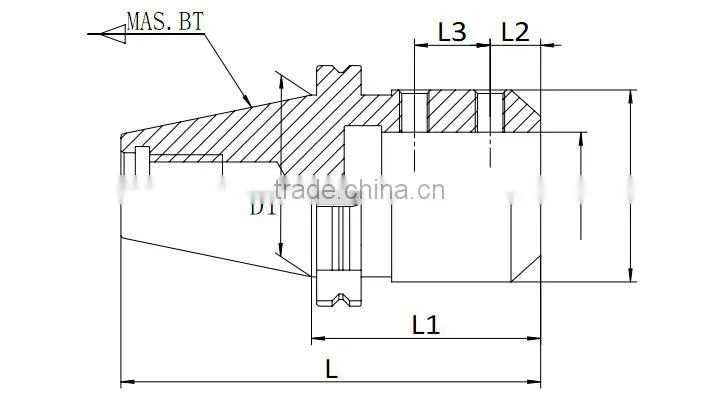

Model No. BTxd-L1 | L | D | D1 | L2 | L3 | WEIGHT(kg) |
BT30x6-50 | 98.4 | 25 | 31.75 | 18 |
| 0.66 |
BT30x6-60 | 108.4 | 25 | 31.75 | 18 |
| 0.72 |
BT30x8-60 | 108.4 | 28 | 31.75 | 18 |
| 0.80 |
BT30x10-60 | 108.4 | 35 | 31.75 | 20 |
| 0.83 |
BT30x10-80 | 128.4 | 35 | 31.75 | 20 |
| 0.83 |
BT30x12-60 | 108.4 | 42 | 31.75 | 22.5 |
| 0.88 |
BT30x14-60 | 108.4 | 44 | 31.75 | 22.5 |
| 1.02 |
BT30x16-75 | 123.4 | 48 | 31.75 | 24 |
| 1.04 |
BT30x18-75 | 123.4 | 50 | 31.75 | 24 |
| 1.26 |
BT30x20-75 | 123.4 | 52 | 31.75 | 25 |
| 1.36 |
BT30x25-90 | 138.4 | 65 | 31.75 | 24 | 25 | 1.50 |
BT40x6-50 | 115.4 | 25 | 44.45 | 18 |
| 0.96 |
BT40x6-60 | 125.4 | 25 | 44.45 | 18 |
| 0.98 |
BT40x8-50 | 115.4 | 28 | 44.45 | 18 |
| 1.00 |
BT40x10-63 | 128.4 | 35 | 44.45 | 20 |
| 1.08 |
BT40x12-63 | 128.4 | 42 | 44.45 | 22.5 |
| 1.20 |
BT40x14-63 | 128.4 | 44 | 44.45 | 22.5 |
| 1.22 |
BT40-16x63 | 128.4 | 48 | 44.45 | 24 |
| 1.24 |
BT40x16-70 | 135.4 | 48 | 44.45 | 24 |
| 1.30 |
BT40x18-63 | 128.4 | 50 | 44.45 | 24 |
| 1.36 |
BT40x20-63 | 128.4 | 52 | 44.45 | 25 |
| 1.36 |
BT40x20-70 | 135.4 | 52 | 44.45 | 25 |
| 2.10 |
BT40x25-90 | 155.4 | 65 | 44.45 | 24 | 25 | 2.07 |
BT40x25-100 | 165.4 | 65 | 44.45 | 24 | 25 | 2.08 |
BT40x32-100 | 165.4 | 72 | 44.45 | 24 | 28 | 2.25 |
BT40x32-110 | 175.4 | 72 | 44.45 | 24 | 28 | 2.30 |
BT40x40-120 | 185.4 | 90 | 44.45 | 30 | 32 | 2.50 |
BT40x40-140 | 205.4 | 90 | 44.45 | 30 | 32 | 2.80 |
BT50x6-63 | 164.8 | 25 | 69.85 | 18 |
| 3.20 |
BT50x8-63 | 164.8 | 28 | 69.85 | 18 |
| 3.23 |
BT50x10-63 | 164.8 | 35 | 69.85 | 20 |
| 3.24 |
BT50x12-80 | 181.8 | 42 | 69.85 | 22.5 |
| 3.36 |
BT50x16-80 | 181.8 | 48 | 69.85 | 24 |
| 3.48 |
BT50x20-80 | 181.8 | 52 | 69.85 | 25 |
| 3.52 |
BT50x25-100 | 201.8 | 65 | 69.85 | 24 | 25 | 4.28 |
BT50x25-105 | 206.8 | 65 | 69.85 | 24 | 25 | 4.30 |
BT50x25-150 | 251.8 | 65 | 69.85 | 24 | 25 | 4.35 |
BT50x25-200 | 301.8 | 65 | 69.85 | 24 | 25 | 4.40 |
BT50x32-100 | 201.8 | 72 | 69.85 | 24 | 28 | 4.44 |
BT50x32-105 | 206.8 | 72 | 69.85 | 24 | 28 | 4.56 |
BT50x40-115 | 216.8 | 90 | 69.85 | 30 | 32 | 4.58 |
BT50x40-120 | 221.8 | 90 | 69.85 | 30 | 32 | 4.58 |
BT50x50-150 | 251.8 | 100 | 69.85 | 35 | 35 | 4.90 |
| | |
| |
