Home > Products > cnc tool series > BT Shell Mill Arbor

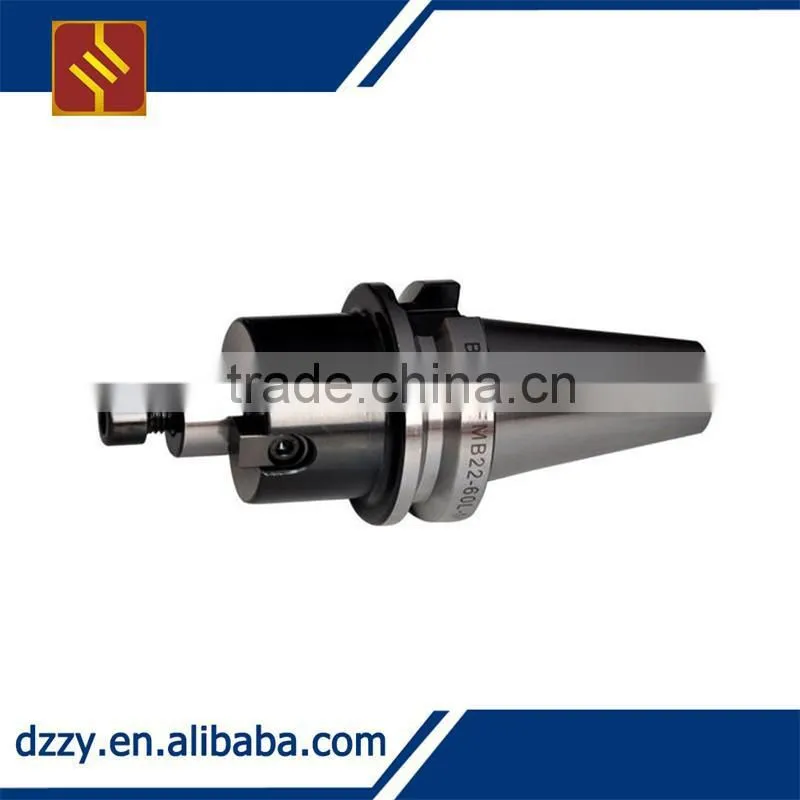

BT Shell Mill Arbor
- QINGDAO
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | ZHONGYI | |
| Model Number | BT |
Product Description
| |

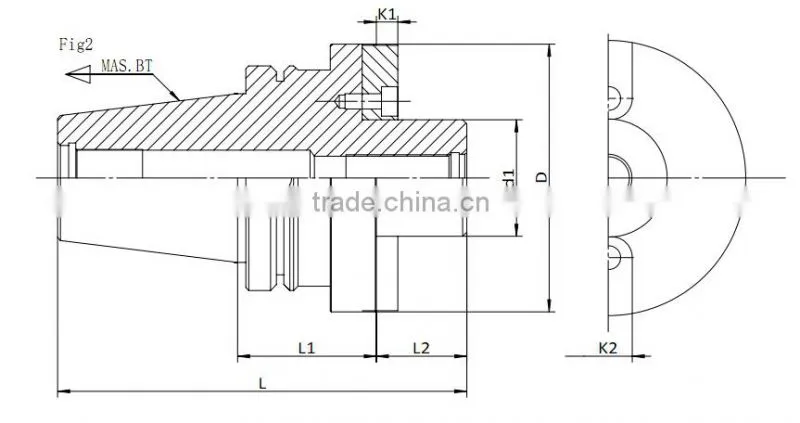

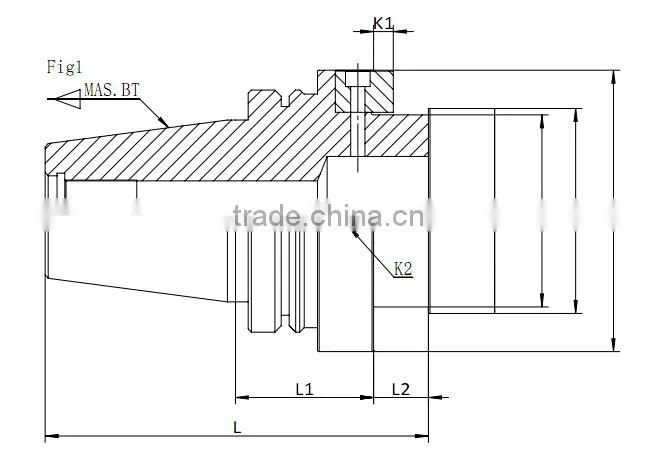

Model No. | L | L1 | L2 | D | d1 | d2 | K1 | K2 | Wt.(kg) |
BT30XFMB22-45 | 114.4 | 45 | 18 | 50 | 22 | 26 | 4.8 | 10 | 0.85 |
BT30XFMB22-60 | 126.4 | 60 | 18 | 50 | 22 | 26 | 4.8 | 10 | 1.25 |
BT30XFMB27-45 | 113.4 | 45 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 1.20 |
BT30XFMB27-60 | 128.4 | 60 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 1.35 |
BT30XFMB32-45 | 115.4 | 45 | 22 | 78 | 32 | 41 | 6.8 | 14 | 1.35 |
BT40XFMB22-45 | 128.4 | 45 | 18 | 48 | 22 | 26 | 4.8 | 10 | 1.45 |
BT40XFMB22-60 | 143.4 | 60 | 18 | 48 | 22 | 26 | 4.8 | 10 | 1.70 |
BT40XFMB22-100 | 173.4 | 100 | 18 | 48 | 22 | 26 | 4.8 | 10 | 2.20 |
BT40XFMB27-45 | 130.4 | 45 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 1.60 |
BT40XFMB27-60 | 145.4 | 60 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 2.00 |
BT40XFMB27-90 | 175.4 | 90 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 2.30 |
BT40XFMB27-105 | 190.4 | 105 | 20 | 60 | 27 | 31.5 | 6.8 | 12 | 2.50 |
BT40XFMB32-45 | 132.4 | 45 | 22 | 78 | 32 | 41 | 6.8 | 12 | 1.75 |
BT40XFMB32-60 | 147.4 | 60 | 22 | 78 | 32 | 41 | 8.3 | 14 | 2.10 |
BT40XFMB40-60 | 150.4 | 60 | 25 | 80 | 40 | 48 | 4.8 | 14 | 2.80 |
BT50XFMB22-45 | 164.8 | 45 | 18 | 48 | 22 | 26 | 4.8 | 16 | 4.50 |
BT50XFMB22-90 | 209.8 | 90 | 18 | 48 | 22 | 26 | 4.8 | 10 | 5.10 |
BT50XFMB22-150 | 369.8 | 150 | 18 | 48 | 22 | 26 | 4.8 | 10 | 6.80 |
BT50XFMB27-50 | 171.8 | 50 | 20 | 60 | 27 | 31.5 | 5.8 | 10 | 7.00 |
BT50XFMB27-90 | 211.8 | 90 | 20 | 60 | 27 | 31.5 | 5.8 | 10 | 8.00 |
BT50XFMB27-150 | 271.8 | 150 | 20 | 60 | 27 | 31.5 | 5.8 | 12 | 7.50 |
BT50XFMB32-50 | 173.8 | 50 | 22 | 78 | 32 | 41 | 6.8 | 12 | 9.50 |
BT50XFMB32-90 | 213.8 | 90 | 22 | 78 | 32 | 41 | 6.8 | 12 | 11.0 |
BT50XFMB40-50 | 176.8 | 50 | 25 | 89 | 40 | 48 | 8.3 | 12 | 5.70 |
BT50XFMB40-90 | 216.8 | 90 | 25 | 89 | 40 | 48 | 8.3 | 14 | 5.80 |
BT50XFMB40-105 | 231.8 | 105 | 25 | 98 | 40 | 48 | 8.3 | 14 | 5.20 |
BT50XFMB40F-75 | 202.8 | 75 | 26 | 110 | 40 | --- | 8.3 | 16 | 6.00 |
BT50XFMB60-75 | 201.8 | 75 | 25 | 140 | 60 | --- | 12.5 | 16 | 7.20 |
| | |
| |
