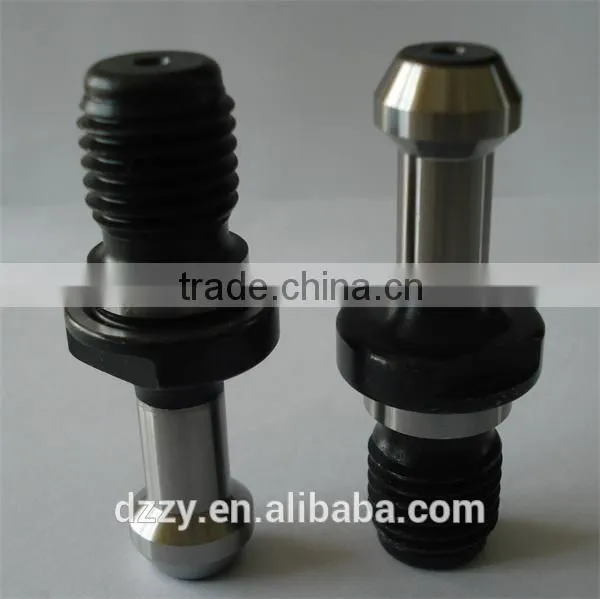

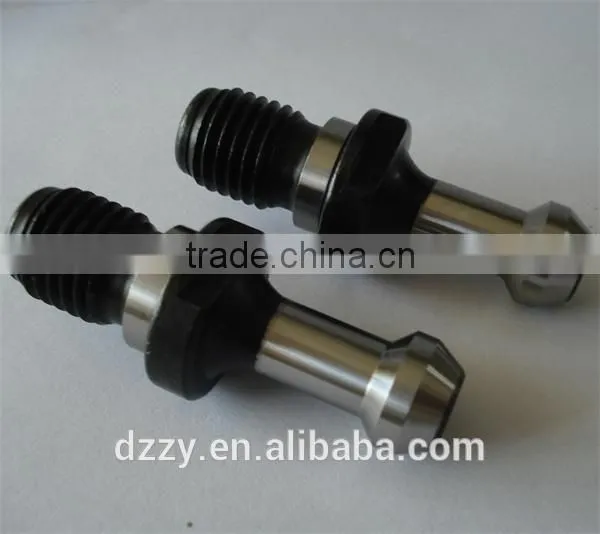

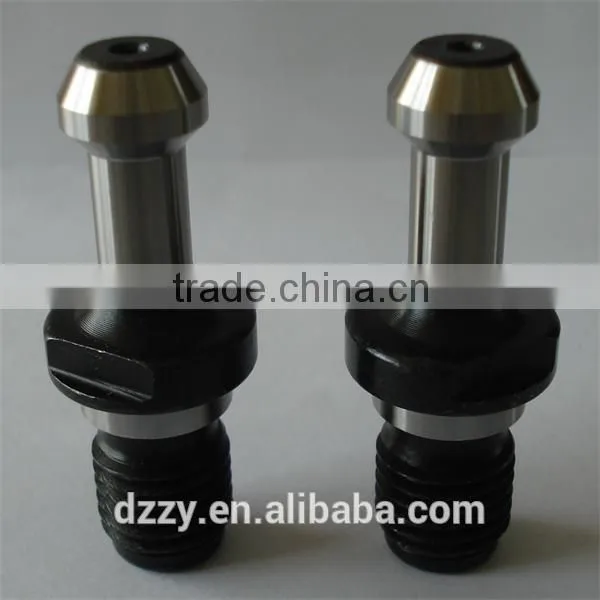

Help CenterPull Stud by BT Standard MAS403-1982
Related Products
Specifications
Pull stud by BT standard MAS403-19821.1)material: alloy steel
2).Size:BT30,BT40,BT45,BT50
3)coolant or without coolant
pull stud by BT standard MAS403-1982:
1)material:high quality alloy steel
2)Hardness:HRC44-48 or HRC48-52 as per material
3)model type:BT
4)The size details as below
:
| model | D | D1 | D2 | M | L | L1 | L2 | H | H1 | ANGLE |
| 30 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 5 | 2.5 | 45º 60º 90º |
| 40 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 6 | 3 | 45º 60º 90º |
| 45 | 21 | 14 | 19 | M20 | 70 | 40 | 31 | 8 | 4 | 45º 60º 90º |
| 50 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 10 | 5 | 45º 60º 90º |
We are the leading supplier of machinery accessories in China.We can supply varouis machinery accessories such as pull stud,Er collet,Sealed collet,tap collet,R8 collet,5c collet,OZ collet,tool holder, vise etc
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 8(eight) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
