Cnc machine tool Din69872 pull stud:
1.material:high quality alloy steel
2.hardness:HRC44-48 or HRC48-52 as per different material
3.through coolant or without through coolant
4.sizes:sk30,sk40,sk45,50 .

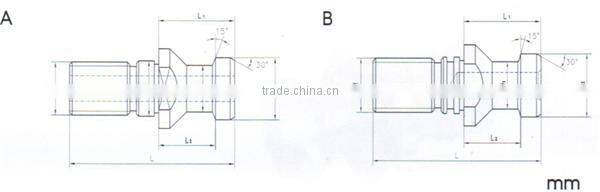

| Model no. | D | D1 | D2 | M | L | L1 | L2 |
| 30A(B) | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
| 40A(B) | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
| 45A(B) | 21 | 17 | 23 | M20 | 65 | 30 | 23 |
| 50A(B) | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 10(ten) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
