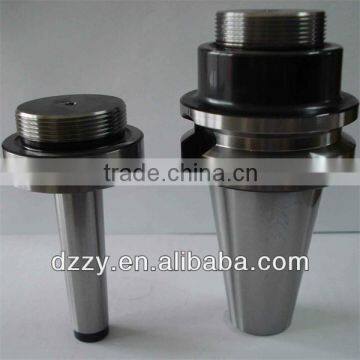

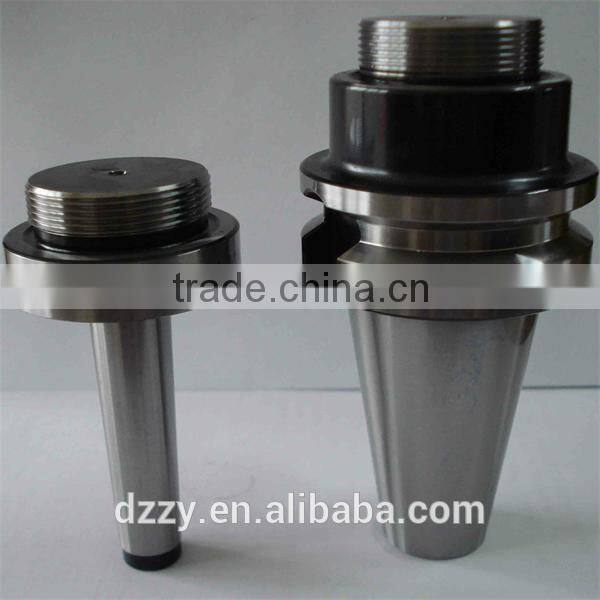

F1 boring shank:
1.Material:high quality alloy steel.
2.F1 Boring shank standard:BT,MT,Din69871,CAT

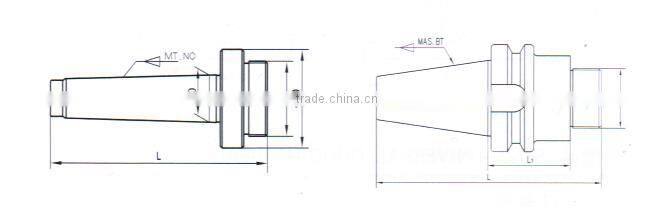

The sizes and specification is given as below:
| model no. | shank | L(mm) | thread M | model no. | shank | L(mm) | Thread M |
| F1-MT2-M | MT2 | 93 | 7/8"-20 1-1/2"-18 | F1-32-M | 32 | 117 | 7/8"-20 1-1/2"-18 |
| F1-MT3-M | MT3 | 108 | F1-40-M | 40 | 117 | ||
| F1-MT4-M | MT4 | 110 | F1-5/8-M | 5/8" | 97 | ||
| F1-MT5-M | MT5 | 128 | F1-3/4-M | 3/4" | 112 | ||
| F1-MT6-M | MT6 | 133 | F1-7/8-M | 7/8" | 127 | ||
| F1-R8-M | R8 | 154 | F1-1-M | 1" | 137 | ||
| F1-NT30-M | NT30 | 160 | F1-1-1/4-M | 1-1/4" | 167 | ||
| F1-NT40-M | NT40 | 186 | F1-1-1/2-M | 1-1/2" | 197 | ||
| F1-NT50-M | NT50 | 214 | F1-1-3/4-M | 1-3/4" | 227 | ||
| F1-16-M | 16 | 117 | BT40XM-45 | BT40 | 122.4 | ||
| F1-20-M | 20 | 117 | DIN69871.40XM-40 | DIN69871.40 | 120.4 | ||
| F1-25-M | 25 | 117 | CAT40XM-50 | CAT40 | 130 |

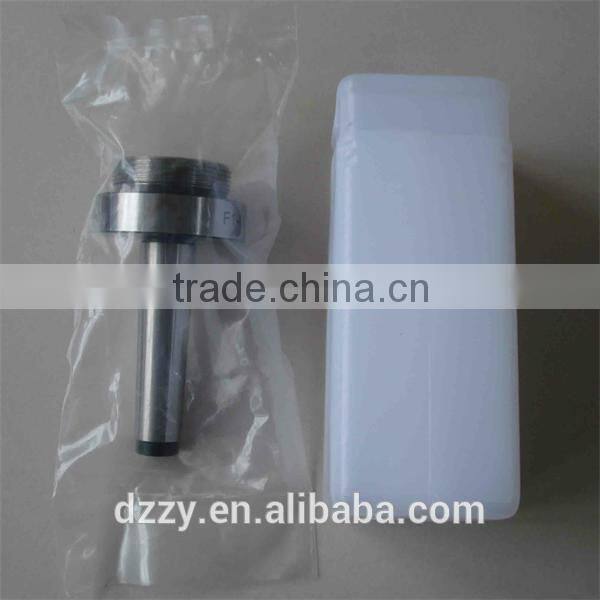

packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.Packing photoes:
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or courier according to the requrest of customers.

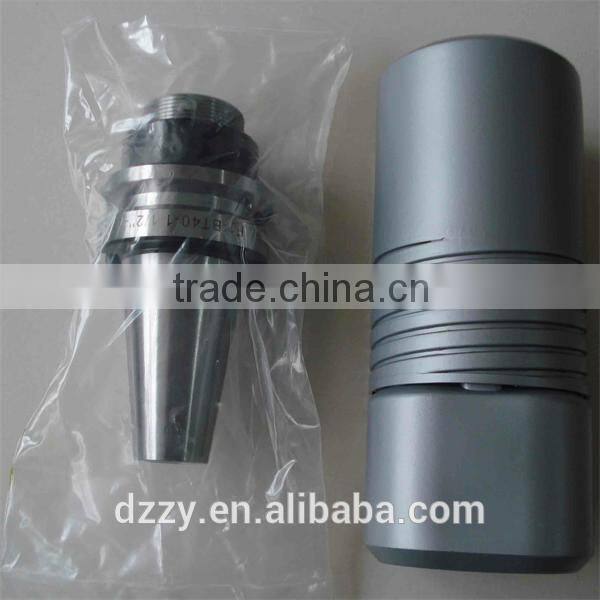

packaging way:Inner packing is by plastic box or paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Our Services and reputation: we have been the supplier at Alibaba for 10(ten) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
